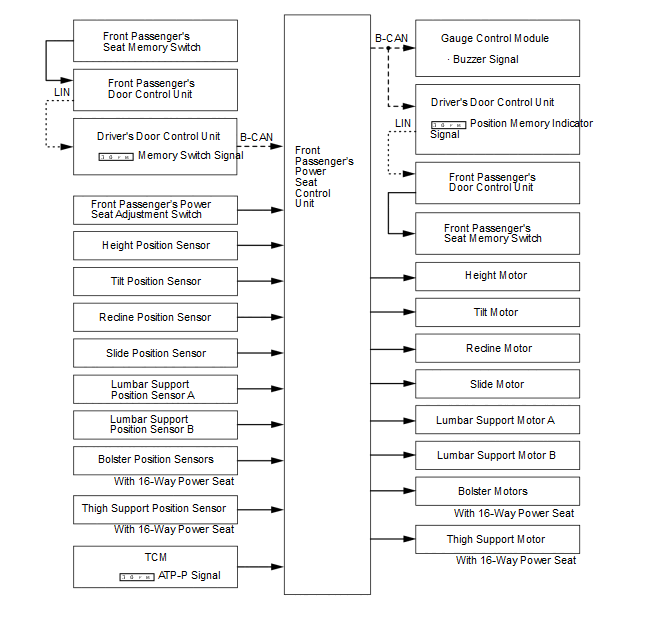

Seat Position Memory System - System Diagram (With Seat Position Memory System)

For locations of each component on vehicle, refer to Component Location Index

GHH659638

Courtesy of HONDA, U.S.A., INC.
