Power Mirrors System Description

Mirror Defogger Function

Courtesy of HONDA, U.S.A., INC.

Manual Function

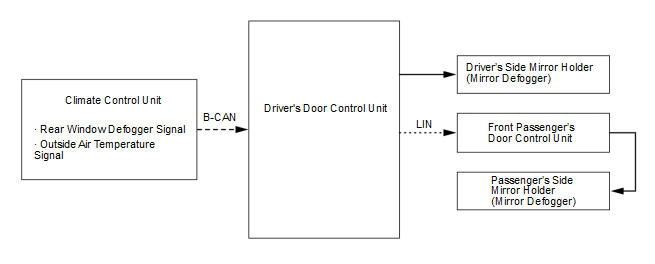

The mirror defogger is controlled by the driver's door control unit. When the vehicle is in the ON mode and the rear window defogger/mirror defogger switch is pressed, the climate control unit sends the defogger ON signal as a B-CAN signal to the driver's door control unit. The driver's door control unit operates the driver's side mirror defogger and sends the defogger ON signal via the LIN line to the front passenger's door control unit to operate the passenger's side mirror defogger.

Auto Mirror Defogger Function

When the driver's door control unit receives a signal that the outside air temperature is 41 deg.F (5 deg.C) or below from the climate control unit, the driver's door control unit automatically turns on the mirror defoggers within 10 seconds after the vehicle is in the ON mode. The mirror defogger output automatically stops in 10 minutes as a result of its timer. If the driver's door control unit receives a rear window defogger/mirror defogger switch input signal from the climate control unit during mirror defogger output, the power window master switch shuts off the auto operation function immediately.

Defogger Timer Function

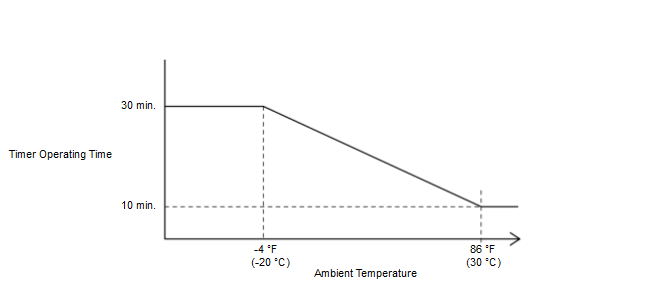

The mirror defogger provides a timer control function that is controlled by the climate control unit. The timer control is operated by turning the vehicle to the ON mode, then turning on the mirror defogger switch. The timer operating time varies according to ambient temperature. If the mirror defogger switch is turned on when the timer is active, it toggles between ON and OFF every time the switch is pressed.

Courtesy of HONDA, U.S.A., INC.

Reverse Tilt Mirror Control (With Reverse Tilt Mirror)

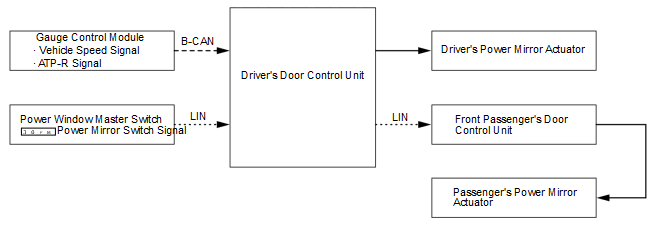

When shifting the transmission into R position/mode with the power mirror selector switch in Left or Right position, the driver's or passenger's power mirror tilts down automatically to help the driver's view. The mirror will return to the previous position when the shift position/mode is out of R position/mode. The reverse mirror control is cancelled if the power mirror selector switch is in the center position.

Courtesy of HONDA, U.S.A., INC.

Auto Retract Mirror Function (With Auto Retract Mirror)

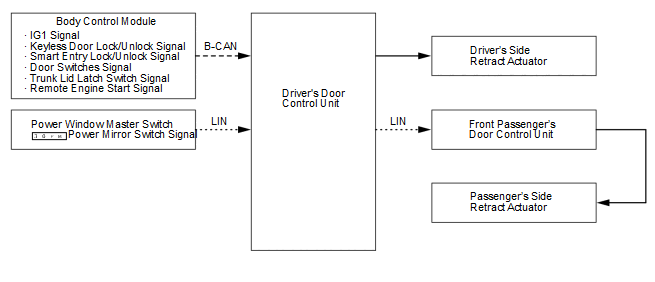

The auto retract mirror function automatically retracts and extends the door mirrors by keyless entry operation or smart entry operation.

Courtesy of HONDA, U.S.A., INC.

The auto retract/extension mirror function are as shown in the following table.

	Operating Condition	Stop Condition
Auto Retract	When all of the following conditions are met: The power mirror switch is in the extension state, and the vehicle is switched to the vehicle OFF (LOCK) mode All the door switches are OFF Trunk lid latch switch is OFF When any of the following conditions are met: - Lock operation by the smart entry - Lock operation by the keyless entry - Lock operation by the re-lock function	When any of the following conditions are met: The remote engine start is in non-operating state, and the vehicle is switched to the ACCESSORY mode 10 seconds have passed from starting the retract operation output Auto extension operation conditions are met

	Operating Condition	Stop Condition
Auto Extension	When all of the following conditions are met: The power mirror switch is in the extension state, and the vehicle is switched to the vehicle OFF (LOCK) mode All the door switches are OFF Trunk lid latch switch is OFF When any of the following conditions are met: - Unlock operation by the smart entry - Unlock operation by the keyless entry	When any of the following conditions are met: The remote engine start is in non-operating state, and the vehicle is switched to the ACCESSORY mode 10 seconds have passed from starting the extension operation output Auto retract operation conditions are met
