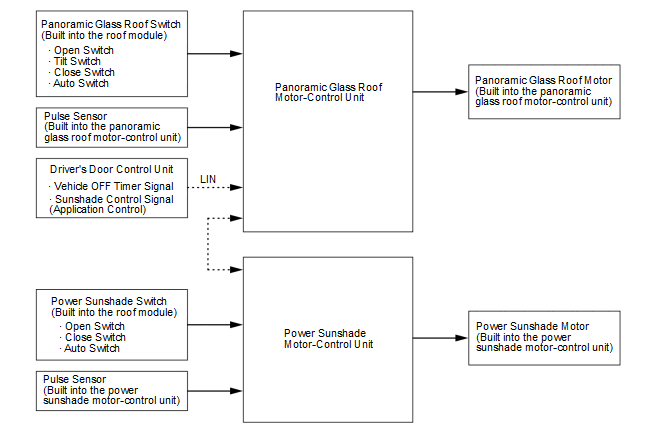

Panoramic Glass Roof System Description - System Diagram
For locations of each component on vehicle, refer to Component Location Index - Refer to: Panoramic Glass Roof Mechanical Component Location Index or Panoramic Glass Roof Electrical Component Location Index
