Panoramic Glass Roof Motor-Control Unit Connector for Inputs and Outputs

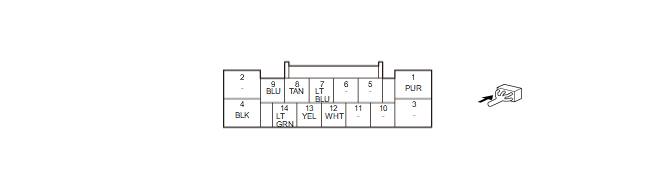

Panoramic Glass Roof Motor-Control Unit 14P Connector (female terminals)
| Terminal number | Terminal name | Description |
|---|---|---|
| 1 | +B_SUNROOF | Power source for panoramic glass roof motor-control unit |
| 2 | Not used | --- |
| 3 | Not used | --- |
| 4 | PGND | Ground for panoramic glass roof motor-control unit |
| 5 | Not used | --- |
| 6 | Not used | --- |
| 7 | S/R_SW_OPEN | Detects S/R_SW_OPEN signal |
| 8 | S/R_SW_TILT | Detects S/R_SW_TILT signal |
| 9 | S/R_SW_CLOSE | Detects S/R_SW_CLOSE signal |
| 10 | Not used | --- |
| 11 | Not used | --- |
| 12 | LIN(P/W) | Communication line |
| 13 | S/R_LOCAL | Communication line |
| 14 | S/R_SW_AUTO | Detects S/R_SW_AUTO signal |
