Accessory Power Sockets Circuit Diagram (3.5L Engine)

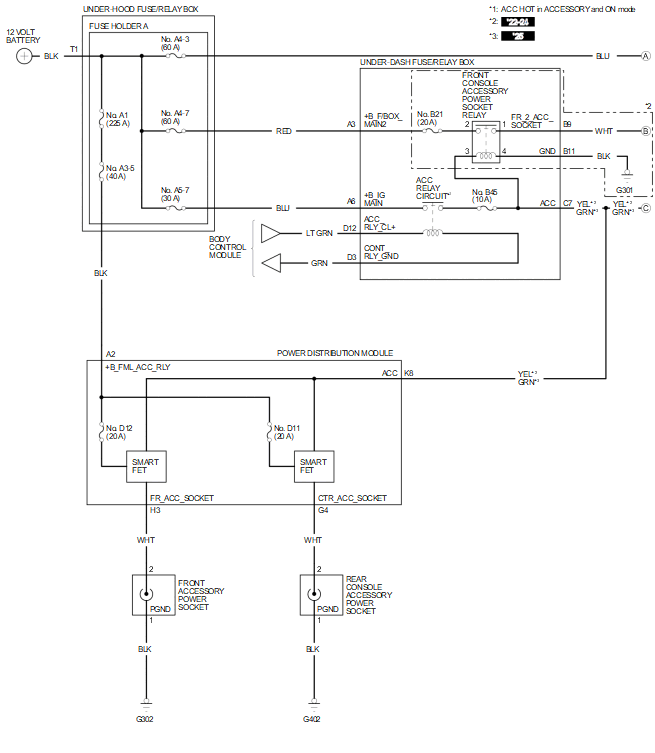

GHH659079

Courtesy of HONDA, U.S.A., INC.

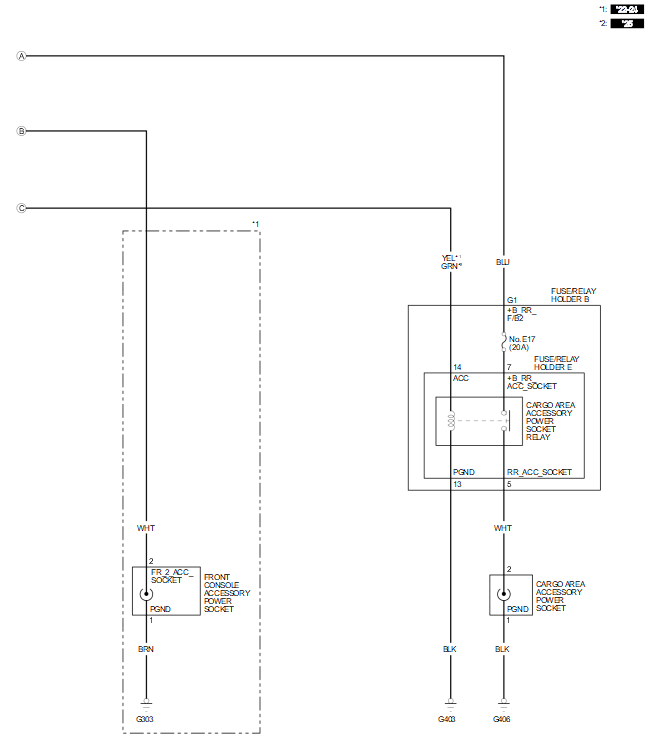

GHH659080

Courtesy of HONDA, U.S.A., INC.
