Relay Locations

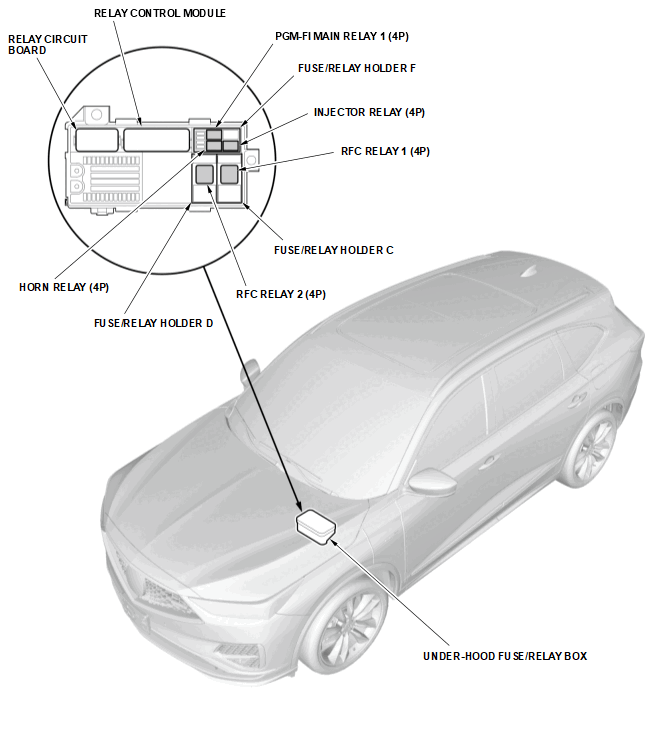

Engine Compartment - 1/23.0 L Engine
 Courtesy of HONDA, U.S.A., INC.
|

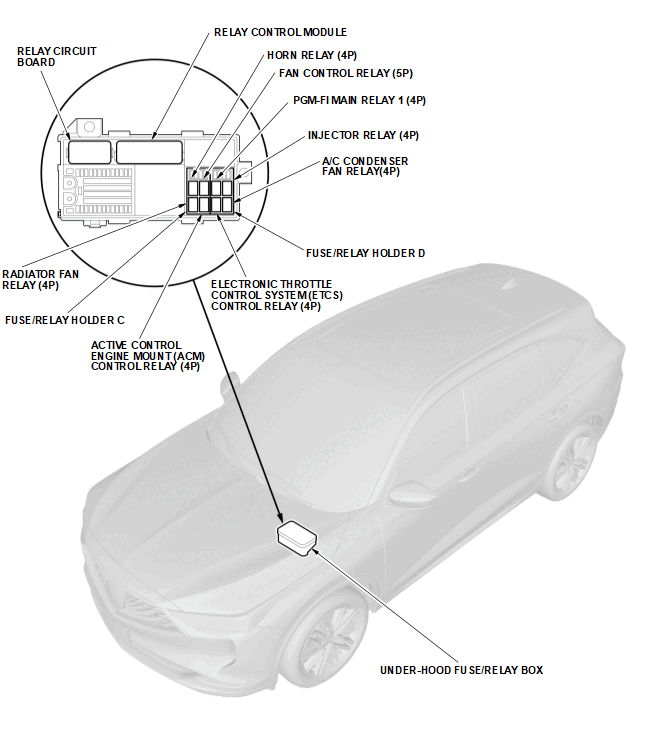

Engine Compartment - 2/2 3.5 L Engine
 Courtesy of HONDA, U.S.A., INC.
|

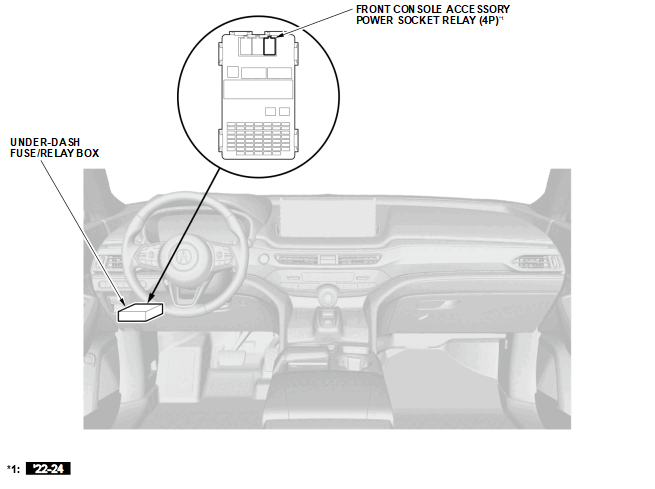

Dashboard - 1/2
 Courtesy of HONDA, U.S.A., INC.
|

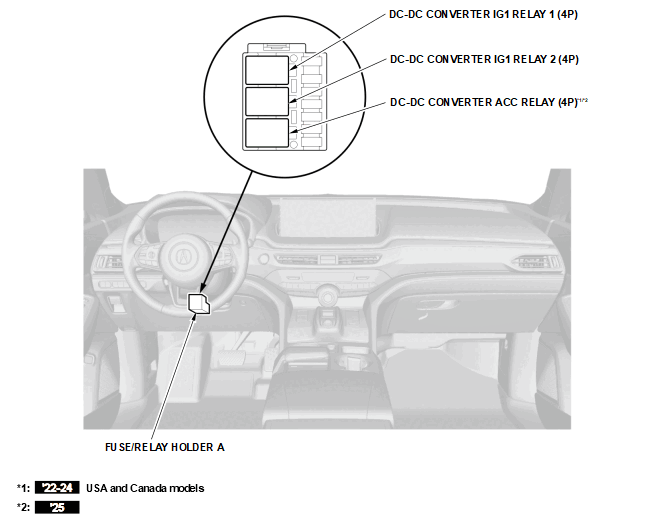

Dashboard - 2/2
 Courtesy of HONDA, U.S.A., INC.
|

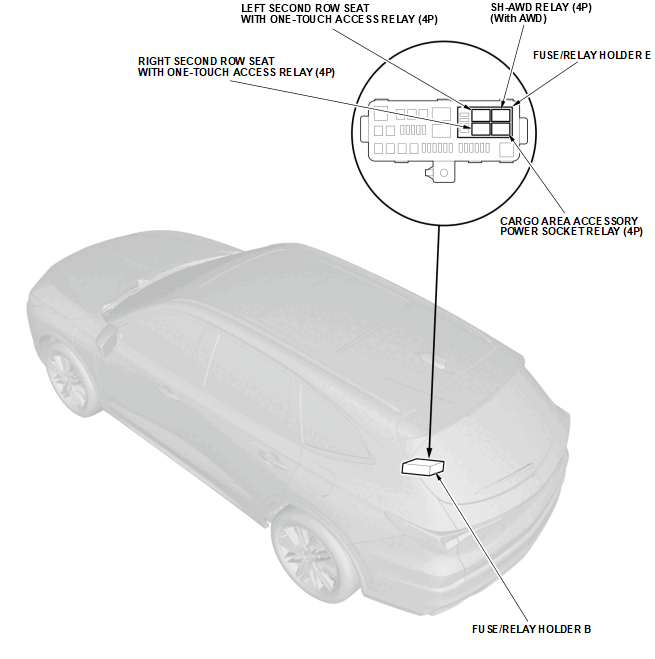

Floor
 Courtesy of HONDA, U.S.A., INC.
|
