Power Sunshade Motor-Control Unit Connector for Inputs and Outputs

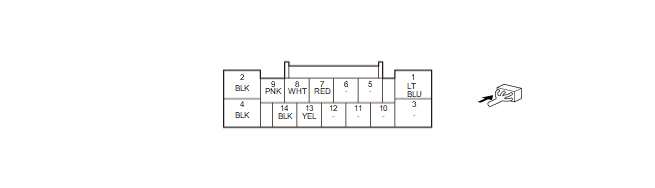

Power Sunshade Motor-Control Unit 14P Connector (female terminals)
| Terminal number | Terminal name | Description |
|---|---|---|
| 1 | +B_SUNSHADE | Power source for power sunshade motor-control unit |
| 2 | PGND | Ground for power sunshade motor-control unit |
| 3 | Not used | --- |
| 4 | PGND | Ground for power sunshade motor-control unit |
| 5 | Not used | --- |
| 6 | Not used | --- |
| 7 | SUNSHADE_SW_OPEN | Detects SUNSHADE_SW_OPEN signal |
| 8 | RR_SUNSHADE_SW | Detects RR_SUNSHADE_SW signal |
| 9 | SUNSHADE_SW_CLOSE | Detects SUNSHADE_SW_CLOSE signal |
| 10 | Not used | --- |
| 11 | Not used | --- |
| 12 | Not used | --- |
| 13 | S/R_LOCAL | Communication line |
| 14 | SUNSHADE_SW_AUTO | Detects SUNSHADE_SW_AUTO signal |
