Head Up Display Connector for Inputs and Outputs
| Connector Index |
|---|
| Head Up Display Connector A (16P) |
| Head Up Display Connector B (3P) |

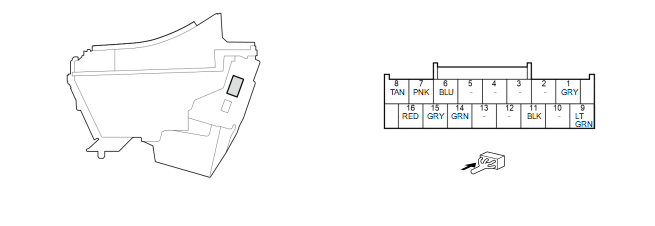

Head Up Display Connector A (16P) (female terminals)
| Terminal number | Terminal name | Description |
|---|---|---|
| 1 | IG1_METER(VST) | IG1 power source |
| 2 | Not used | --- |
| 3 | Not used | --- |
| 4 | Not used | --- |
| 5 | Not used | --- |
| 6 | HUD_UART2 | Communication line |
| 7 | HUD_TILT_DOWN | Detects HUD_TILT_DOWN signal |
| 8 | HUD_ILL_DOWN | Detects HUD_ILL_DOWN signal |
| 9 | +B_BACK_UP | Power source for head up display |
| 10 | Not used | --- |
| 11 | PGND | Ground for head up display |
| 12 | Not used | --- |
| 13 | Not used | --- |
| 14 | HUD_UART1 | Communication line |
| 15 | HUD_TILT_UP | Detects HUD_TILT_UP signal |
| 16 | HUD_ILL_UP | Detects HUD_ILL_UP signal |

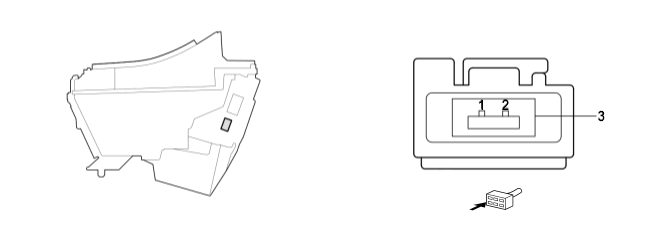

Head Up Display Connector B (3P) (female terminals)
| Terminal number | Terminal name | Description |
|---|---|---|
| 1 | LVDS2+ *1 | Communication line |
| LVDS+ *2 | ||
| 2 | LVDS2- *1 | Communication line |
| LVDS- *2 | ||
| 3 | LVDS2_SH *1 | Shield for terminals No. 1 and No. 2 |
| LVDS SH *2 |
*1:'22-24*2:'25
