Driver's Door Control Unit Connector for Inputs and Outputs

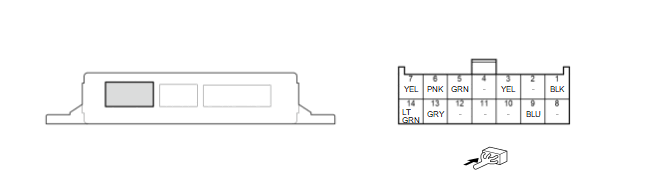

| Connector Index |
| Driver's Door Control Unit Connector A (14P) |
| Driver's Door Control Unit Connector B (16P) |
| Driver's Door Control Unit Connector C (32P) |
Driver's Door Control Unit Connector A (14P) (female terminals)
 Courtesy of HONDA, U.S.A., INC.
|
| Terminal number |
Terminal name |
Description |
| 1 |
PGND |
Ground for driver's door control unit |
| 2 |
Not used |
--- |
| 3 |
P/W_DR_MTR_UP |
Drives driver's power window motor |
| 4 |
Not used |
--- |
| 5 |
P/W_DR_MTR_DOWN |
Drives driver's power window motor |
| 6 |
H/MIRROR_DR |
H/MIRROR_DR signal |
| 7 |
+B_P/W_DR |
Power source for driver's door control unit |
| 8 |
Not used |
--- |
| 9 |
P/W_DR_H-BRIDGE_DET |
P/W_DR_H-BRIDGE_DET signal |
| 10 |
Not used |
--- |
| 11 |
Not used |
--- |
| 12 |
Not used |
--- |
| 13 |
IG2_A/C |
IG2 power source |
| 14 |
+B_BACK_UP |
Power source for driver's door control unit |
Driver's Door Control Unit Connector B (16P) (female terminals)
 Courtesy of HONDA, U.S.A., INC.
|
| Terminal number |
Terminal name |
Description |
| 1 |
BB-CAN_H |
Communication line |
| 2 |
Not used |
--- |
| Terminal number |
Terminal name |
Description |
| 3 |
LIN(P/W) |
Communication line |
| 4 |
Not used |
--- |
| 5 |
P/W_DR_MTR_VCC |
Outputs P/W_DR_MTR_VCC signal |
| 6 |
P/W_DR_SW_SGND |
Ground for power window master switch |
| 7 |
DR_MEMORY_SEAT_SW_POS3 |
Detects DR_MEMORY_SEAT_SW_POS3 signal |
| 8 |
DR_MEMORY_SEAT_SW_POS1 |
Detects DR_MEMORY_SEAT_SW_POS1 signal |
| 9 |
BB-CAN_L |
Communication line |
| 10 |
DR_MEMORY_SEAT_SW_SCOM |
Outputs DR_MEMORY_SEAT_SW_SCOM signal |
| 11 |
P/W_DR_MTR_PLSB |
Detects P/W_DR_MTR_PLSB signal |
| 12 |
Not used |
--- |
| 13 |
P/W_DR_MTR_PLSA |
Detects P/W_DR_MTR_PLSA signal |
| 14 |
P/W_DR_MTR_SGND |
Ground for driver's power window motor |
| 15 |
DR_MEMORY_SEAT_SW_MEMORY |
Detects DR_MEMORY_SEAT_SW_MEMORY signal |
| 16 |
DR_MEMORY_SEAT_SW_POS2 |
Detects DR_MEMORY_SEAT_SW_POS2 signal |
Driver's Door Control Unit Connector C (32P) (female terminals)
 Courtesy of HONDA, U.S.A., INC.
|
| Terminal number |
Terminal name |
Description |
| 1 |
MIRROR_UD |
Drives left power mirror actuator (UP/DOWN) |
| 2 |
Not used |
--- |
| 3 |
DR_KEY_CYL_UNLOCK |
Detects DR_KEY_CYL_UNLOCK signal |
| 4 *3 |
TRUNK_OPEN_SW(INTR) |
Detects TRUNK_OPEN_SW(INTR) signal |
| 5 |
Not used |
--- |
| 6 |
DR_MEMORY_SEAT_SW_IND1 |
DR_MEMORY_SEAT_SW_IND1 signal |
| 7 |
Not used |
--- |
| 8 *2 |
DR_WELCOME_LT |
DR_WELCOME_LT signal |
| 9 |
DR_DOWN_SIGNAL |
Detects DR_DOWN_SIGNAL signal |
| 10 |
Not used |
--- |
| 11 |
Not used |
--- |
| 12 |
DR_KEY_CYL_LOCK |
Detects DR_KEY_CYL_LOCK signal |
| 13 |
DR_MIRROR_HLSE |
Detects DR_MIRROR_HLSE signal |
| 14 |
DR_MEMORY_SEAT_SW_IND2 |
DR_MEMORY_SEAT_SW_IND2 signal |
| 15 |
DR_MIRROR_AGND |
Ground for right power mirror position sensor |
| 16 |
Not used |
--- |
| 17 |
MIRROR_VREF |
Outputs MIRROR_VREF signal |
*1: With power retract mirror *2: With door outer handle light*3:'25
| Terminal number |
Terminal name |
Description |
| 18 |
MIRROR_L_LR |
Drives left power mirror actuator (LEFT/RIGHT) |
| 19 |
DR_MIRROR_VLSE |
Detects DR_MIRROR_VLSE signal |
| 20 |
P/W_SW_ILLUMI |
P/W_SW_ILLUMI signal |
| 21 |
Not used |
--- |
| 22 |
MIRROR_L_COM |
Drives left power mirror actuator (UP/DOWN/LEFT/RIGHT) |
| 23 |
DR_MEMORY_SEAT_SW_IND3 |
DR_MEMORY_SEAT_SW_IND3 signal |
| 24 |
VOUT_FR_DR |
VOUT_FR_DR signal |
| 25 |
DR_COURTESY_LT+ |
DR_COURTESY_LT+ signal |
| 26 |
Not used |
--- |
| 27 |
DR_UP_SIGNAL |
Detects DR_UP_SIGNAL signal |
| 28 |
Not used |
--- |
| 29 *1 |
DR_RETRA_OPEN |
Drives retract actuator |
| 30 |
DR_SILCON_UNLOCK |
Detects DR_SILCON_UNLOCK signal |
| 31 *1 |
DR_RETRA_CLOSE |
Drives retract actuator |
| 32 |
DR_SILCON_LOCK |
Detects DR_SILCON_LOCK signal |
*1: With power retract mirror *2: With door outer handle light*3:'25
