Automatic Lighting/Rain Sensor Connector for Inputs and Outputs

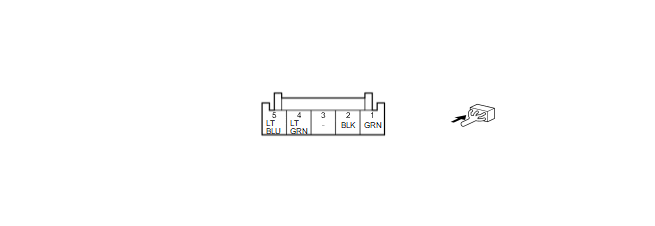

Automatic Lighting/Rain Sensor 5P Connector (female terminals)
| Terminal number | Terminal name | Description |
|---|---|---|
| 1 | H/L_ON_SW | Outputs H/L_ON_SW signal |
| 2 | GND | Ground for automatic lighting/rain sensor |
| 3 | Not used | --- |
| 4 | LIN(FR_WIPER) | Communication line |
| 5 | +B_BACK_UP(VST) | Power source for automatic lighting/rain sensor |
