Automatic Dimming Inside Mirror Connector for Inputs and Outputs
| Connector Index |
|---|
| Automatic Dimming Inside Mirror 8P Connector ('22-24) |
| Automatic Dimming Inside Mirror 6P Connector ('25) |

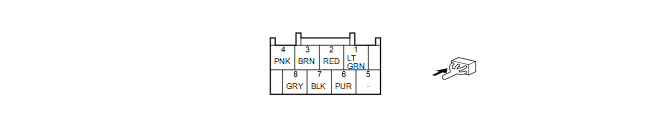

Automatic Dimming Inside Mirror 8P Connector (female terminals) ('22-24)
| Terminal number | Terminal name | Description |
|---|---|---|
| 1 | +B_BACK_UP | Power source for automatic dimming inside mirror |
| 2 | ILLUMI+ | Detects ILLUMI+ signal |
| 3 * | DR_MIRROR_DIMMING_GND | Ground for power mirrors |
| 4 * | DR_MIRROR_DIMMING | Outputs DR_MIRROR_DIMMING signal |
| 5 | Not used | --- |
| 6 | BACK_LT | Detects BACK_LT signal |
| 7 | GND | Ground for rearview mirror |
| 8 | IG2_A/C | IG2 power source |
*: With automatic dimming outside mirror

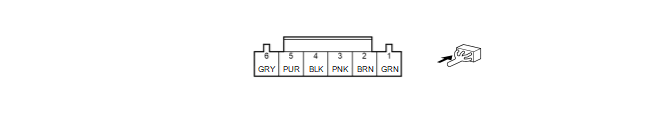

Automatic Dimming Inside Mirror 6P Connector (female terminals) ('25)
| Terminal number | Terminal name | Description |
|---|---|---|
| 1 | INTR_LT_CUT_RLY_OUT1 | Detects INTR_LT_CUT_RLY_OUT1 signal |
| 2 * | DR_MIRR_DIMMING_GND | Ground for power mirrors |
| 3 * | DR_MIRR_DIMMING | Outputs DR_MIRR_DIMMING signal |
| 4 | GND | Ground for rearview mirror |
| 5 | BACK_LT | Detects BACK_LT signal |
| 6 | IG2_A/C | IG2 power source |
*: With automatic dimming outside mirror
