AC Inverter Unit Connector for Inputs and Outputs

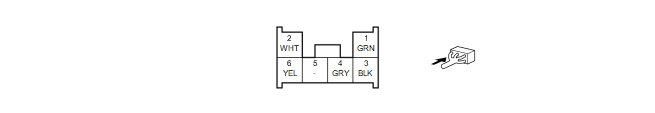

AC Inverter Unit 6P Connector (female terminals)
 Courtesy of HONDA, U.S.A., INC.
|
| Terminal number |
Terminal name |
Description |
| 1 |
+B_AC_INV |
Power source for AC inverter unit |
| 2 |
AC- |
Outputs AC- power outlet signal |
| 3 |
PGND |
Ground for A/C inverter unit |
| 4 |
IG2_A/C |
IG2 power source |
| 5 |
Not used |
--- |
| 6 |
AC+ |
Outputs AC+ power outlet signal |
