Wiper Arm/Nozzle Adjustment: Adjustment

How to use this service information .

NOTICE:

When working with a vehicle equipped with the electronic air suspension, be sure to set it to the leveling off mode to prevent unexpected operation. Refer to the Electronic Air Suspension System Service Precautions - Refer to: Electronic Air Suspension System Connector Fitting Precautions or Electronic Air Suspension System Service Precautions for the procedure.

Windshield

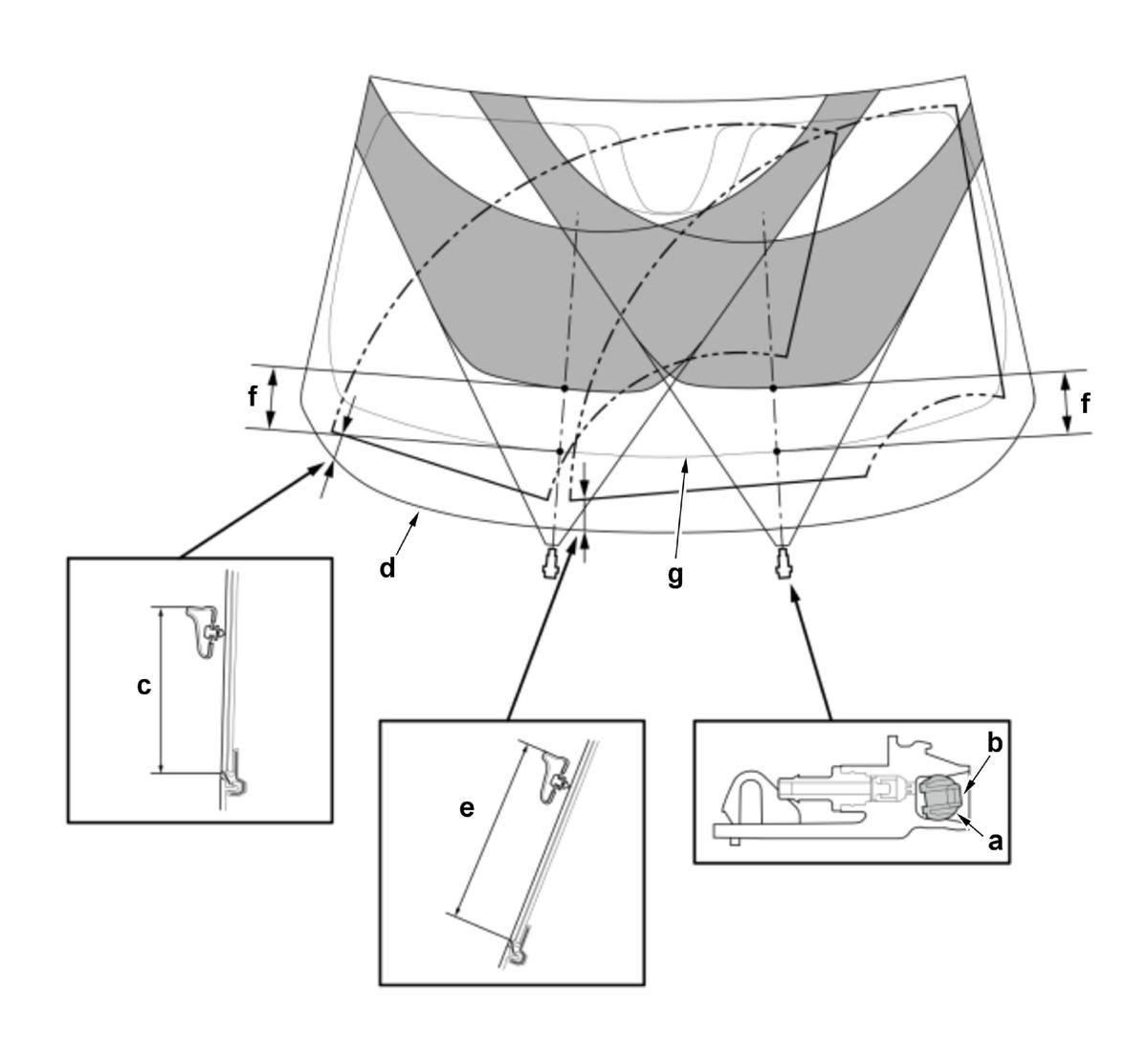

1. Windshield Wiper Arm/Nozzle - Adjust

   NOTICE:

   • Adjust the washer nozzles by gently gripping and moving the outside of each nozzle (a).
   • Do not insert tools into the nozzle hole (b), as it may cause the washer fluid to spray incorrectly.

   Windshield Wiper Arm Park Position

   • Turn the vehicle to the ON mode, then turn the wiper switch ON, and then back OFF.
   • If necessary adjust the wiper arm and washer position according to the table.

   Windshield Wiper Specifications

   Adjust Point
   c	Position at about 71.5 mm (2.815 in) from the end of the windshield (d).
   e	Position at about 81 mm (3.19 in) from the end of the windshield.

   Windshield Washer Nozzle Position

   • When you turn on the washer, make sure 50 % or more of the washer fluid lands within the spray area. If the spray area is not within the standard positions, adjust the nozzle(s).

   Windshield Washer Specifications

   Adjust Point
   f	Position at about 178 mm (7.01 in) from the end of black ceramic gradation area (g) at the lower windshield.

   Courtesy of HONDA, U.S.A., INC.

   Rear

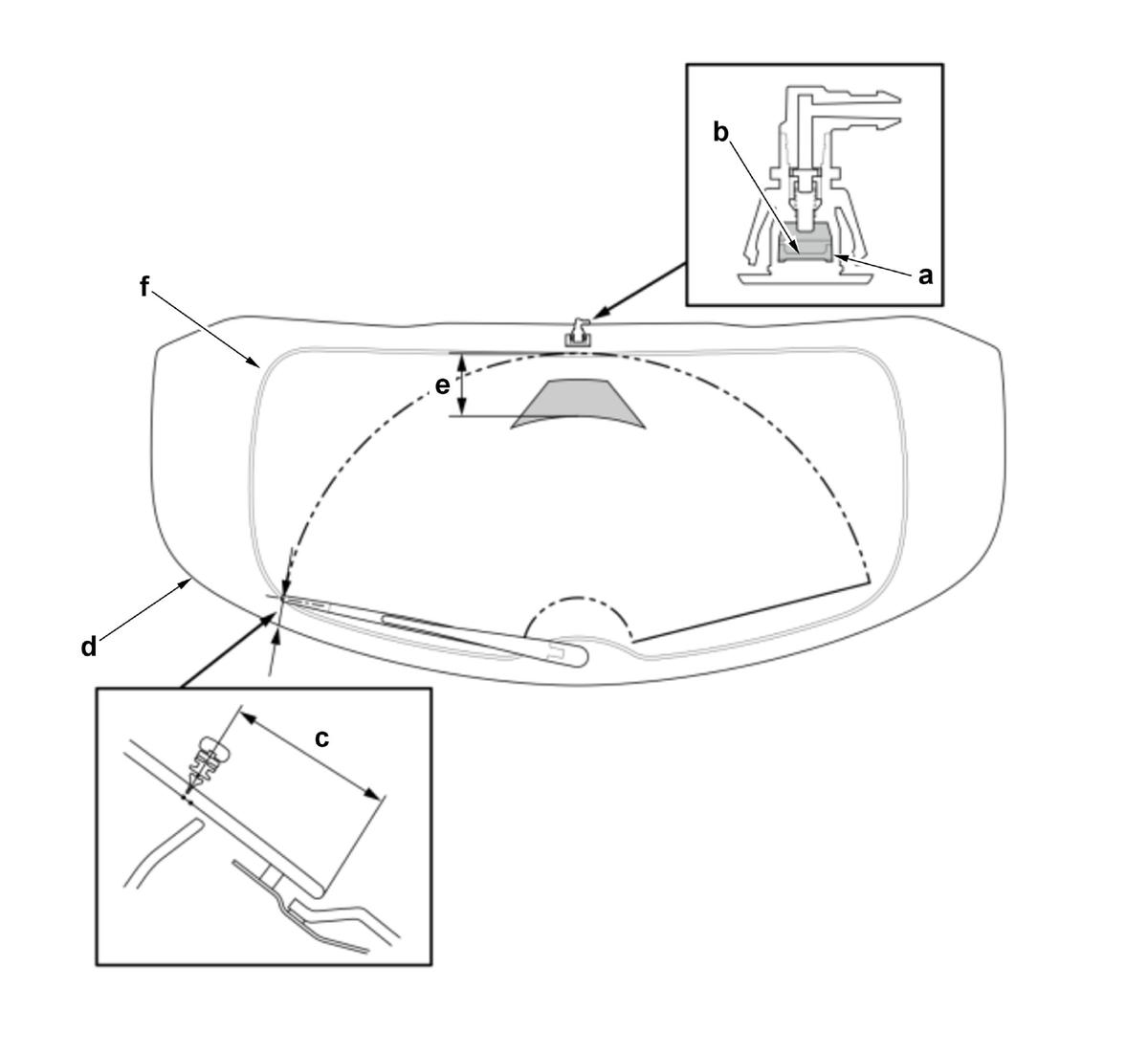

2. Rear Window Wiper Arm/Nozzle - Adjust

   NOTICE:

   • Adjust the washer nozzles by gently gripping and moving the outside of each nozzle (a).
   • Do not insert tools into the nozzle hole (b), as it may cause the washer fluid to spray incorrectly.

   Rear Window Wiper Arm Park Position

   • Turn the vehicle to the ON mode, then turn the wiper switch ON, and then back OFF.
   • If necessary adjust the wiper arm and washer position according to the table.

   Rear Window Wiper Specifications

   Adjust Point
   c	Wiper arm stop position at about 46.2 mm (1.819 in) from the end of the rear window (d).

   Rear Window Washer Nozzle Position

   • When you turn on the washer, make sure 50 % or more of the washer fluid lands within the spray area. If the spray area is not within the standard positions, adjust the nozzle.

   Rear Window Washer Specifications

   Adjust Point
   e	Position at about 102 mm (4.02 in) from the end of black ceramic gradation area (f).

   Courtesy of HONDA, U.S.A., INC.
