Multi View Camera Switch Test: Test

How to use this Service Information .

WARNING:

• SRS components are located in this area. Before doing repairs or service:
• • -

    Review the SRS component locations .

• • -

    Review the precautions and procedures .

NOTICE:

When working with a vehicle equipped with the electronic air suspension, be sure to set it to the leveling off mode to prevent unexpected operation. Refer to the Electronic Air Suspension System Service Precautions - Refer to: Electronic Air Suspension System Connector Fitting Precautions or Electronic Air Suspension System Service Precautions for the procedure.

NOTE:  The multi view camera switch is a part of the wiper/washer switch, and it cannot be replaced by itself.

1. Multi View Camera Switch - Test

   Preconditions

   • Wiper/Washer Switch Removed

   Procedure

   • Check the multi view camera switch (a) according to the table. (Figure 1 and 2)

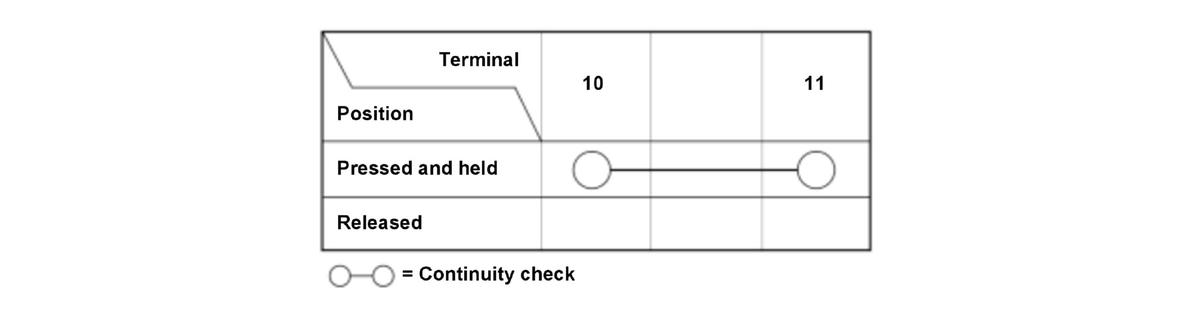

   Figure 1

   Courtesy of HONDA, U.S.A., INC.

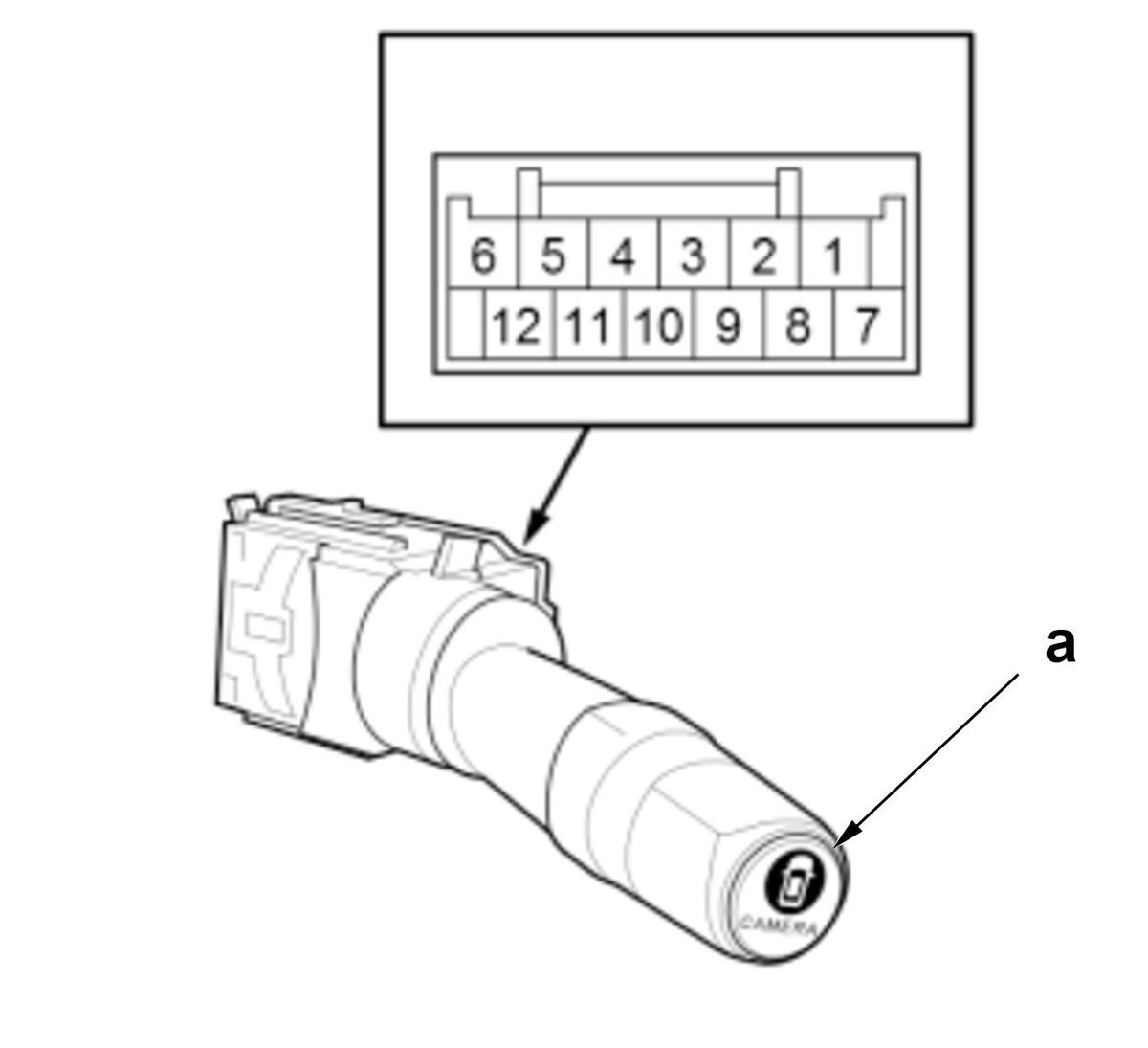

   Figure 2

   Courtesy of HONDA, U.S.A., INC.

   Result

   • If the result is not as specified, replace the wiper/washer switch .
