DTC Advanced Diagnostics: P1AF2 (1.5L Engine) (2025)
DTC P1AF2 : IG1 Voltage Out of Range
General Description

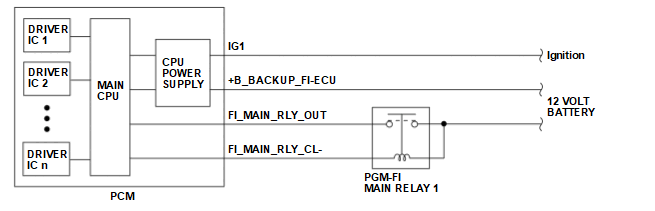

The powertrain control module (PCM) draws power for main CPU from +B_BACKUP_FI-ECU terminal, and draws power for activating the PCM from IG1 terminal. If IG1 voltage is higher than the voltage of usual use, the PCM detects a malfunction and stores a DTC.
Monitor Execution, Sequence, Duration, DTC Type
| Execution | Continuous |
| Sequence | None |
| Duration | 6.0 seconds or more |
| DTC Type | Two drive cycles, MIL on |
Enable Conditions
| Condition | Minimum | Maximum |
|---|---|---|
| 12 volt battery voltage [Battery]* 1 | - | 17.4325 V |
| 12 volt battery voltage [Battery]* 2 | - | 17.085 V |
| Vehicle | ON mode | |
*1: M/T
*2: CVT
[ ]: HDS Parameter
Malfunction Threshold
The IG1 voltage is 17.4325 V or more for at least 6.0 seconds.
Possible Cause
The causes shown may not be a complete list of all potential problems, and it is possible that there may be other causes.
- PCM internal circuit failure
Diagnosis Details
Conditions for setting the DTC
When a malfunction is detected during the first drive cycle, a Pending DTC is stored in the PCM memory. If the malfunction returns in the next (second) drive cycle, the MIL comes on and a Confirmed DTC, the freeze data, and the on-board snapshot are stored.
Conditions for clearing the DTC
The MIL is cleared if the malfunction does not return in three consecutive trips in which the diagnostic runs. The MIL, the Pending DTC, the Confirmed DTC, the freeze data, and the on-board snapshot can be cleared with the scan tool clear command.
