DTC Advanced Diagnostics: P16E3 (1.5L Engine)

DTC P16E3:  PGM-FI-Battery Sensor LIN Communication Error

General Description

Courtesy of HONDA, U.S.A., INC.

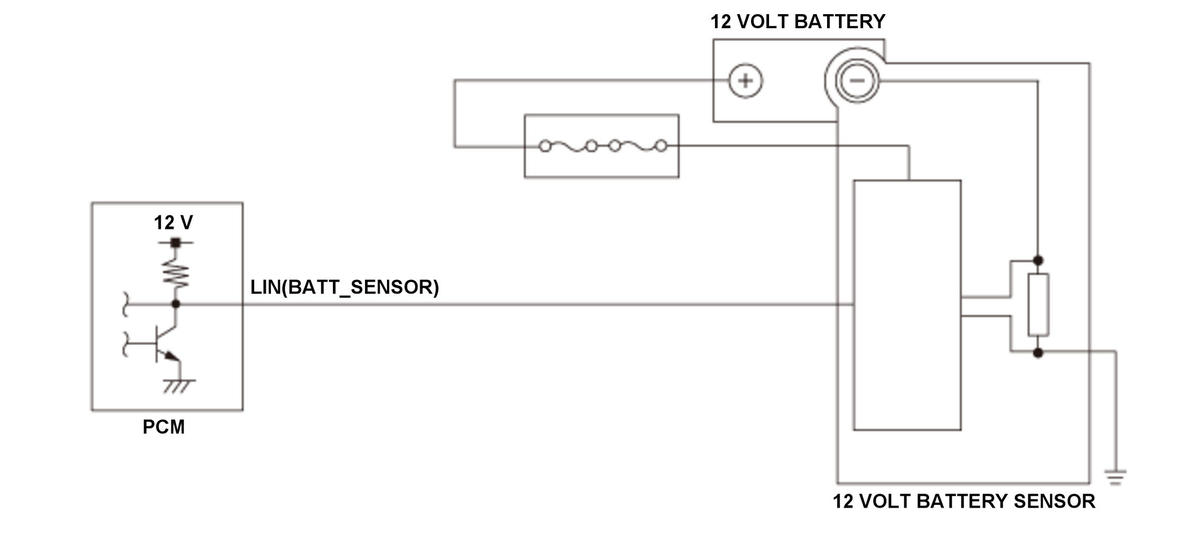

The local interconnect network (LIN) line connects the 12 volt battery sensor and the powertrain control module (PCM). The LIN uses a master/slave protocol to send and receive data to the different components on the line. The PCM is the master unit, which controls the engine electrical system. The 12 volt battery sensor unit is the slave. The 12 volt battery sensor receives data from the PCM and provides feedback to the PCM, which allows the PCM to operate the engine electrical system efficiently. When the PCM does not receive signals from the 12 volt battery sensor within its specified amount of time, the PCM detects a malfunction and stores a DTC.

Monitor Execution, Sequence, Duration, DTC Type

Execution	Continuous
Sequence	None
Duration	5 seconds or more
DTC Type	One drive cycle, MIL off

Enable Conditions

Condition	Minimum	Maximum
Elapsed time after the vehicle condition is turned to the ON mode	3 seconds	-
12 volt battery voltage [Battery]	10.0 V	-

[ ]: HDS Parameter

Malfunction Threshold

Either one of the conditions is met for at least 5 seconds:

• The PCM cannot receive any information from the 12 volt battery sensor via the LIN line.
• The information sent from the 12 volt battery sensor is abnormal.

Possible Cause

Diagnosis Details

Conditions for setting the DTC

When a malfunction is detected, a Pending DTC, a Confirmed DTC, the freeze data, and the on-board snapshot are stored in the PCM memory. The MIL does not come on.

Conditions for clearing the DTC

The Pending DTC, the Confirmed DTC, the freeze data, and the on-board snapshot can be cleared with the scan tool clear command.
