DTC Advanced Diagnostics: P16E2 (1.5L Engine)
DTC P16E2: PGM-FI-ACG LIN Communication Error
General Description

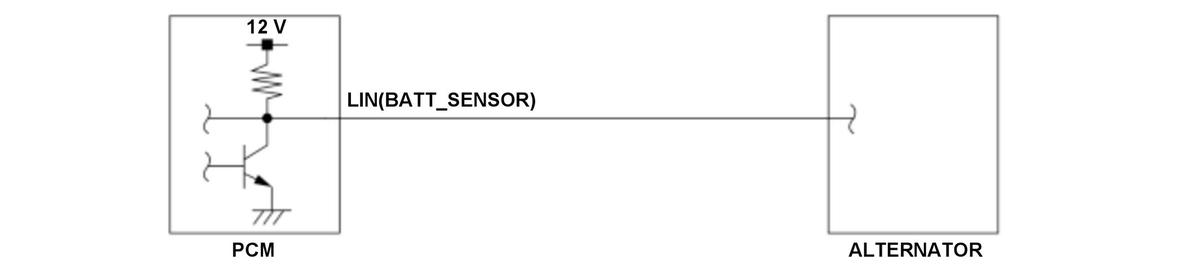

The local interconnect network (LIN) line connects the alternator and the powertrain control module (PCM). The LIN uses a master/slave protocol to send and receive data to the different components on the line. The PCM is the master unit, which controls the engine electrical system. The 12 volt battery sensor, the alternator, and the DC-DC converter are the slaves. The alternator receives data from the PCM and provides feedback to the PCM, which allows the PCM to operate the engine electrical system efficiently. When the PCM does not receive signals from the alternator within its specified amount of time, the PCM detects a malfunction and stores a DTC.
Monitor Execution, Sequence, Duration, DTC Type
| Execution | Continuous |
| Sequence | None |
| Duration | 5 seconds or more |
| DTC Type | One drive cycle, MIL off |
Enable Conditions
| Condition | Minimum | Maximum |
|---|---|---|
| Elapsed time after the vehicle condition is turned to the ON mode | 3 seconds | - |
| 12 volt battery voltage [Battery] | 10.0 V | - |
[ ]: HDS Parameter
Malfunction Threshold
Either one of the conditions is met for at least 5 seconds:
- The PCM cannot receive any information from the alternator via the LIN line.
- The information sent from the alternator is abnormal.
Possible Cause
The causes shown may not be a complete list of all potential problems, and it is possible that there may be other causes.
- Alternator failure
- Alternator LIN(BATT_SENSOR) line open
- Alternator LIN(BATT_SENSOR) line short
- PCM internal circuit failure
Diagnosis Details
Conditions for setting the DTC
When a malfunction is detected, a Pending DTC, a Confirmed DTC, the freeze data, and the on-board snapshot are stored in the PCM memory. The MIL does not come on.
Conditions for clearing the DTC
The Pending DTC, the Confirmed DTC, the freeze data, and the on-board snapshot can be cleared with the scan tool clear command.
