DTC Advanced Diagnostics: P0107, P0108 (1.5L Engine)
DTC P0107: Manifold Absolute Pressure (MAP) Sensor Circuit Low Voltage DTC P0108: Manifold Absolute Pressure (MAP) Sensor Circuit High Voltage
General Description

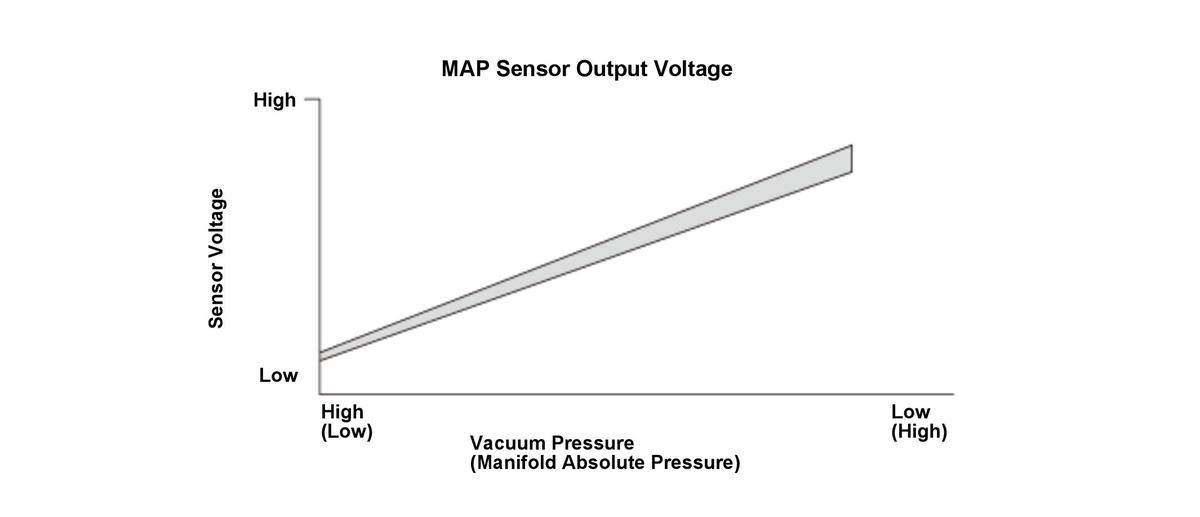

The manifold absolute pressure (MAP) sensor measures the pressure or vacuum in the manifold. This measurement is converted into an electrical signal which the powertrain control module (PCM) uses to monitor the engine. The MAP sensor outputs low signal voltage at high vacuum (throttle valve closed) and high signal voltage at low vacuum (throttle valve wide open). If the signal voltage from the MAP sensor falls below or exceeds a set value for a specified time, the PCM detects a malfunction and stores a DTC.
Monitor Execution, Sequence, Duration, DTC Type
| Execution | Continuous |
| Sequence | None |
| Duration | 2 seconds or more |
| DTC Type | One drive cycle, MIL on |
Enable Conditions
| Condition | |
|---|---|
| Vehicle | ON mode |
Malfunction Threshold
DTC: P0107
The MAP sensor output voltage [MAP Sensor Voltage] is 0.23 V or less for at least 2 seconds.
DTC: P0108
The MAP sensor output voltage [MAP Sensor Voltage] is 4.49 V or more for at least 2 seconds.
[ ]: HDS Parameter
Possible Cause
The causes shown may not be a complete list of all potential problems, and it is possible that there may be other causes.
DTC: P0107

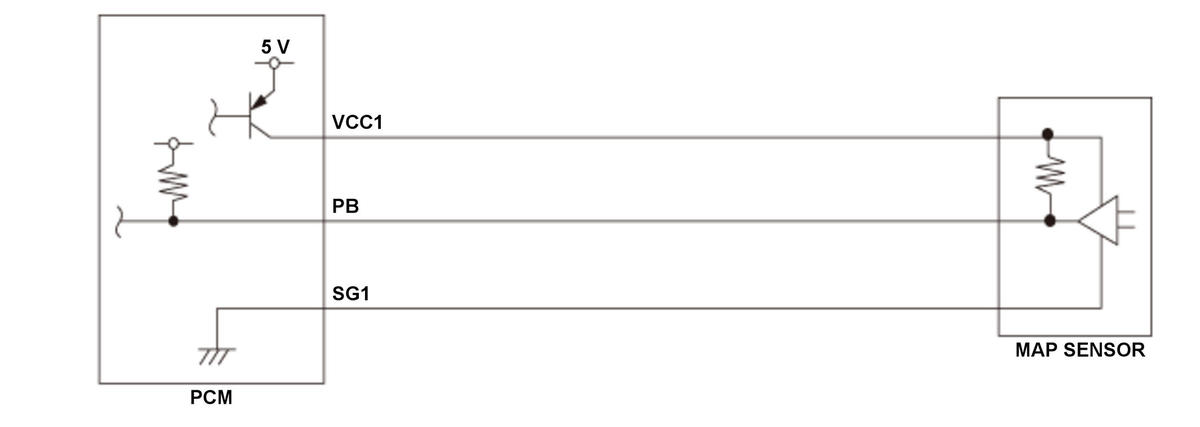

- MAP sensor PB line short to ground
- MAP sensor VCC1 line open
DTC: P0108
- MAP sensor PB line open
- MAP sensor SG1 line open
Common
- MAP sensor failure
- PCM internal circuit failure
Diagnosis Details
Conditions for setting the DTC
When a malfunction is detected, the MIL comes on and a Pending DTC, a Confirmed DTC, the freeze data, and the on-board snapshot are stored in the PCM memory.
Conditions for clearing the DTC
The MIL is cleared if the malfunction does not return in three consecutive trips in which the diagnostic runs. The MIL, the Pending DTC, the Confirmed DTC, the freeze data, and the on-board snapshot can be cleared with the scan tool clear command.
