DTC Advanced Diagnostics: P006A (1.5L Engine)
DTC P006A: Mass Airflow (MAF) Sensor Circuit Range/Performance Problem
General Description

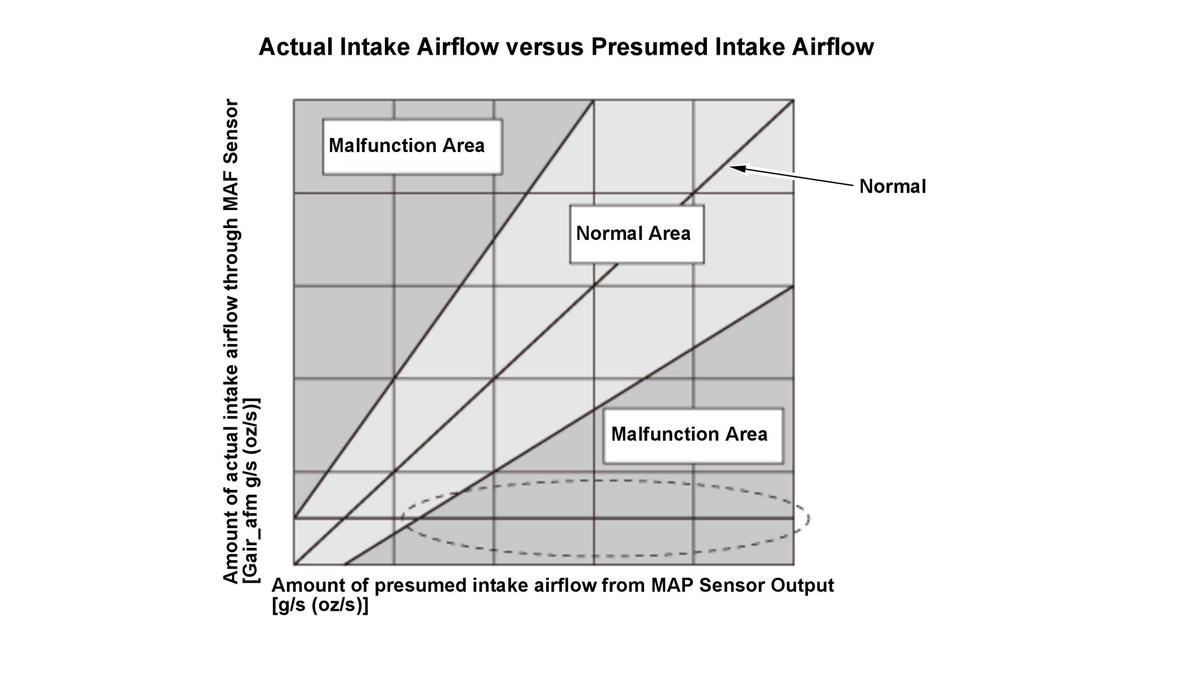

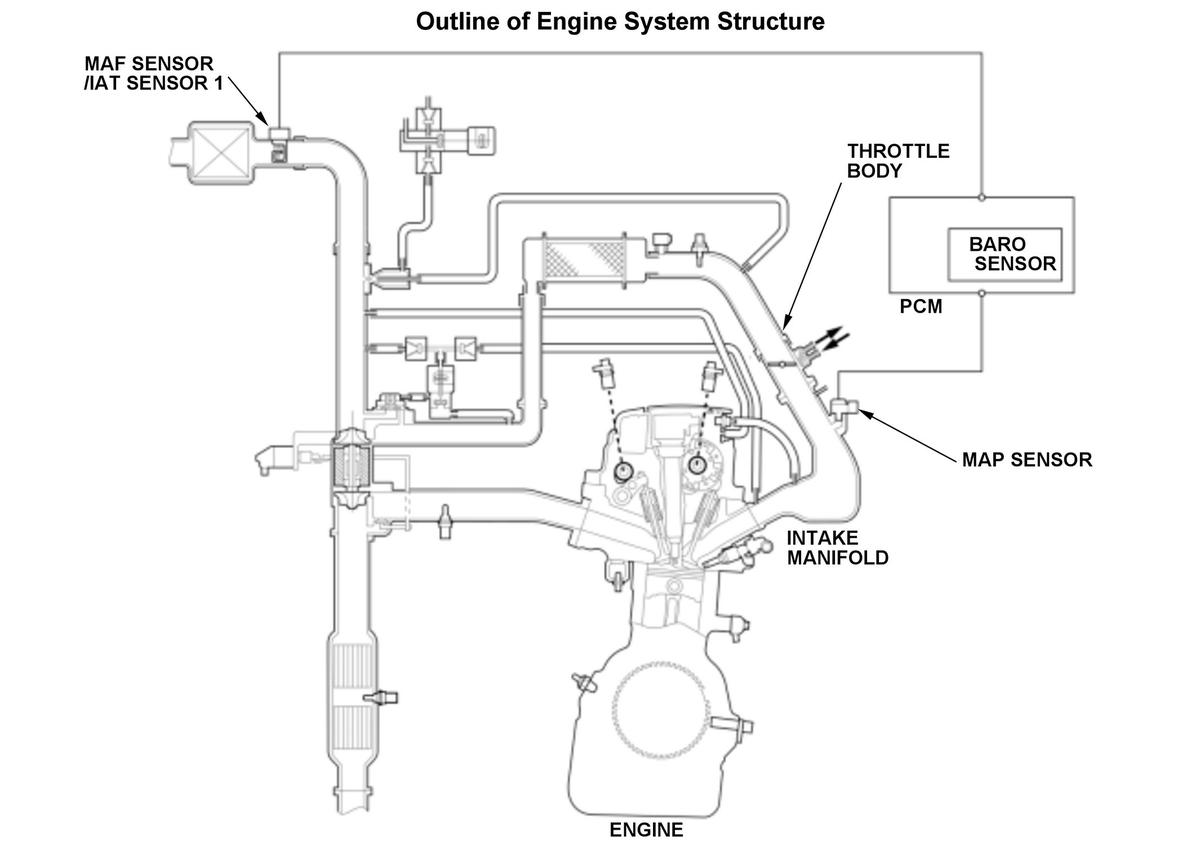

The mass airflow (MAF) sensor directly measures the amount of intake airflow into the engine, and the powertrain control module (PCM) controls the fuel injection based on the measured value. The manifold absolute pressure (MAP) sensor measures the intake manifold pressure, and the PCM calculates the amount of intake airflow from the MAP sensor output and the engine revolutions. The PCM compares the MAF sensor output (amount of intake airflow) and the amount of intake airflow calculated from MAP sensor output. If their difference is too large (in the malfunction area), the PCM detects a malfunction and stores a DTC.
Monitor Execution, Sequence, Duration, DTC Type
| Execution | Once per driving cycle |
| Sequence | None |
| Duration | 5.0 seconds or more |
| DTC Type | Two drive cycles, MIL on |
Enable Conditions
| Condition | Minimum | Maximum |
|---|---|---|
| Elapsed time after starting the engine | 3.0 seconds | - |
| Engine coolant temperature [ECT Sensor 1] | 155.9 deg.F (68.8 deg.C) | - |
| Engine speed [Engine Speed]* 1 | 550 rpm | 6, 500 rpm |
| Engine speed [Engine Speed]* 2 | 720 rpm | 6, 500 rpm |
*1: CVT
*2: M/T
[ ]: HDS Parameter
Malfunction Threshold
The difference between the amount of intake air measured by the MAF sensor and the amount of intake air calculated from the MAP sensor output is out of the normal area for at least 5.0 seconds.
Possible Cause
The causes shown may not be a complete list of all potential problems, and it is possible that there may be other causes.
- Intake air duct misinstalled
- Intake air duct damage
- Evaporative emission (EVAP) canister hose misinstalled
- Intake manifold damage
- MAP sensor misinstalled
- Positive crankcase ventilation (PCV) hose misinstalled
- Air cleaner element damage
- Air cleaner element clogged
- MAF sensor element damage
Confirmation Procedure
Operating Condition

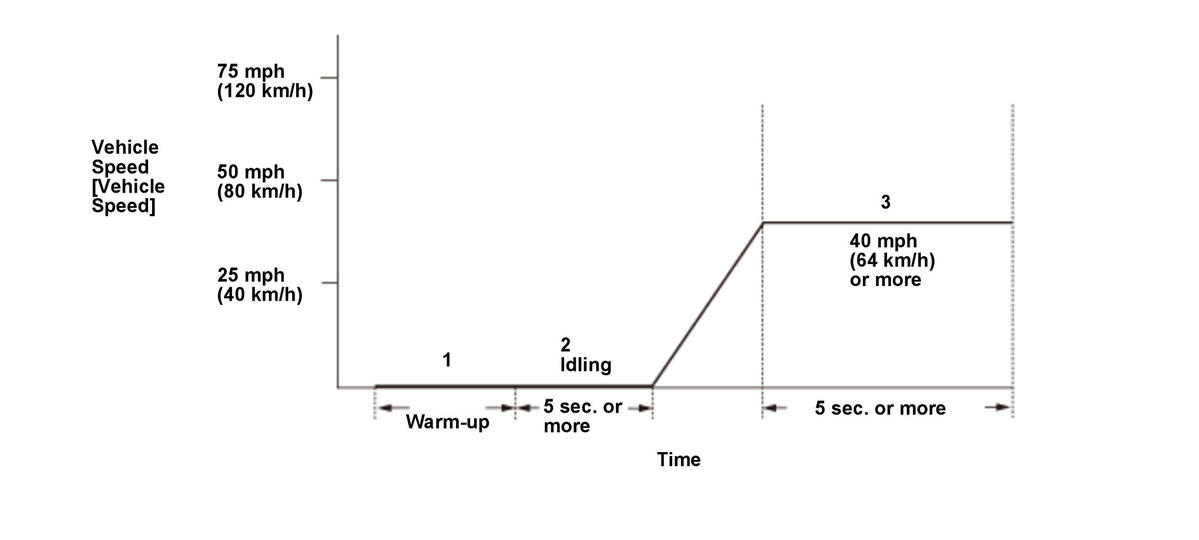

- Start the engine. Hold the engine speed [Engine Speed] at 3, 000 rpm without load (CVT in P or N, M/T in neutral) until the radiator fan comes on.
- Let the engine idle for at least 5 seconds.
- Drive the vehicle at a steady speed of 40 mph (64 km/h) or more for at least 5 seconds.
- When freeze data or the on-board snapshot is stored, drive the vehicle under those conditions instead of Driving Pattern step 3.
- When you have difficulty duplicating the DTC because of road conditions and traffic situations, repeat the driving pattern several times.
- Drive the vehicle in this manner only if the traffic regulations and ambient conditions allow.
Diagnosis Details
Conditions for setting the DTC
When a malfunction is detected during the first drive cycle, a Pending DTC is stored in the PCM memory. If the malfunction returns in the next (second) drive cycle, the MIL comes on and a Confirmed DTC, the freeze data, and the on-board snapshot are stored.
Conditions for clearing the DTC
The MIL is cleared if the malfunction does not return in three consecutive trips in which the diagnostic runs. The MIL, the Pending DTC, the Confirmed DTC, the freeze data, and the on-board snapshot can be cleared with the scan tool clear command.
