Exploded View
For replacement of components listed below, see Repair Procedure

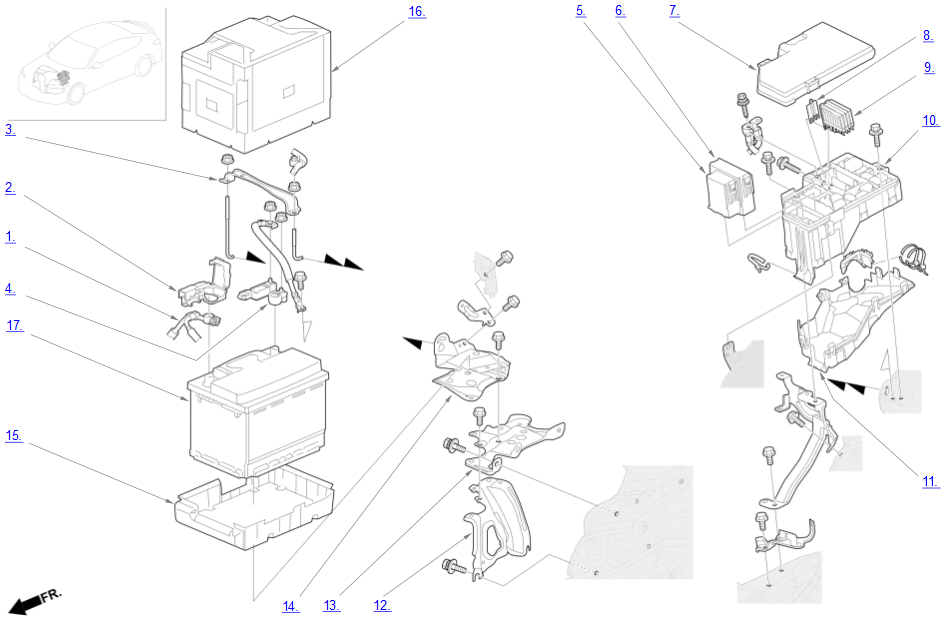

Except Type-S

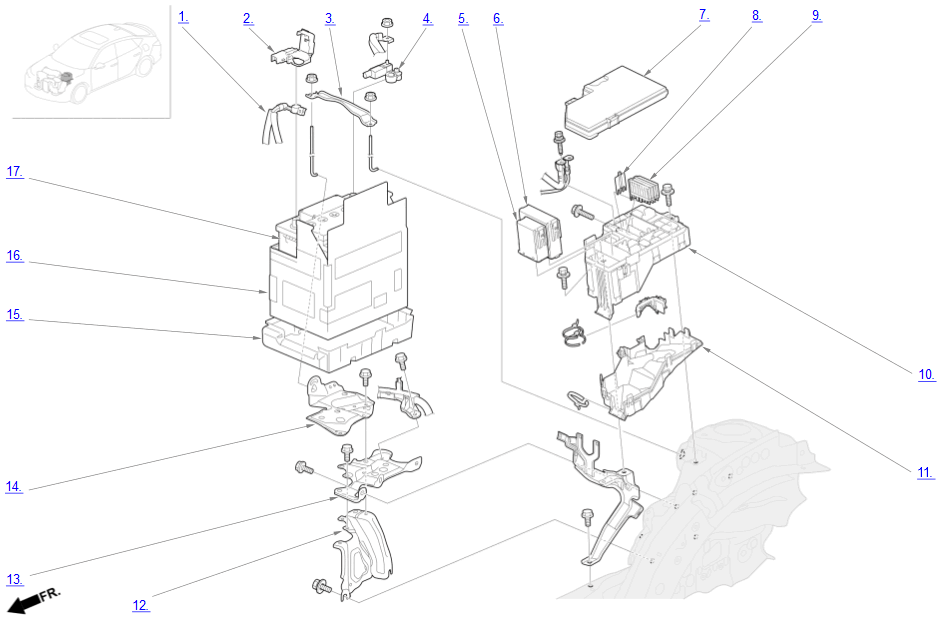

Type-S
12 Volt Battery Area Components
| Component Name | Callout |
|---|---|
| 12 Volt Battery Positive Terminal | 1 |
| 12 Volt Battery Positive Terminal Cover | 2 |
| 12 Volt Battery Setting Plate | 3 |
| 12 Volt Battery Sensor | 4 |
| Relay Circuit Board | 5 |
| Relay Control Module | 6 |
| Upper Cover | 7 |
| Main Fuse | 8 |
| Multi Fuse Block | 9 |
| Under-Hood Fuse/Relay Box | 10 |
| Bottom Cover | 11 |
| 12 Volt Battery Base Bracket | 12 |
| 12 Volt Battery Base | 13 |
| 12 Volt Battery Base Extension | 14 |
| 12 Volt Battery Box | 15 |
| 12 Volt Battery Insulator | 16 |
| 12 Volt Battery | 17 |
