Exploded View

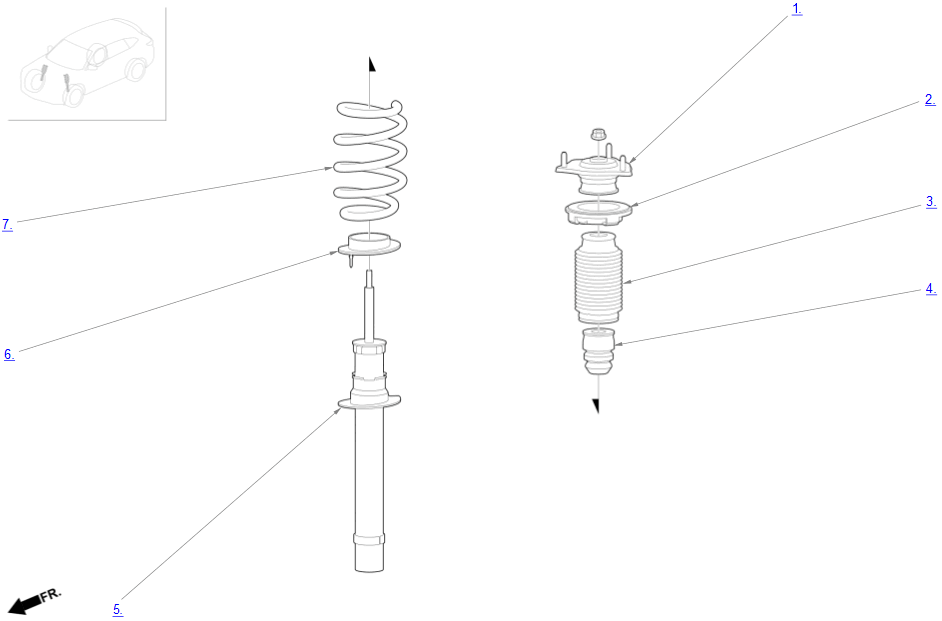

GHH662713Courtesy of HONDA, U.S.A., INC.
  1. Damper Mounting Base
  2. Upper Spring Seat Rubber
  3. Dust Cover
  4. Bump Stop
  5. Damper Unit
  6. Lower Spring Seat Rubber
  7. Damper Spring
