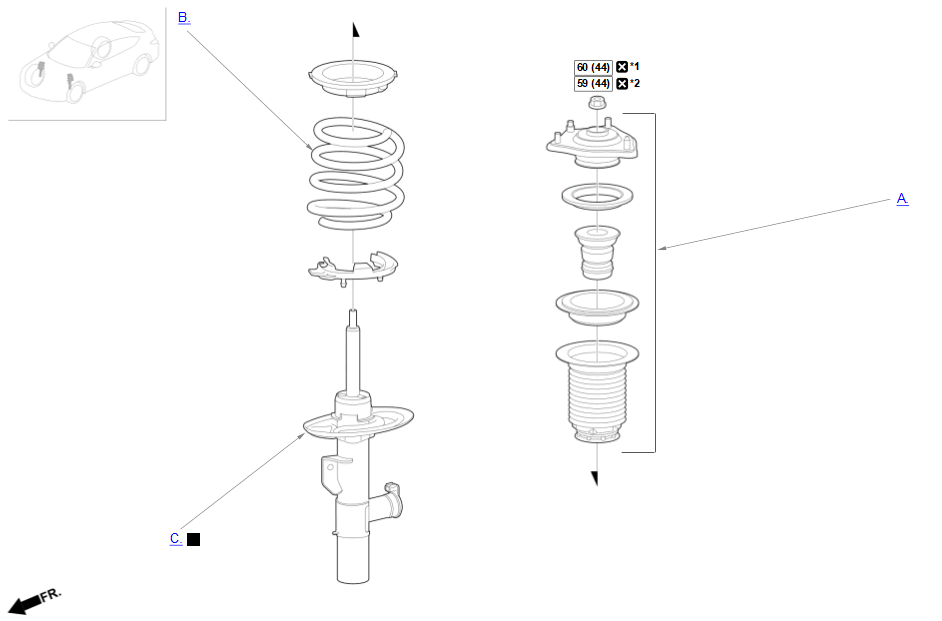

Repair Procedure

How to use this service information .

Courtesy of HONDA, U.S.A., INC.

: Torque, N.m (lbf.ft)

: Replace

: Warning/Caution

: Inspection/Adjustment

*: Learning

: SPL Tool

: Required Removal

*1: Except Type-S

*2: Type-S

1. A.-

   Sub-Procedure

   Courtesy of HONDA, U.S.A., INC.

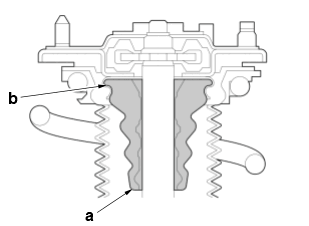

   ■ Installation

   • Push the bump stop (a) into the dent (b) of the damper mounting base securely.
2. B.-

   Sub-Procedure

   Courtesy of HONDA, U.S.A., INC.

   ■ Installation

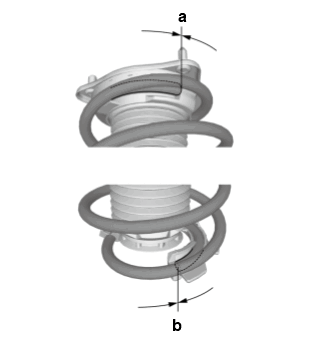

   Specifications

   Specification
   a	No Clearance
   b

3. C.-

   Sub-Procedure

   ■ Removal

   NOTICE:

   Do not compress the spring more than necessary.

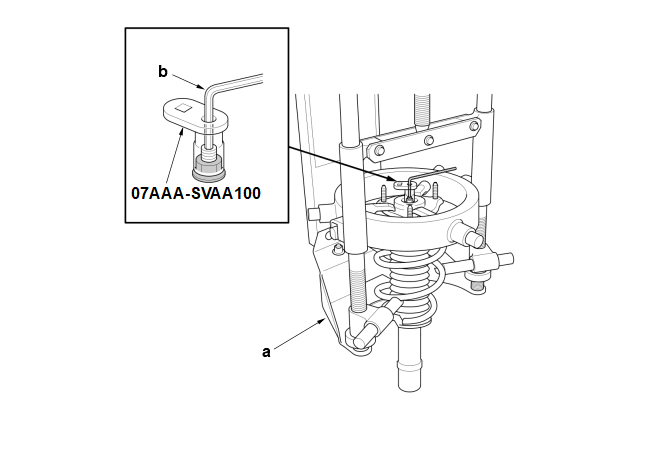

   • Refer to figure 1.

   Tool Details (Figure 1)

   Name
   a	Spring Compressor (Commercially Available) or Equivalent Tool
   b	Hex Wrench (Commercially Available)

   Figure 1

   Courtesy of HONDA, U.S.A., INC.

   ■ Installation

   NOTICE:

   Do not compress the spring excessively.

   1. Align the angle of the guide pin (c) on the damper mounting base with the aligning tab (d) on the bottom of the damper unit. (Figure 2)

   Vehicle Directions (Figure 2 and 3)

   Position	Direction
   d	Front

   Specifications (Figure 2 and 3)

   Standard Value
   e	0 deg. +/- 3 deg.

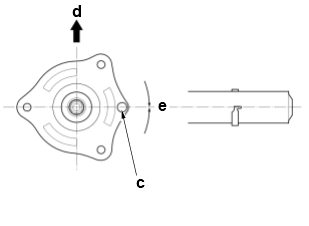

   Figure 2 (Except Type-S)

   Courtesy of HONDA, U.S.A., INC.

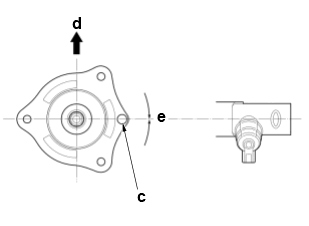

   Figure 3 (Type-S)

   Courtesy of HONDA, U.S.A., INC.

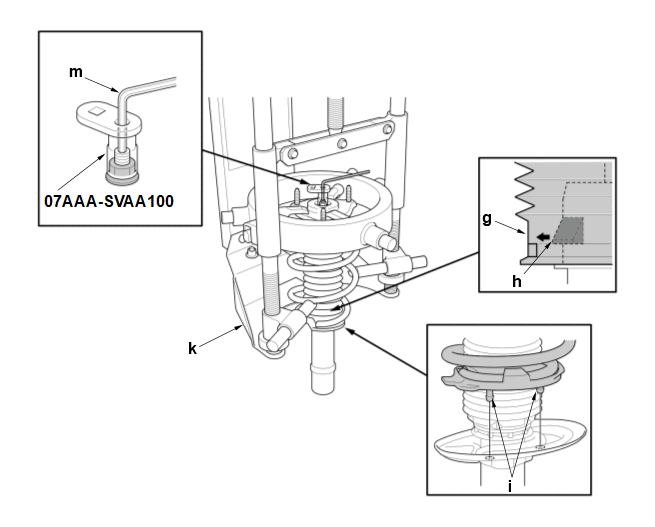

   2. Refer to figure 4.

   NOTE:

   • Make sure that the dust cover (g) is properly positioned into the raised portion (h) of the damper unit. (Figure 4)
   • Make sure that the tab (i) of the lower spring seat rubber is properly installed into the damper unit. (Figure 4)

   Tool Details (Figure 4)

   Name
   k	Spring Compressor (Commercially Available) or Equivalent Tool
   m	Hex Wrench (Commercially Available)

   Figure 4

   Courtesy of HONDA, U.S.A., INC.
