Retainer Replacement

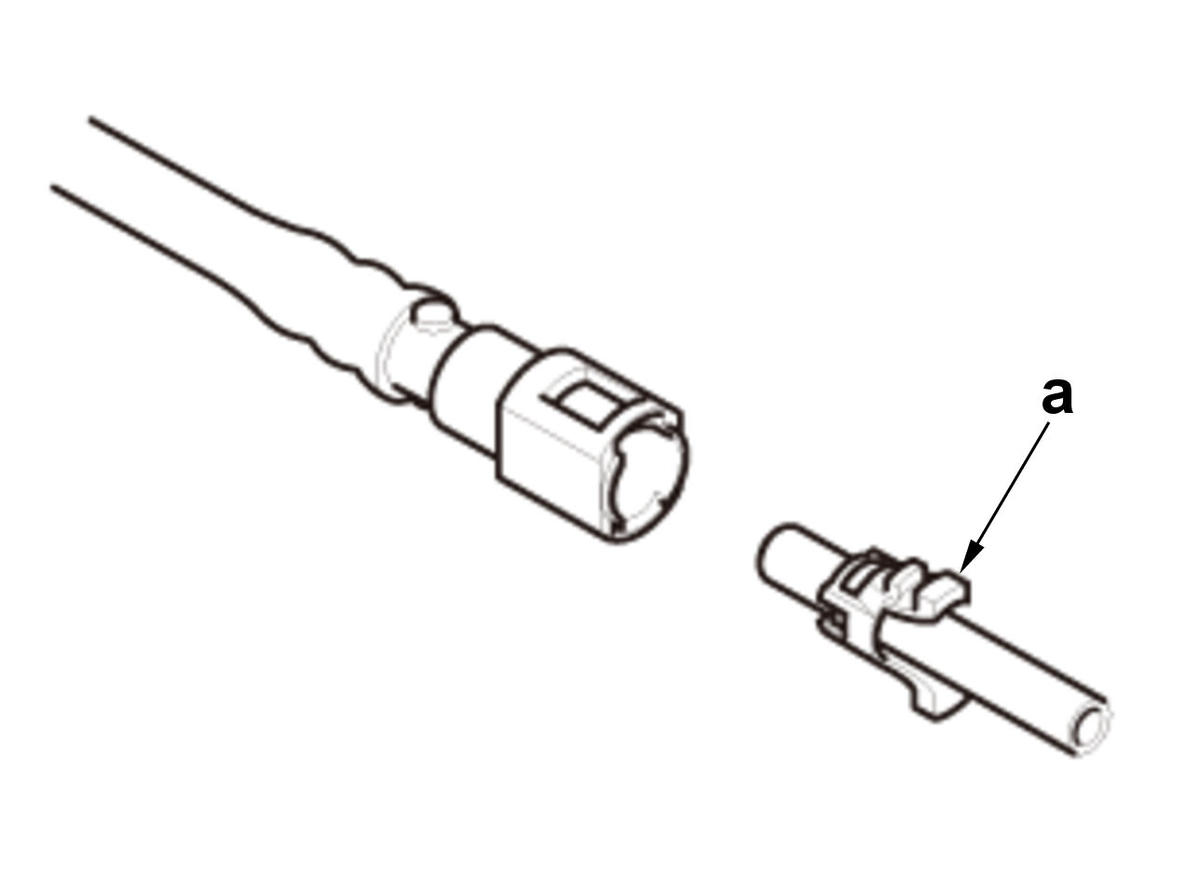

A disconnected quick-connect fitting can be reconnected, but replace the retainer (a) (Figure 1) when:

• The retainer is damaged.
• The retainer has been removed from the line.
• Replacing a new part that does not include the retainer. (a fuel line, a fuel tank unit etc.)

Figure 1

Courtesy of HONDA, U.S.A., INC.

NOTICE:

Use the same manufacturer retainer and the same size retainer when replacing.

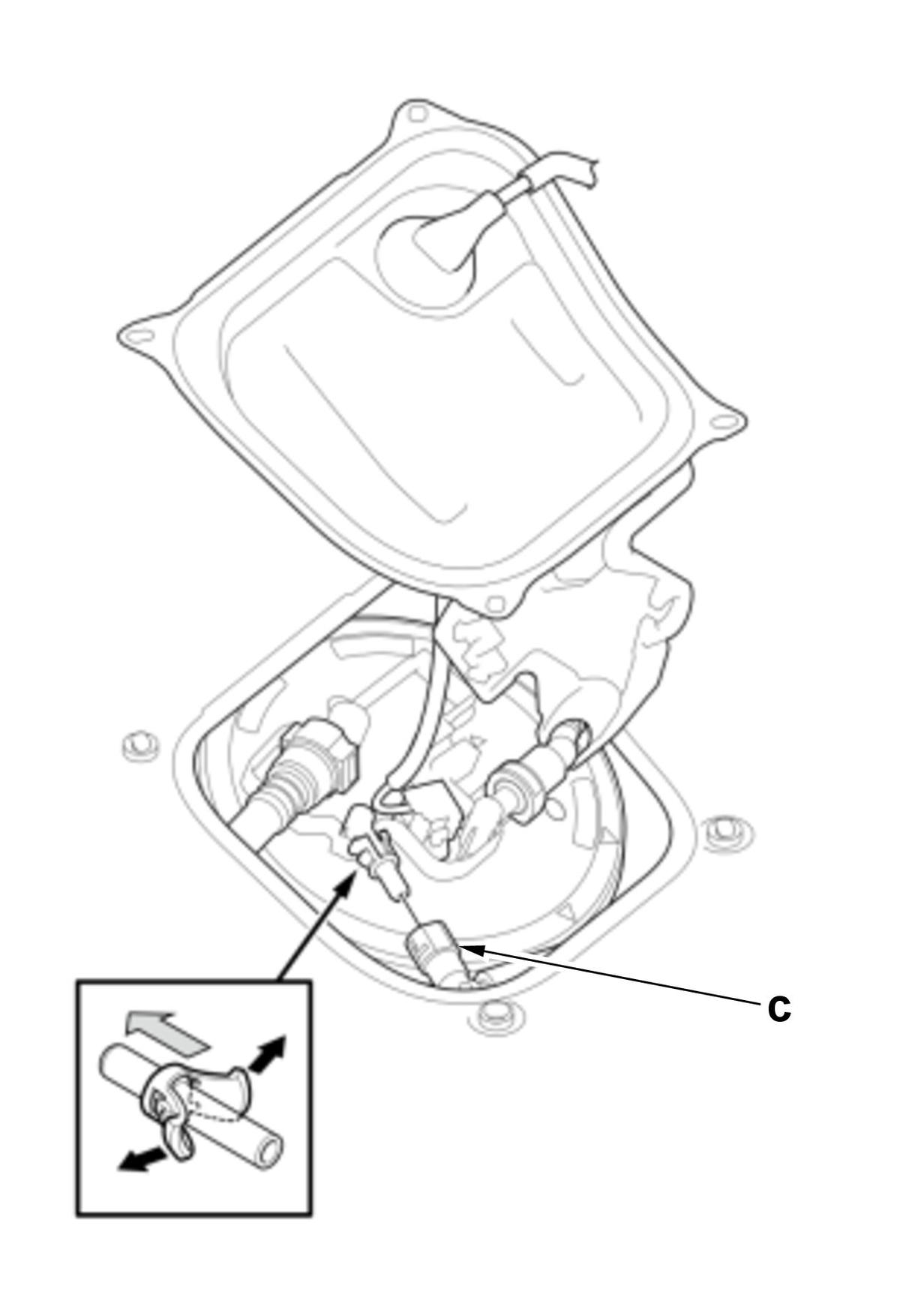

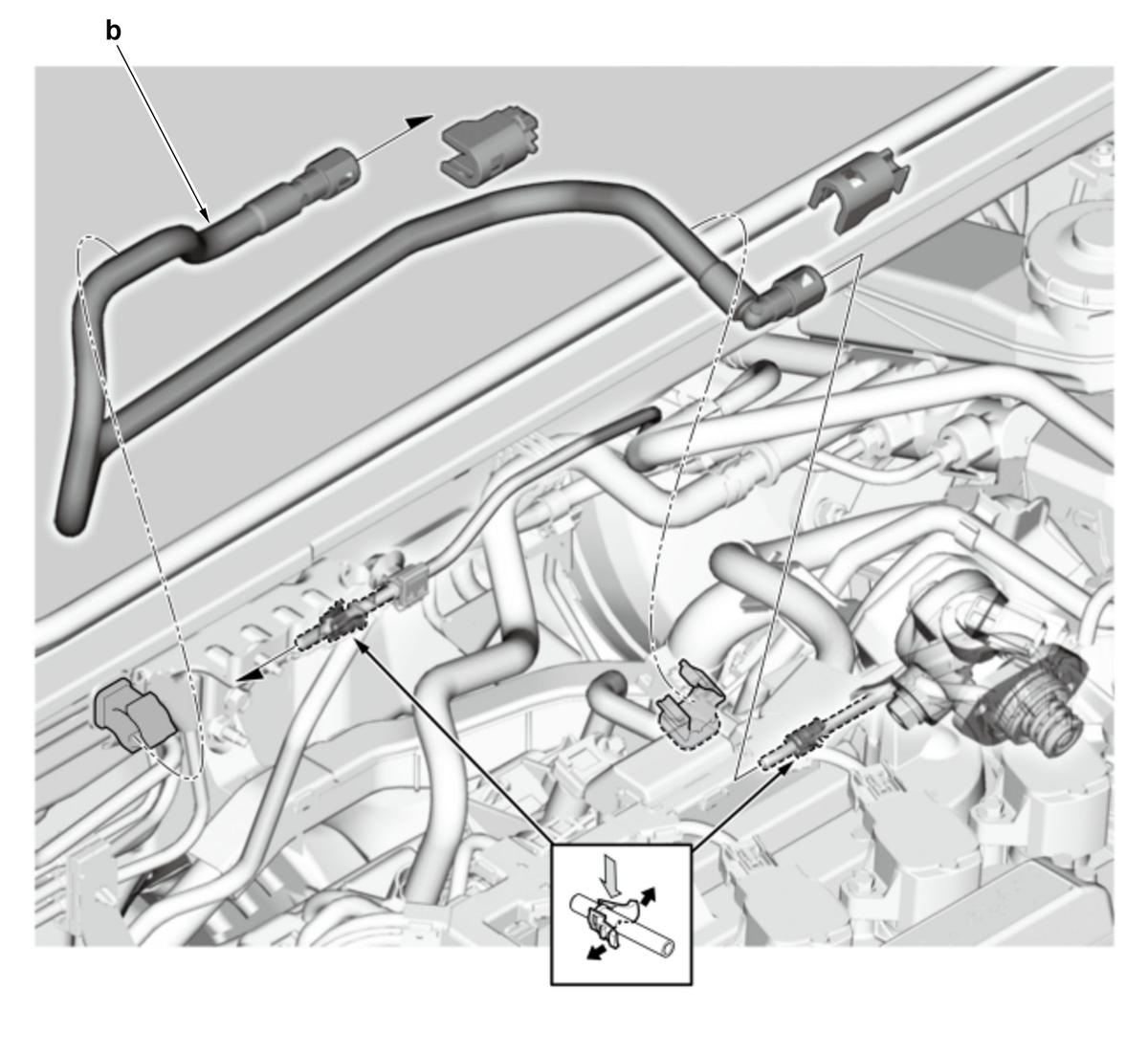

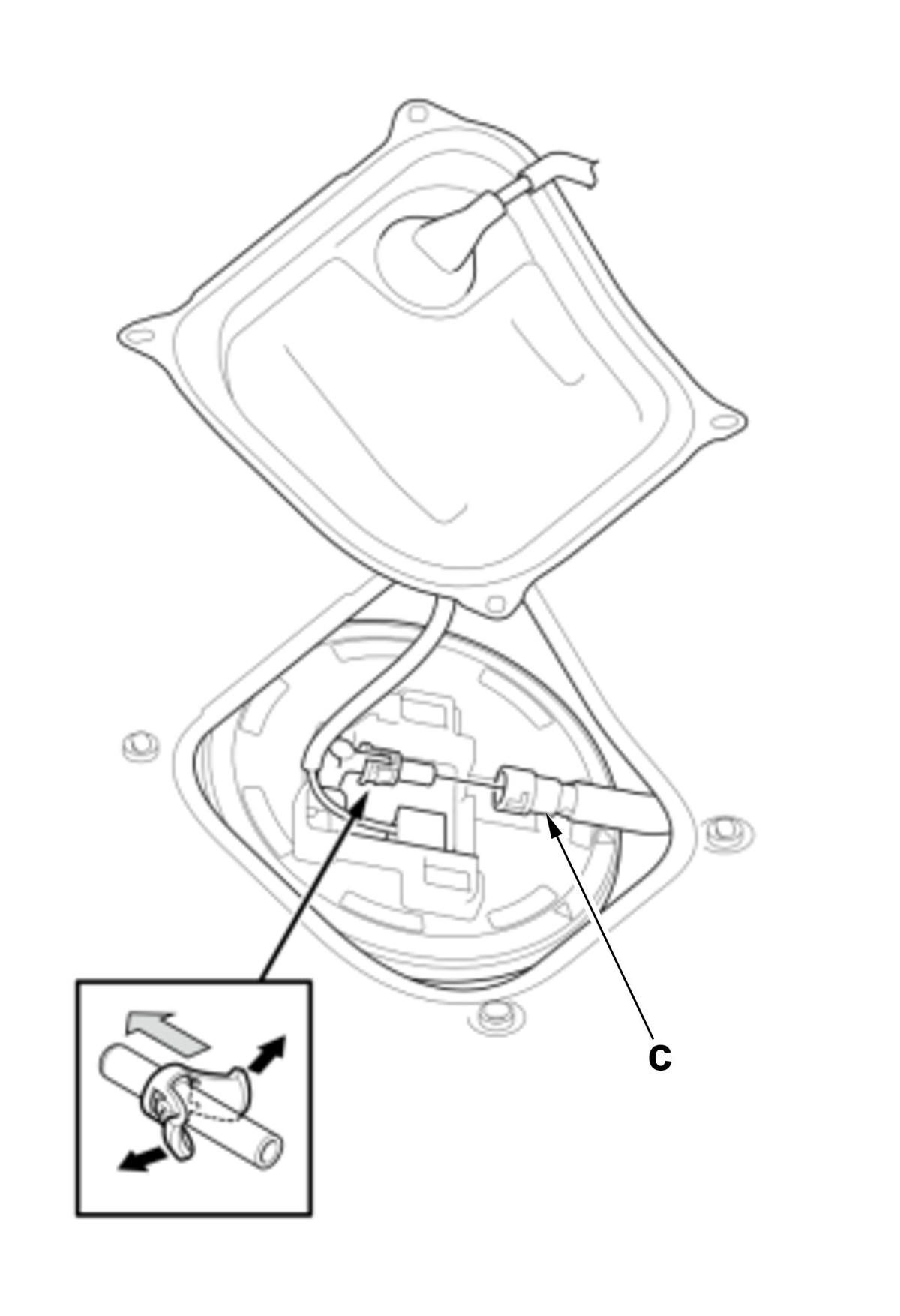

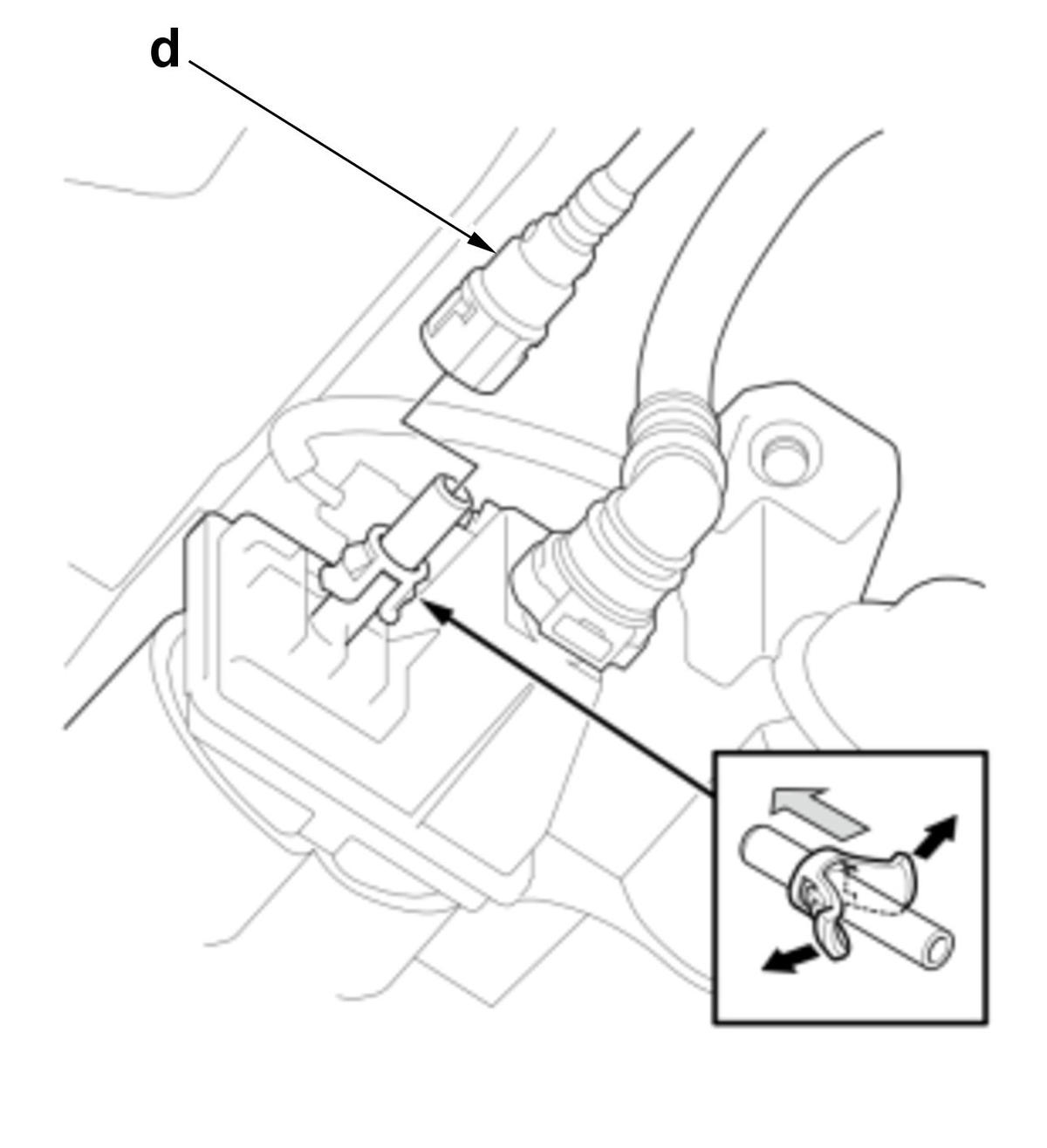

Retainer Details (Figure 2, 3, 4, and 5)

Figure 2

Courtesy of HONDA, U.S.A., INC.

Figure 3 (USA and Canada Models)

Courtesy of HONDA, U.S.A., INC.

Figure 4 (Mexico Models)

Courtesy of HONDA, U.S.A., INC.

Figure 5

Courtesy of HONDA, U.S.A., INC.
