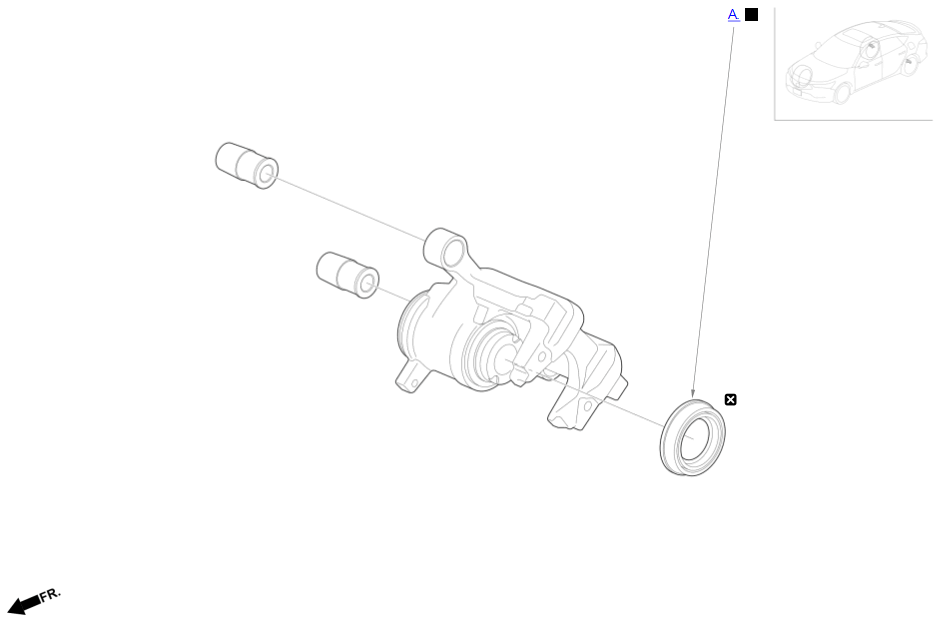

   Figure 1

   Courtesy of HONDA, U.S.A., INC.

   ■ Installation

   1. Install the piston boot onto the piston.

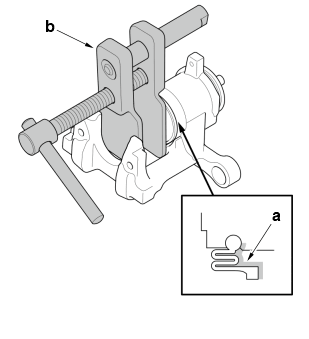

   Lubricant Specifications (Figure 1)

   Position	Type
   a	ATE Brake Cylinder Paste (Commercially Available) or Equivalent

   2. Press in the piston.

   NOTICE:

   • Do not press the piston diagonally, and do not force it.
   • Be careful not to damage the piston boot when pressing in the piston.

   Tool Details (Figure 1)

   Name
   b	Brake Caliper Piston Compressor Tool (Commercially Available)

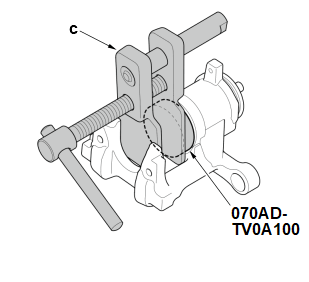

   Figure 2

   Courtesy of HONDA, U.S.A., INC.

   3. Set the piston boot in place on the caliper body.

   4. Press in the piston boot.

   Tool Details (Figure 2)

   Name
   c	Brake Caliper Piston Compressor Tool (Commercially Available)
