Engine Block Assembly Component Location Index (3. 5L Engine)

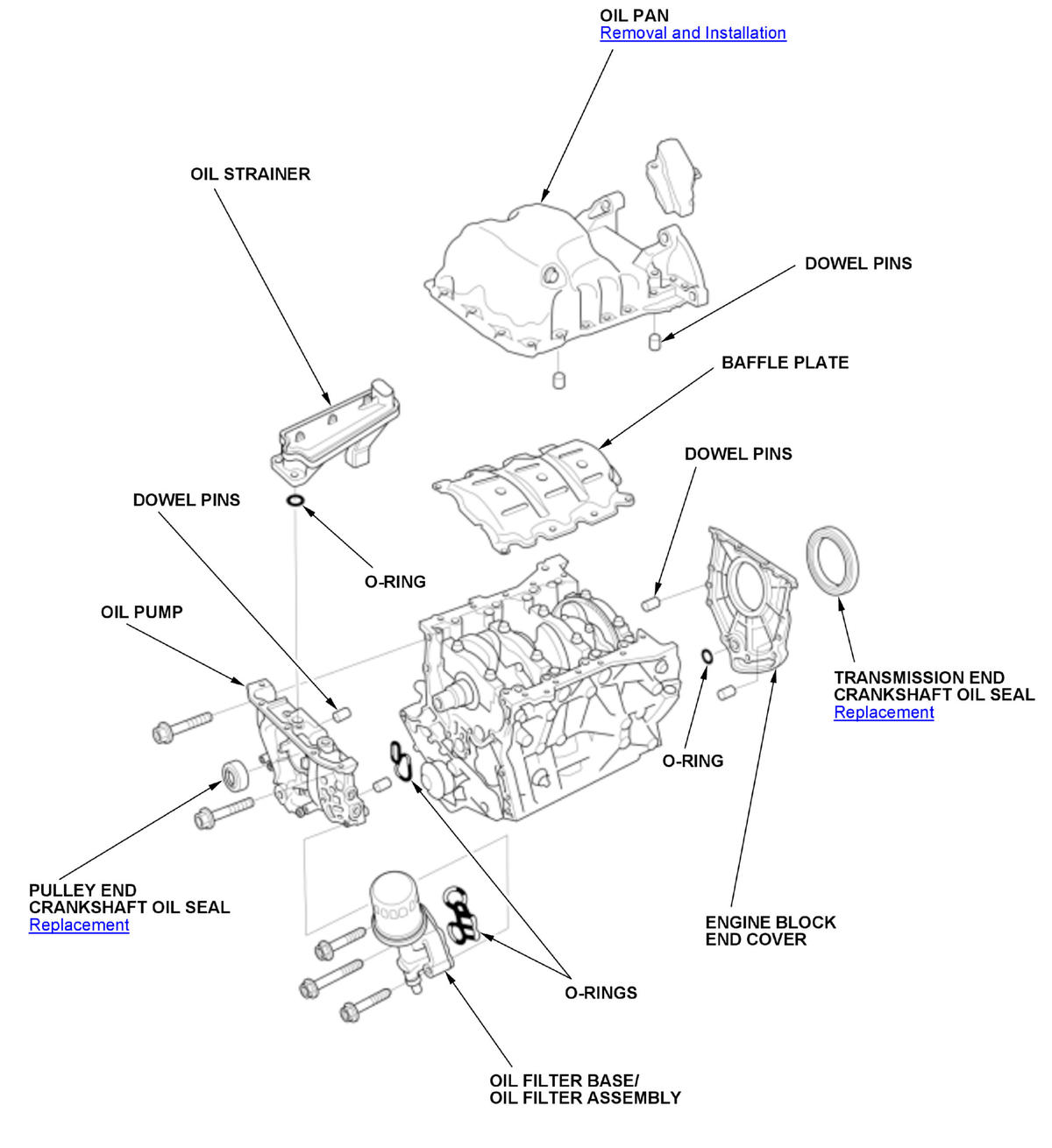

GHH518715

Courtesy of HONDA, U.S.A., INC.

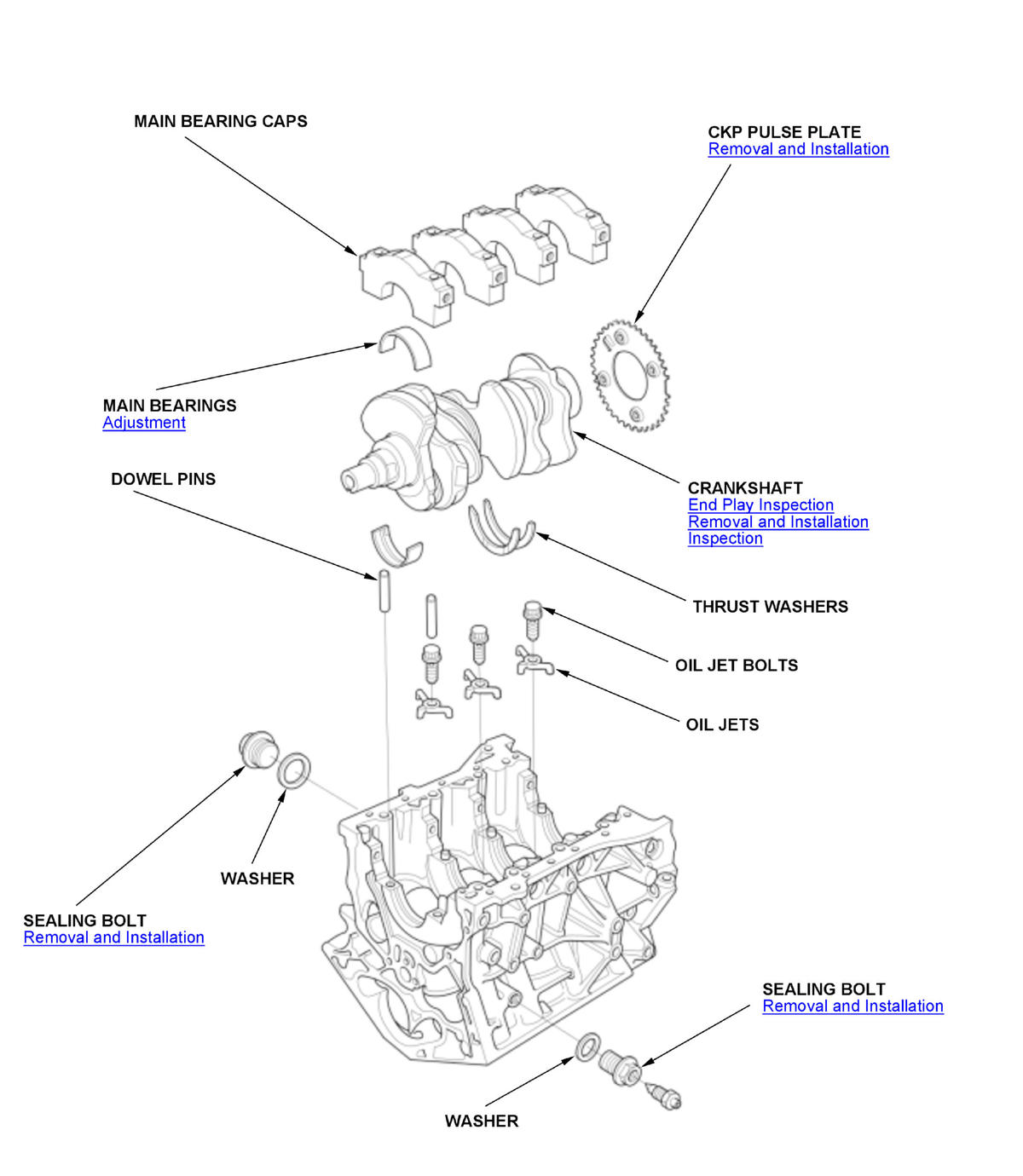

GHH518716

Courtesy of HONDA, U.S.A., INC.

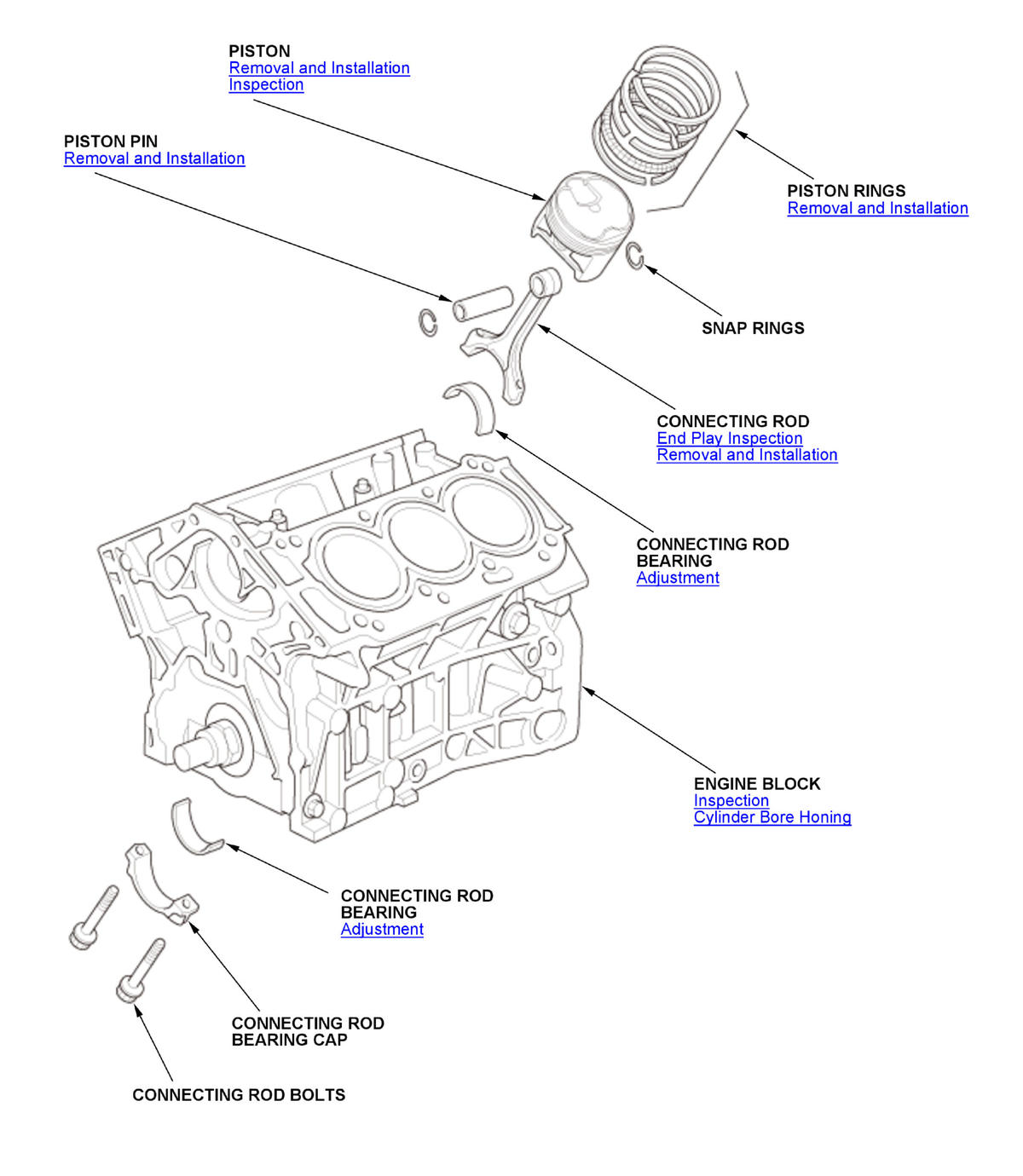

GHH518717

Courtesy of HONDA, U.S.A., INC.
