Power Seats Circuit Diagram (3.0L Engine)

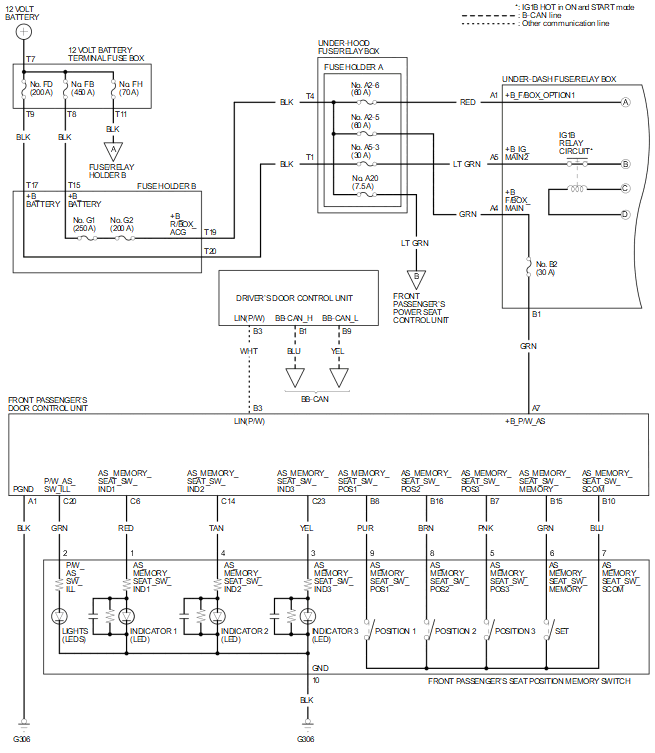

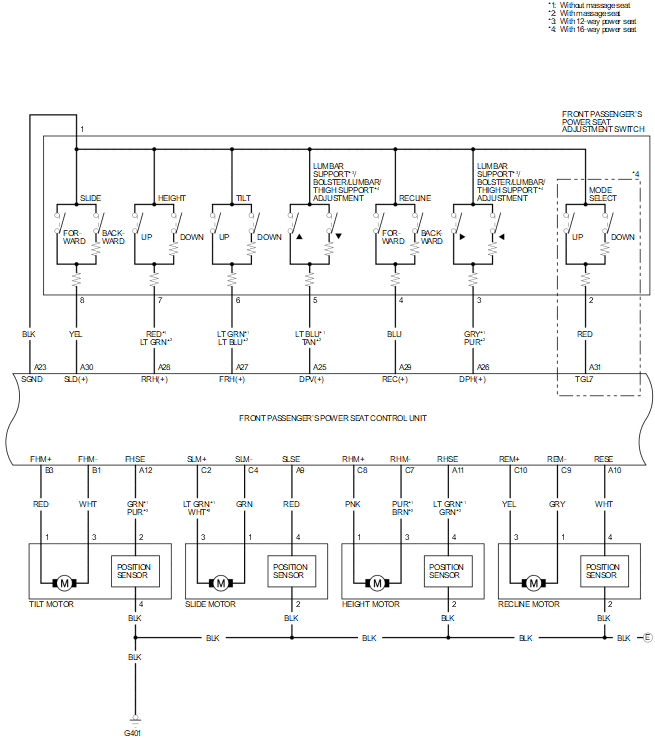

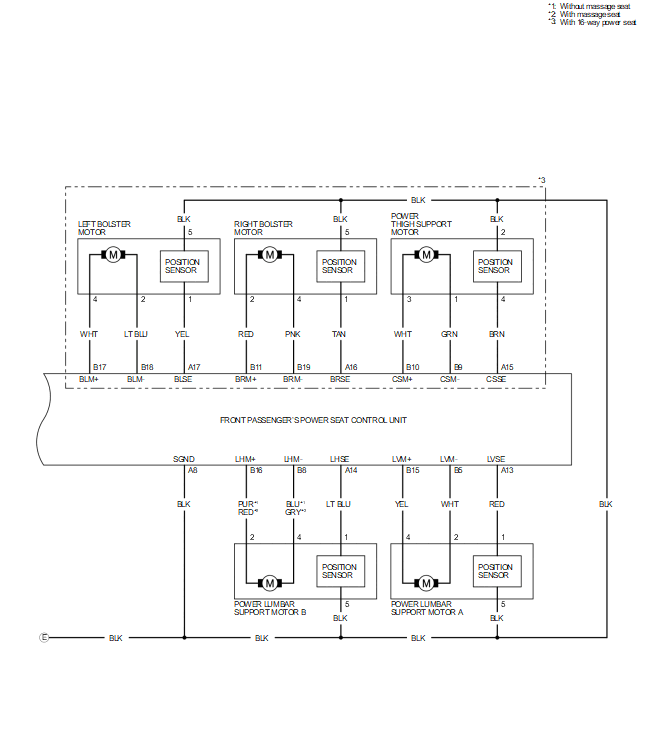

Front Passenger's Power Seat

NOTE: For details of the CAN circuit, refer to the Network Communications Circuit Diagram.

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.
