Panoramic Glass Roof Circuit Diagram (3.5L Engine)

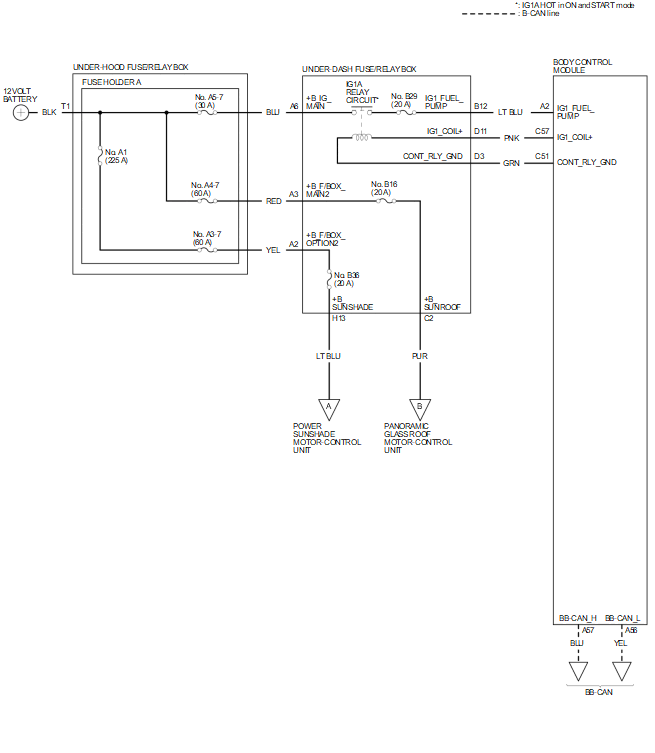

GHH659217

Courtesy of HONDA, U.S.A., INC.

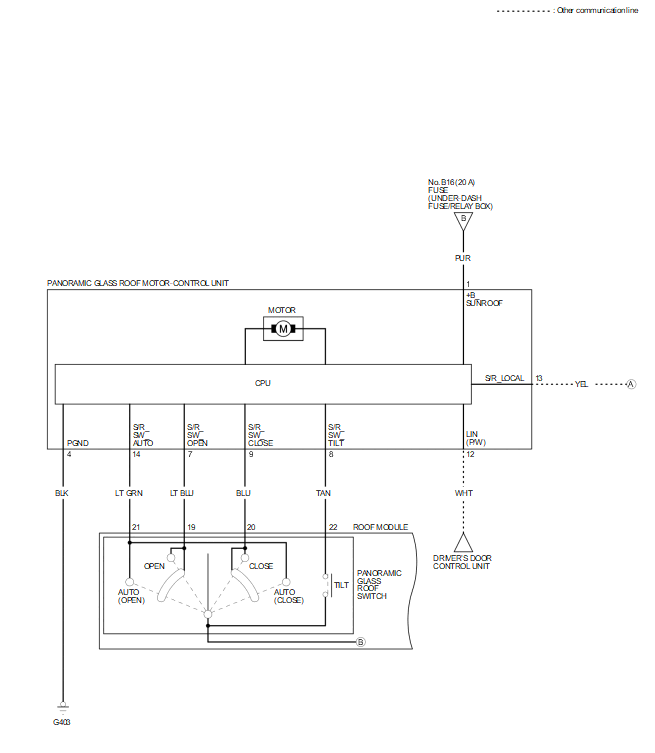

GHH659218

Courtesy of HONDA, U.S.A., INC.

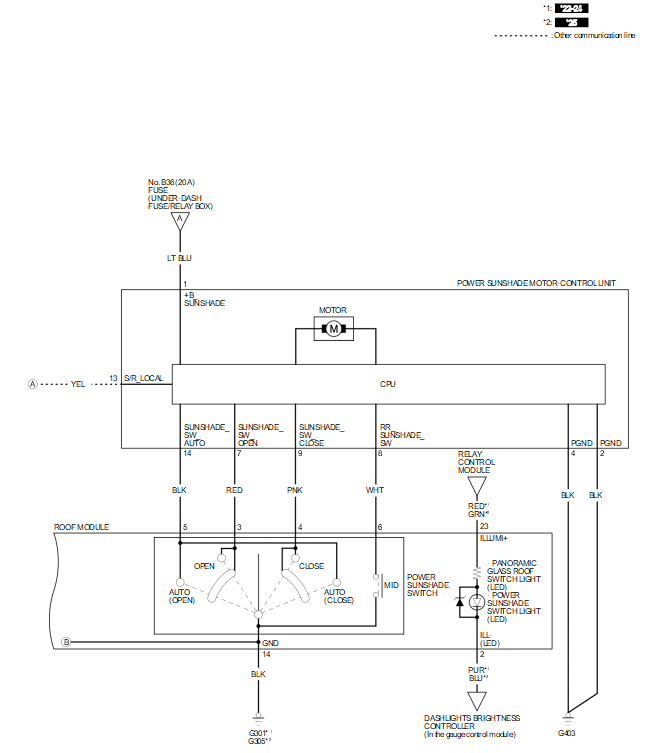

GHH659219

Courtesy of HONDA, U.S.A., INC.
