Repair Procedure
How to use this service information .
NOTICE:
When working with a vehicle equipped with the electronic air suspension, be sure to set it to the leveling off mode to prevent unexpected operation. Refer to the Electronic Air Suspension System Service Precautions - Refer to: Electronic Air Suspension System Connector Fitting Precautions or Electronic Air Suspension System Service Precautions for the procedure.
NOTE: Unless otherwise indicated, illustrations used in procedures are for the models with integrated driver support system.
: Torque, N.m (lbf.ft)
: Replace
: Warning/Caution
: Inspection/Adjustment
*: Learning
: SPL Tool
: Required Removal

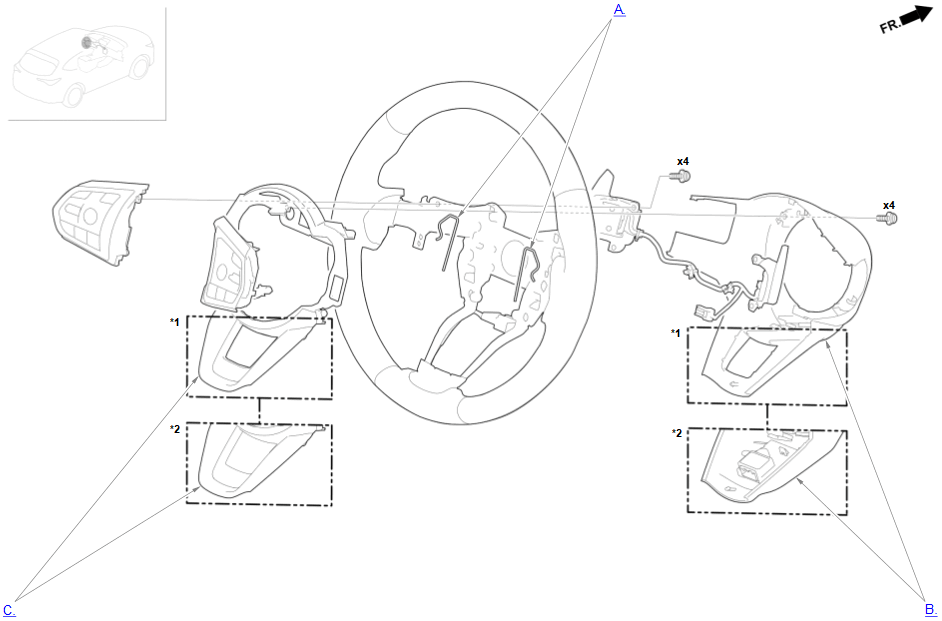

*1: With integrated driver support system
*2: With integrated driver support system (camera and five radars)
With Integrated Driver Support System (Camera and Five Radars)
: Torque, N.m (lbf.ft)
: Replace
: Warning/Caution
: Inspection/Adjustment
*: Learning
: SPL Tool
: Required Removal
- A.-
NOTICE:
If you are replacing the driver's airbag after a deployment, refer to Component Replacement/Inspection After Deployment - Refer to: SRS Component Replacement/Inspection After Deployment or Airbag and Tensioner Disposal for a complete list of other parts that must also be replaced.
NOTE: The spring can be removed without removing the steering wheel.
Key Information
Do the following before starting your work.
Remove:
Sub-Procedure

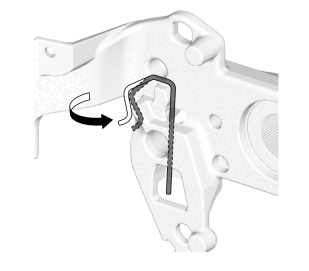

Figure 1
Removal
- Refer to figure 1.

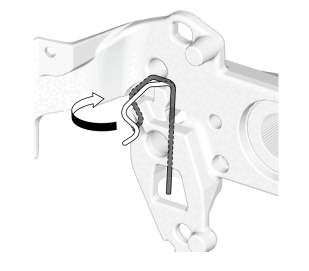

Figure 2
Installation
- Refer to figure 2.
- B.-
Sub-Procedure
Installation
- Refer to figure 1 and 2.

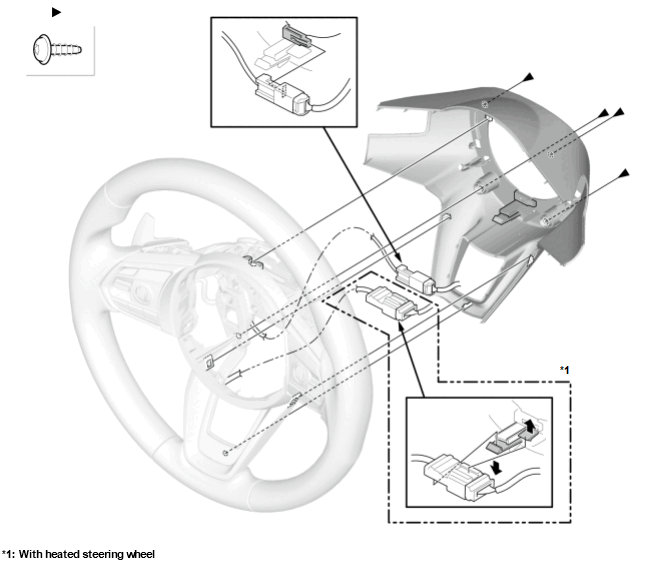

Figure 1 (With integrated driver support system)

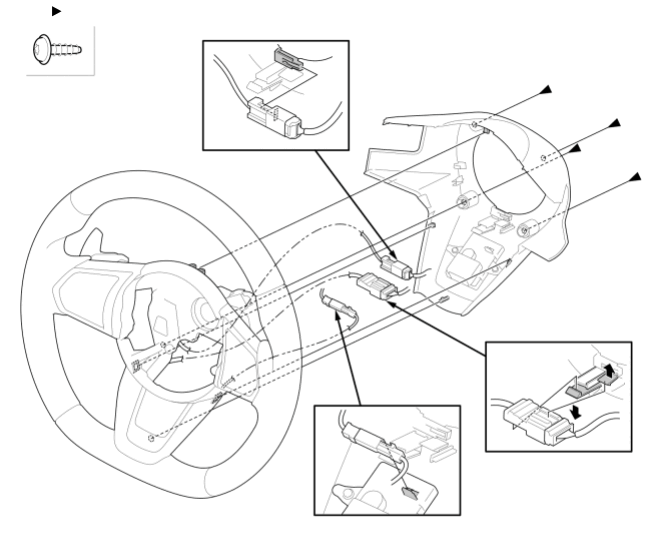

Figure 2 (With integrated driver support system (camera and five radars))
- C.-
