Door Lock Actuator Test: Test

How to use this service information .

NOTICE:

When working with a vehicle equipped with the electronic air suspension, be sure to set it to the leveling off mode to prevent unexpected operation. Refer to the Electronic Air Suspension System Service Precautions - Refer to: Electronic Air Suspension System Connector Fitting Precautions or Electronic Air Suspension System Service Precautions for the procedure.

Front

1. Front Door Lock Actuator - Test

   Preconditions

   • Front Door Panel Removed

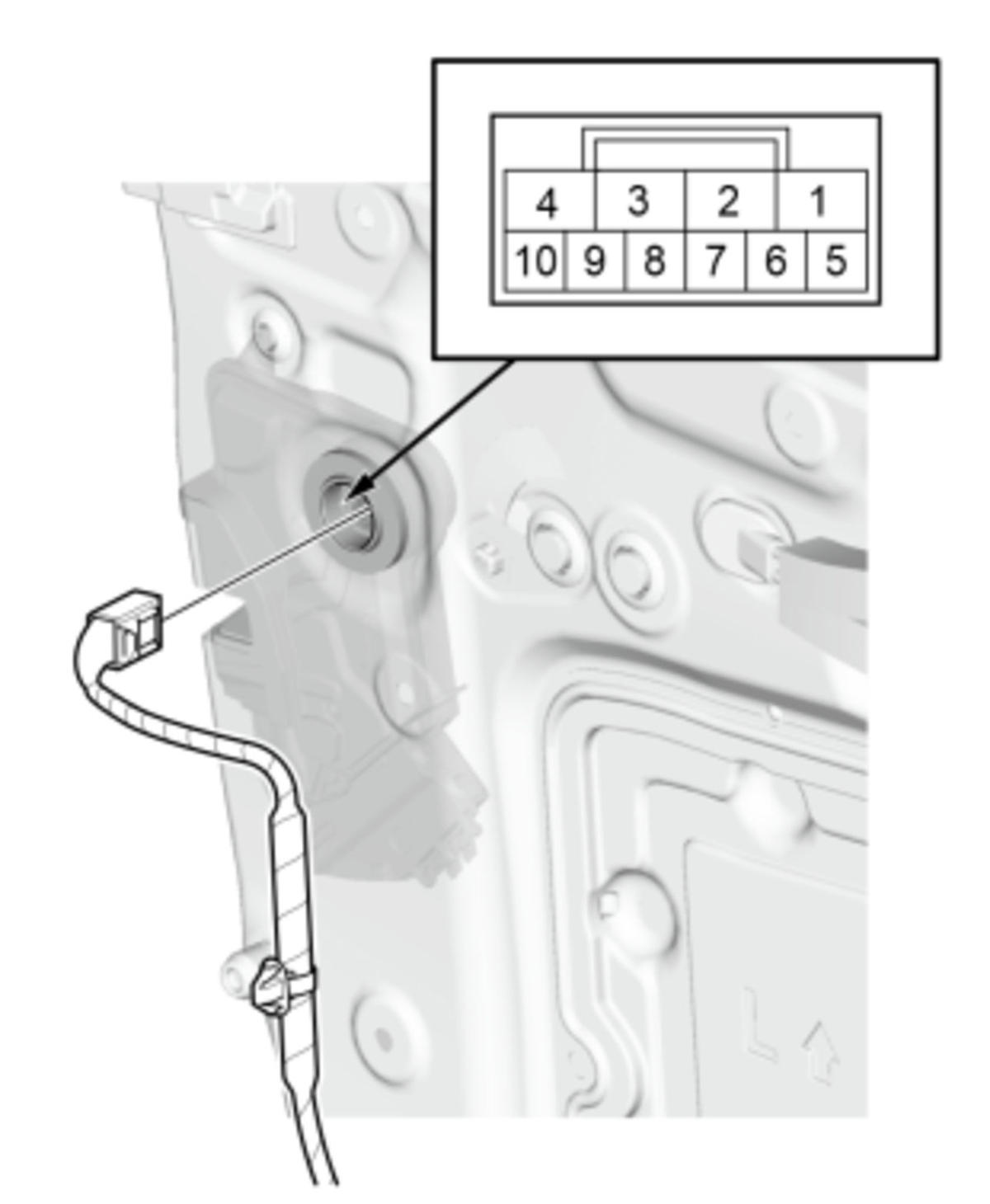

   Driver's (Figure 1)

   Courtesy of HONDA, U.S.A., INC.

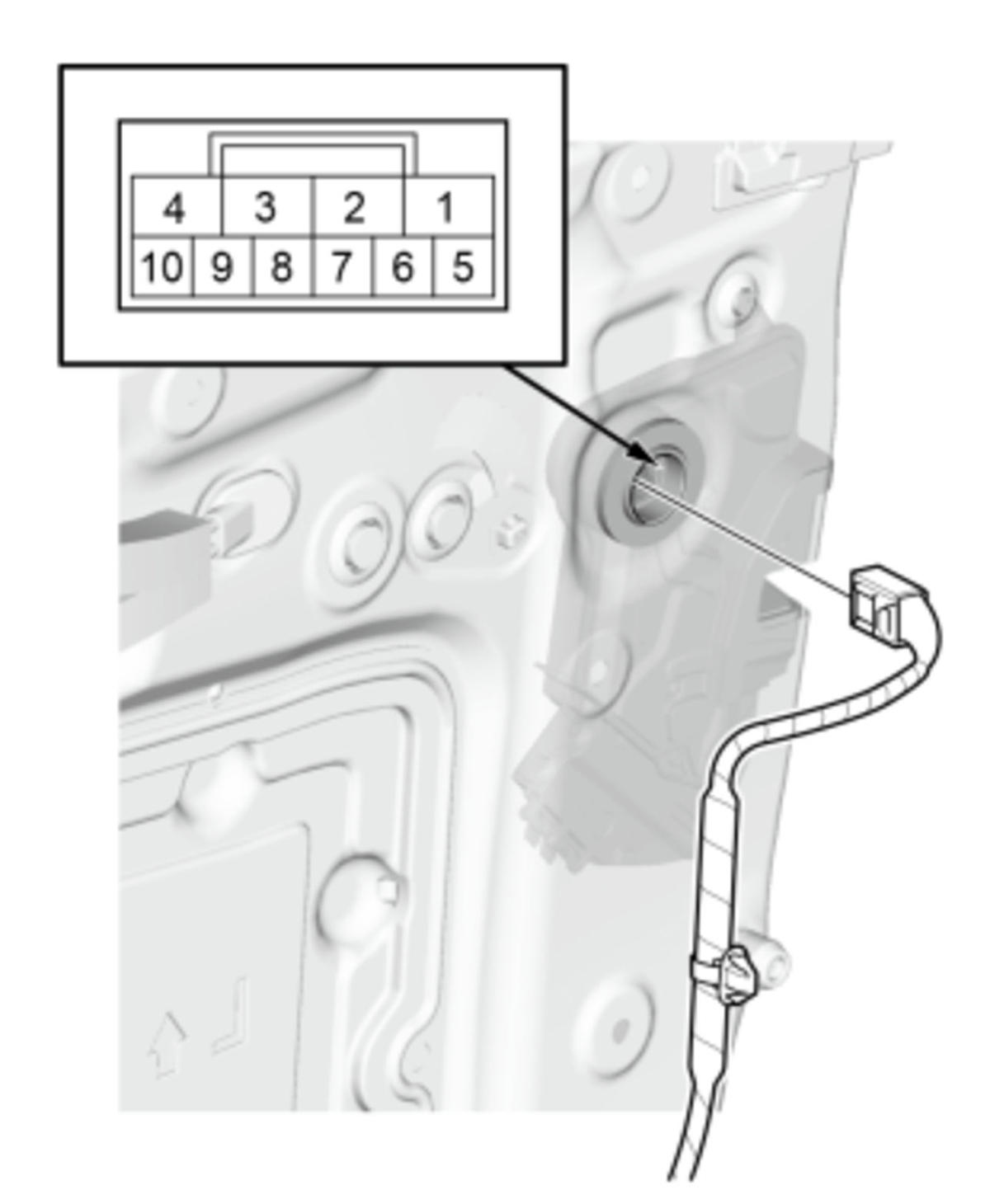

   Front passenger's (Figure 2)

   Courtesy of HONDA, U.S.A., INC.

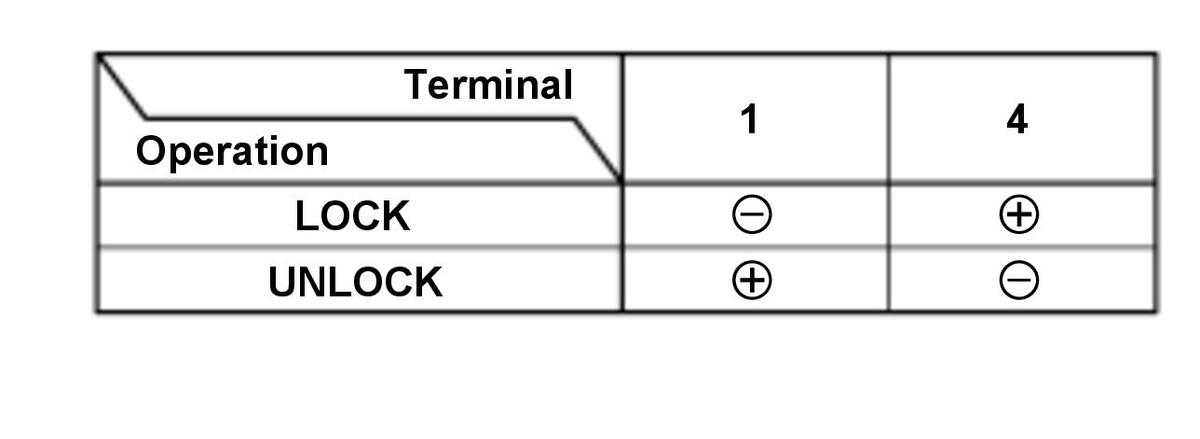

   Driver's and front passenger's (Figure 3)

   Courtesy of HONDA, U.S.A., INC.

   Procedure/Specifications

   • Check the actuator operation by connecting power and ground according to the table. (Figure 1, 2, and 3)

     NOTICE:  To prevent damage to the actuator, apply battery voltage only momentarily.

   Result

   • If the result is not as specified, replace the front door latch .

   Rear

2. Rear Door Lock Actuator - Test

   Preconditions

   • Rear Door Panel Removed

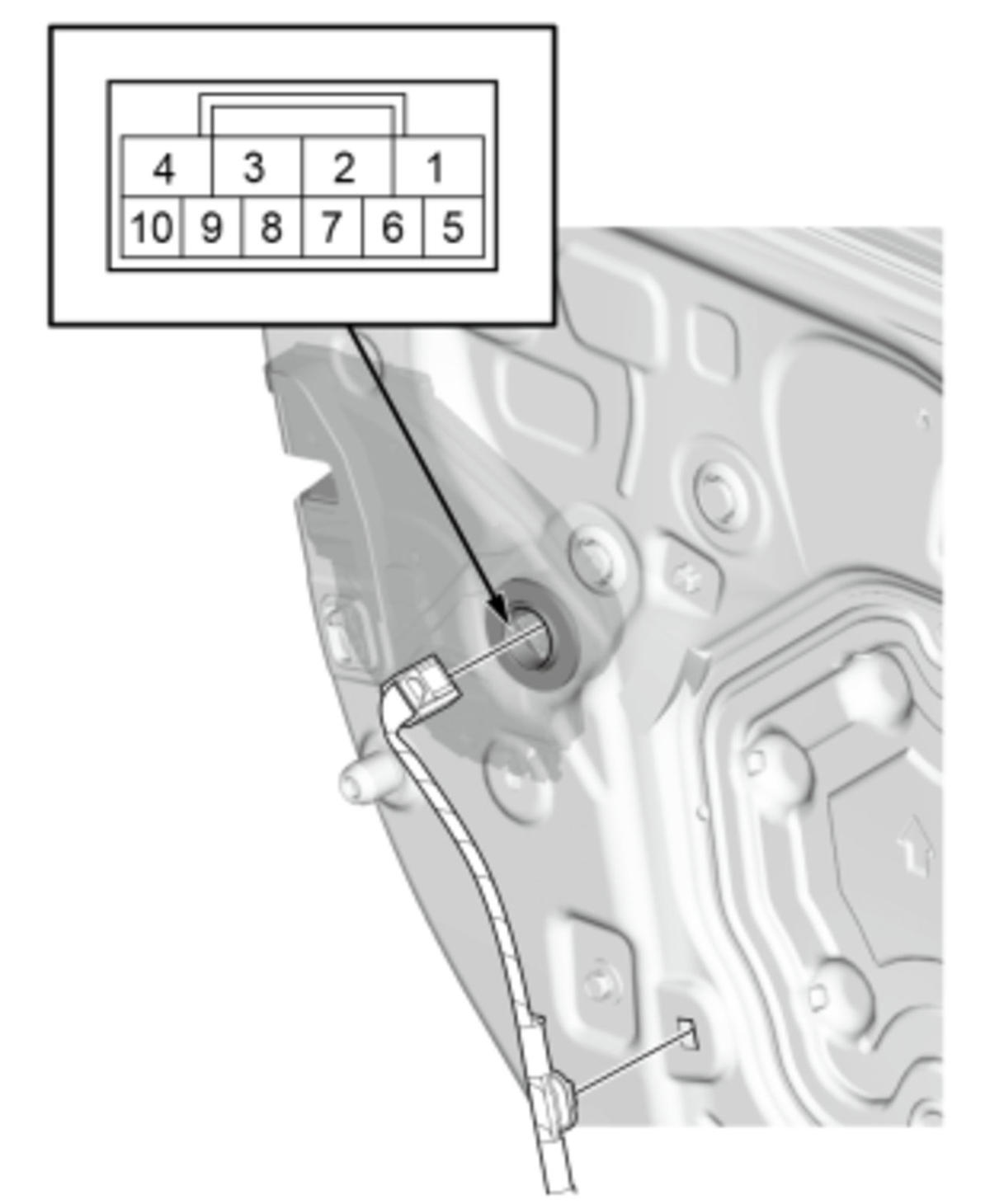

   Rear (Figure 1)

   Courtesy of HONDA, U.S.A., INC.

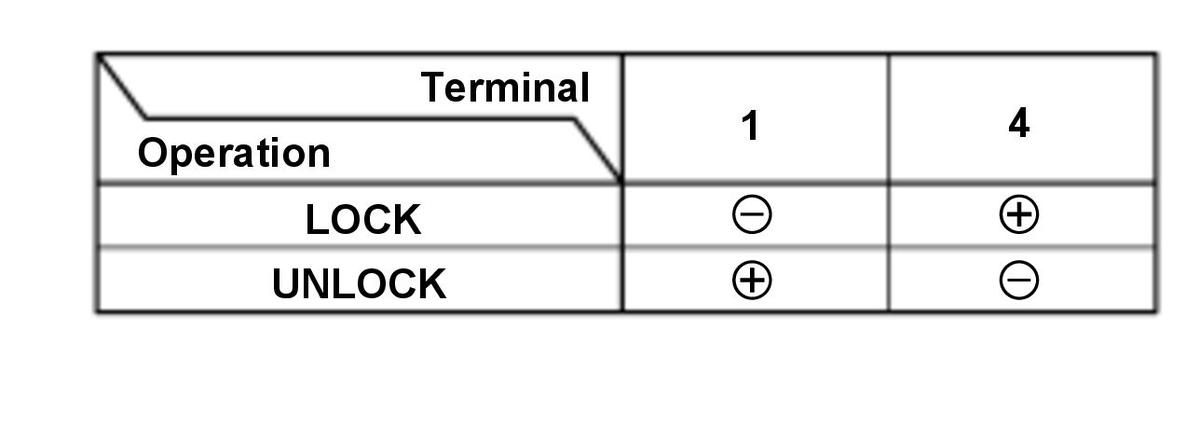

   Rear (Figure 2)

   Courtesy of HONDA, U.S.A., INC.

   Procedure/Specifications

   • Check the actuator operation by connecting power and ground according to the table. (Figure 1 and 2)

     NOTICE:  To prevent damage to the actuator, apply battery voltage only momentarily.

   Result

   • If the result is not as specified, replace the rear door latch .
