DTC Advanced Diagnostics: P0341 (3.5L Engine)
DTC P0341: Camshaft Position (CMP) Sensor A and Crankshaft Position (CKP) Sensor Incorrect Phase Detected
General Description

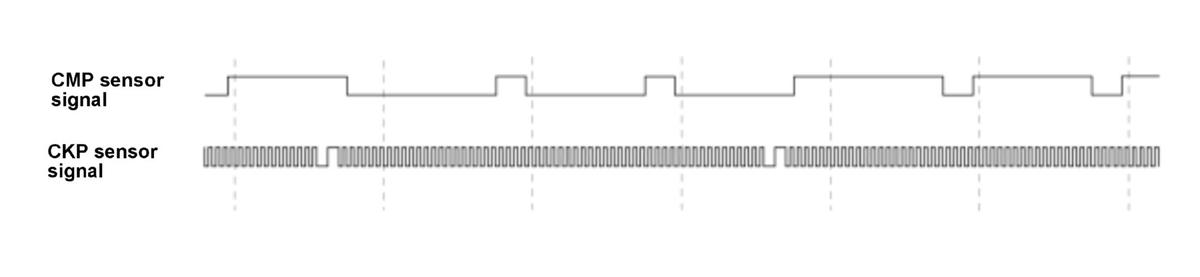

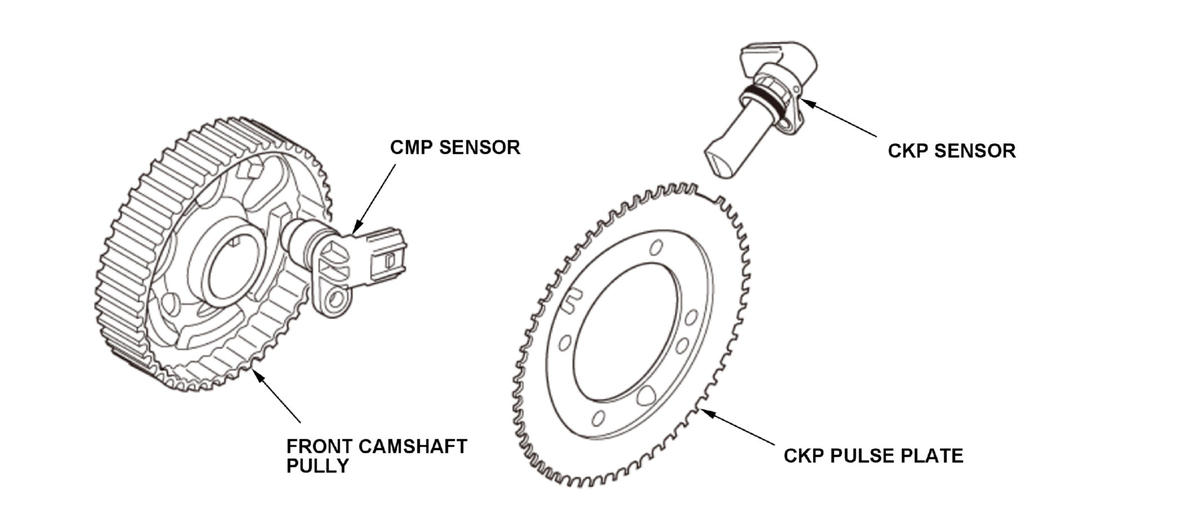

The vehicle equips with the camshaft position (CMP) sensor which detects the camshaft phase, and the crankshaft position (CKP) sensor which detects the crankshaft phase. The pulsing signals are input to the powertrain control module (PCM) and determines the advance or the retard of the camshaft phase according to the signals from the CKP sensor and CMP sensor. After the engine is started, angle is calculated from the deviation, and if it is not within a specified range, the PCM detects a malfunction and stores a DTC.
Monitor Execution, Sequence, Duration, DTC Type
| Execution | Continuous |
| Sequence | None |
| Duration | 5.0 seconds or more |
| DTC Type | Two drive cycles, MIL on |
Enable Conditions
| Condition | Minimum | Maximum |
|---|---|---|
| Engine speed [Engine Speed] | 600 RPM | - |
[ ]: HDS Parameter
Malfunction Threshold
Either of the conditions is met for at least 5.0 seconds:
- The camshaft angle is drifted from crankshaft angle for -21.7 deg. or more.
- The camshaft angle is drifted from crankshaft angle for +21.9 deg. or more
Possible Cause
The causes shown may not be a complete list of all potential problems, and it is possible that there may be other causes.
- Timing belt poor installation
Confirmation Procedure
Operating Condition
Start the engine and let it idle. When the diagnosis does not finish, allow the engine cool to an engine coolant temperature [ECT Sensor 1] of ambient temperature, then restart the engine, and let it idle.
Diagnosis Details
Conditions for setting the DTC
When a malfunction is detected during the first drive cycle, a Pending DTC is stored in the PCM memory. If the malfunction returns in the next (second) drive cycle, the MIL comes on and a Confirmed DTC, the freeze data, and the on-board snapshot are stored.
Conditions for clearing the DTC
The MIL is cleared if the malfunction does not return in three consecutive trips in which the diagnostic runs. The MIL, the Pending DTC, the Confirmed DTC, the freeze data, and the on-board snapshot can be cleared with the scan tool clear command.
