Second Row Seat with One-Touch Access Component Location Index

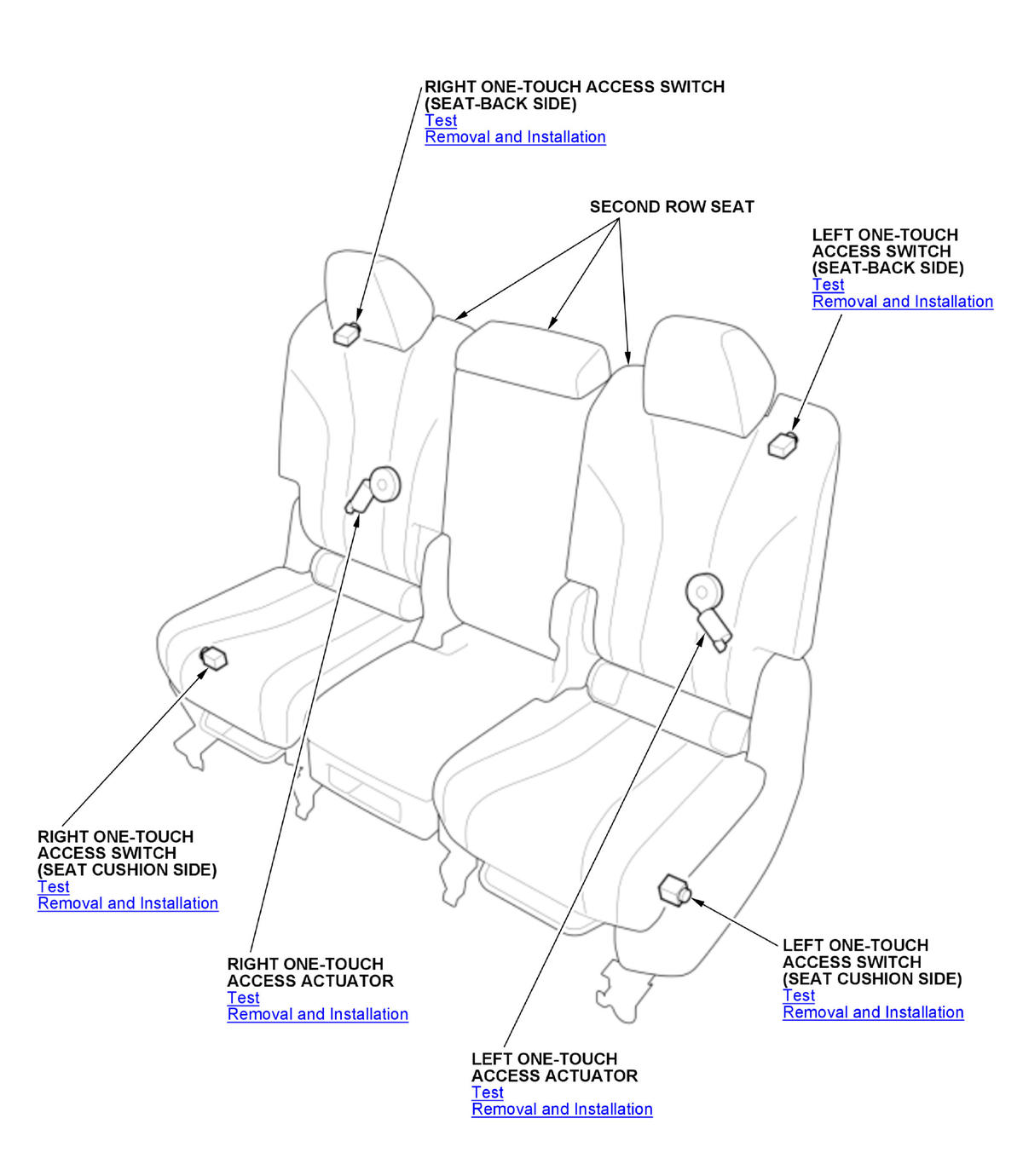

GHH524508

Courtesy of HONDA, U.S.A., INC.

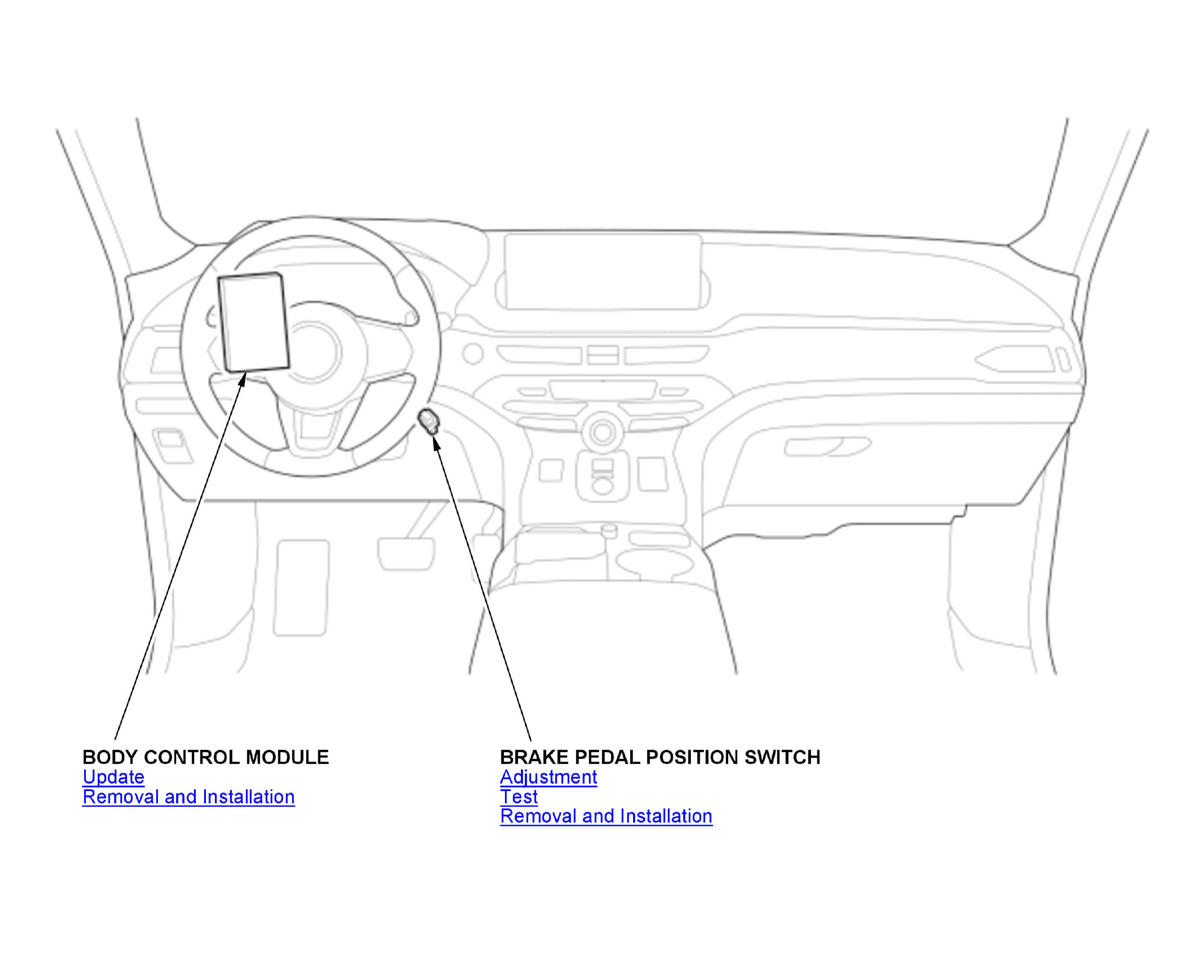

GHH524509

Courtesy of HONDA, U.S.A., INC.

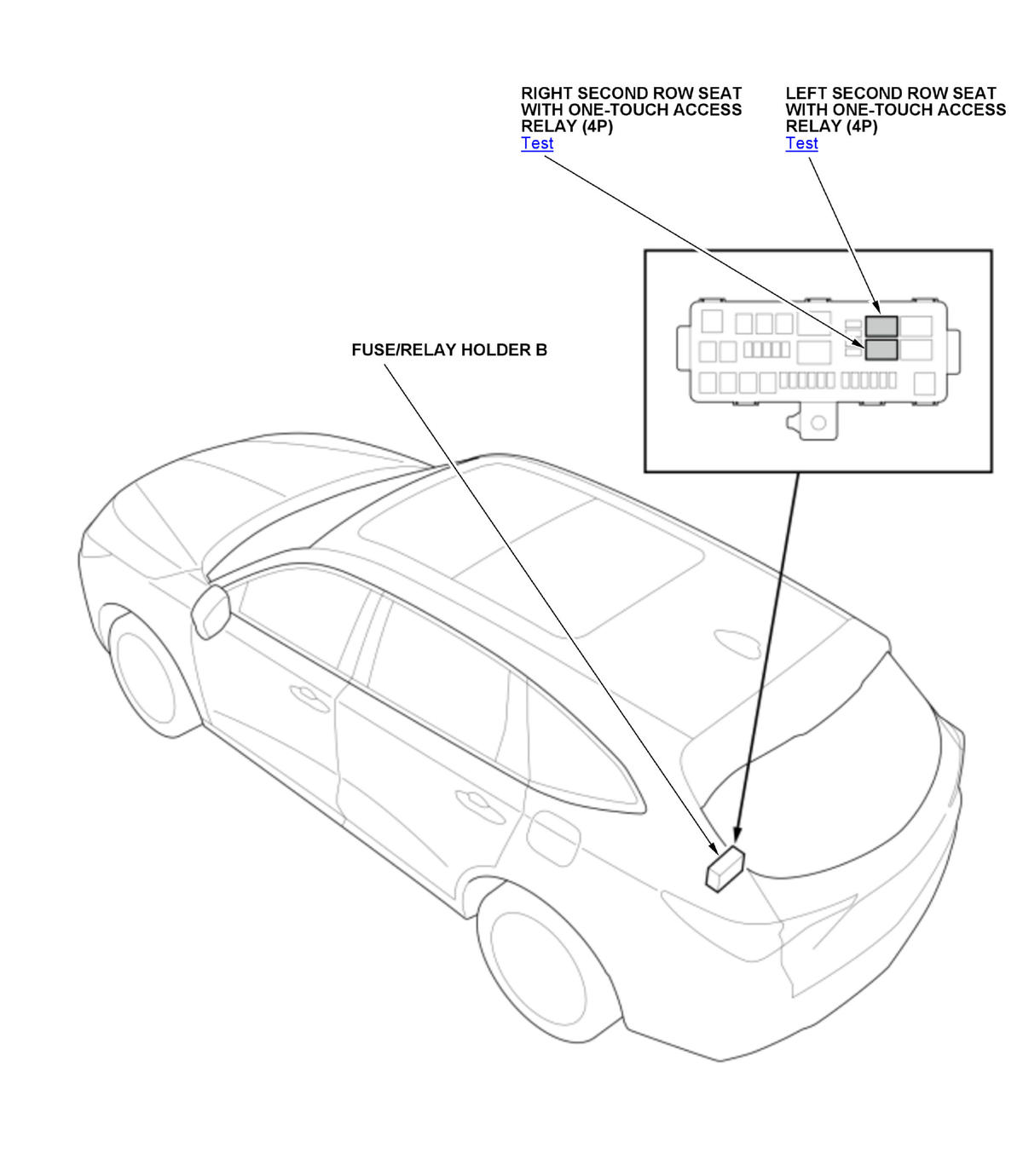

GHH524510

Courtesy of HONDA, U.S.A., INC.
