Seat Position Memory System Component Location Index

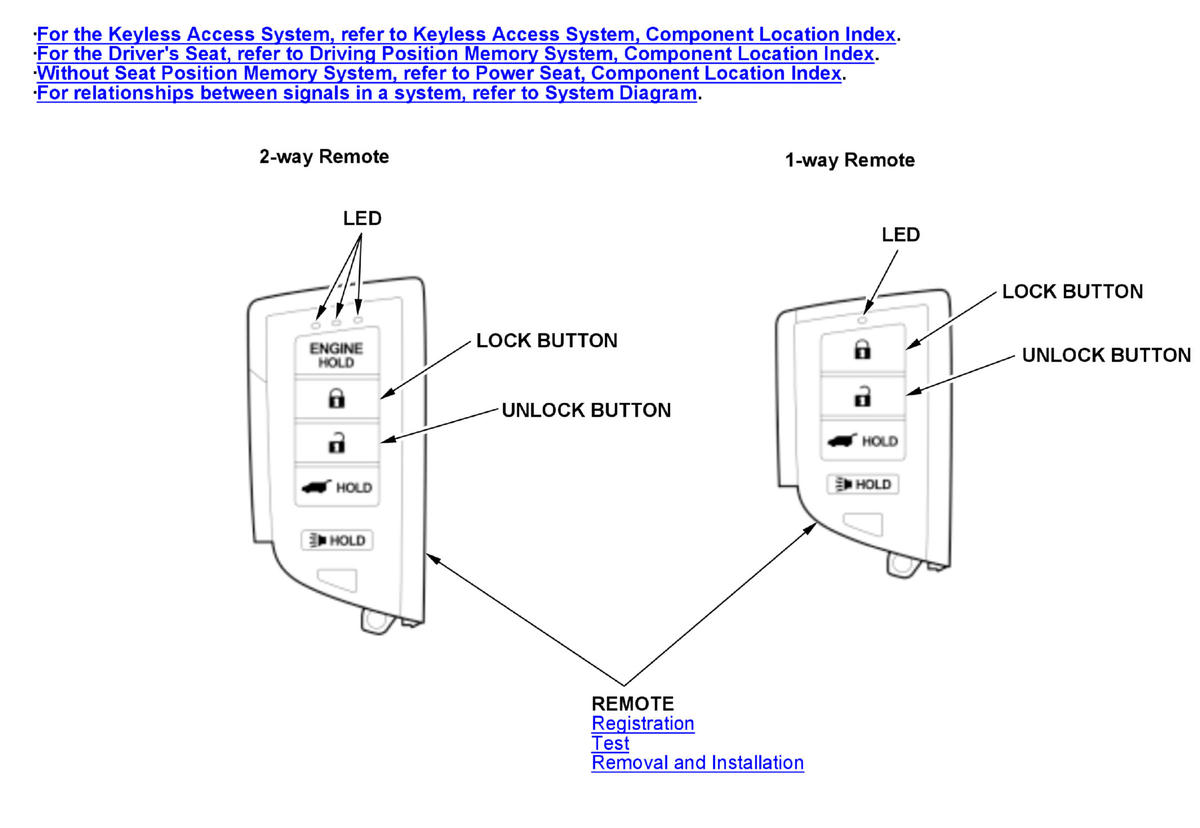

GHH524497

Courtesy of HONDA, U.S.A., INC.

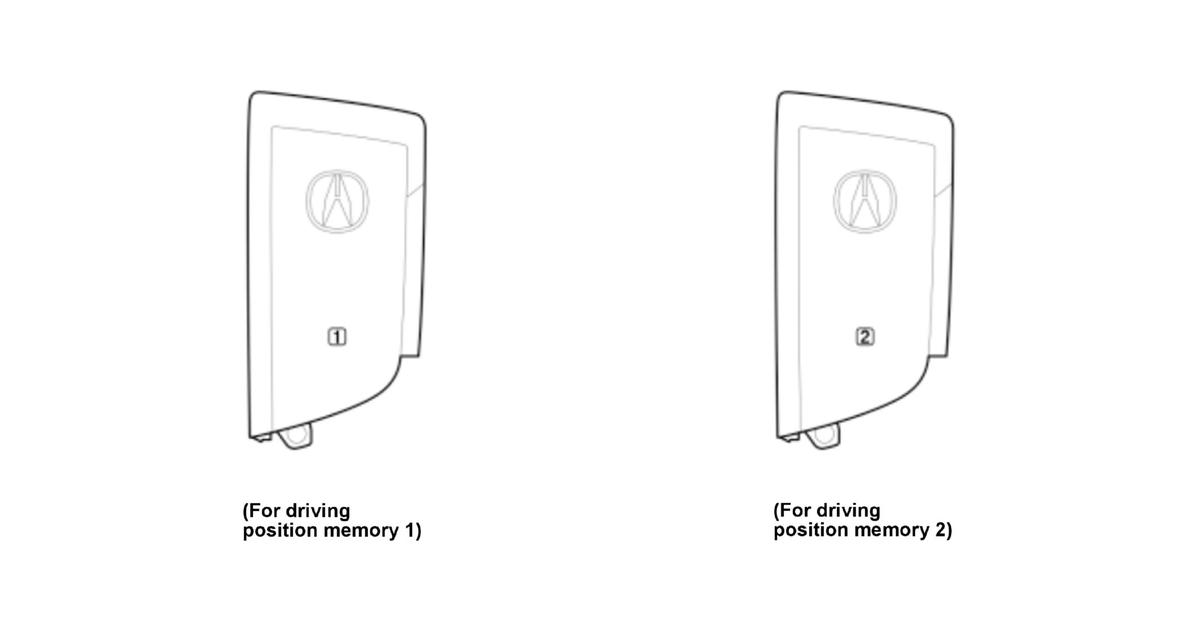

GHH524498

Courtesy of HONDA, U.S.A., INC.

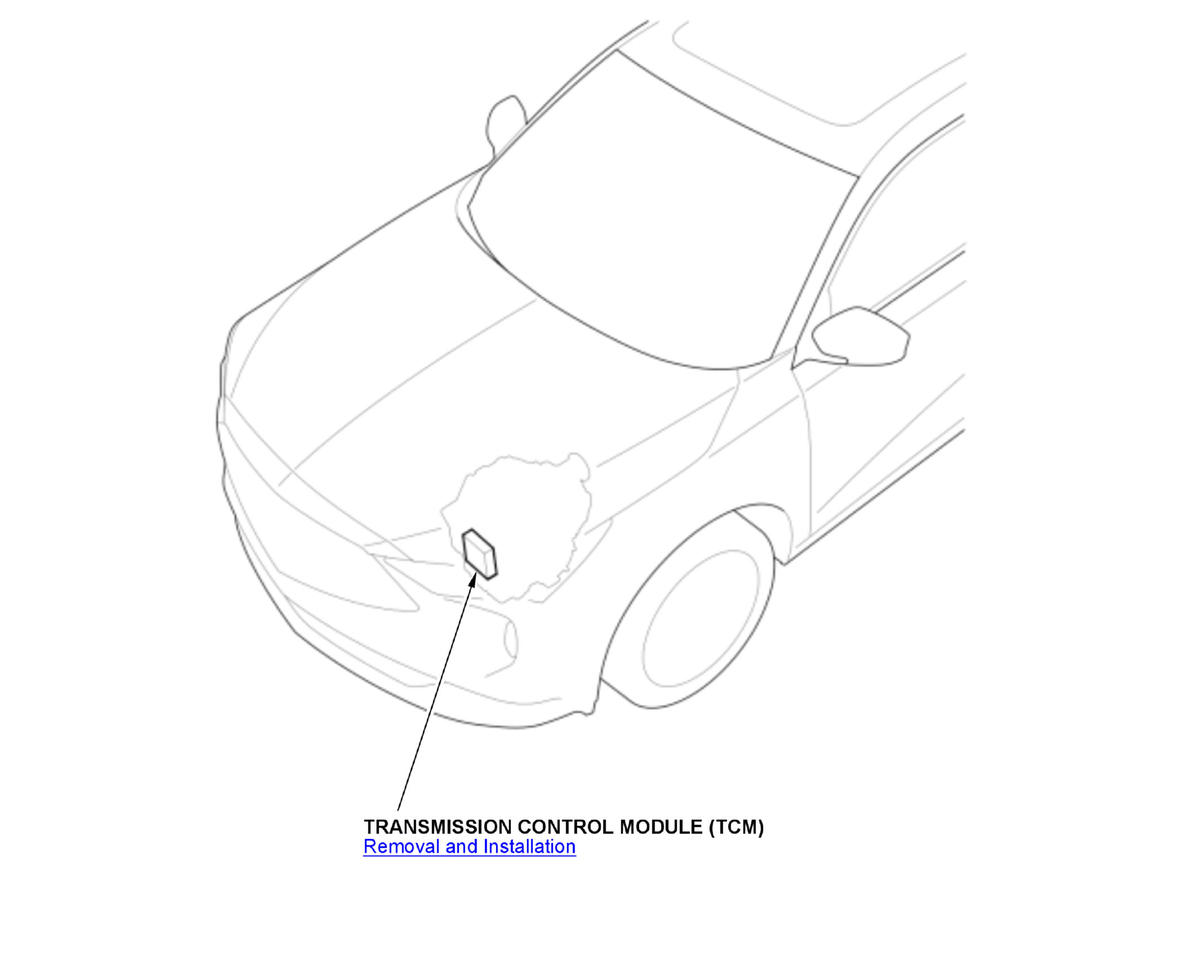

GHH524499

Courtesy of HONDA, U.S.A., INC.

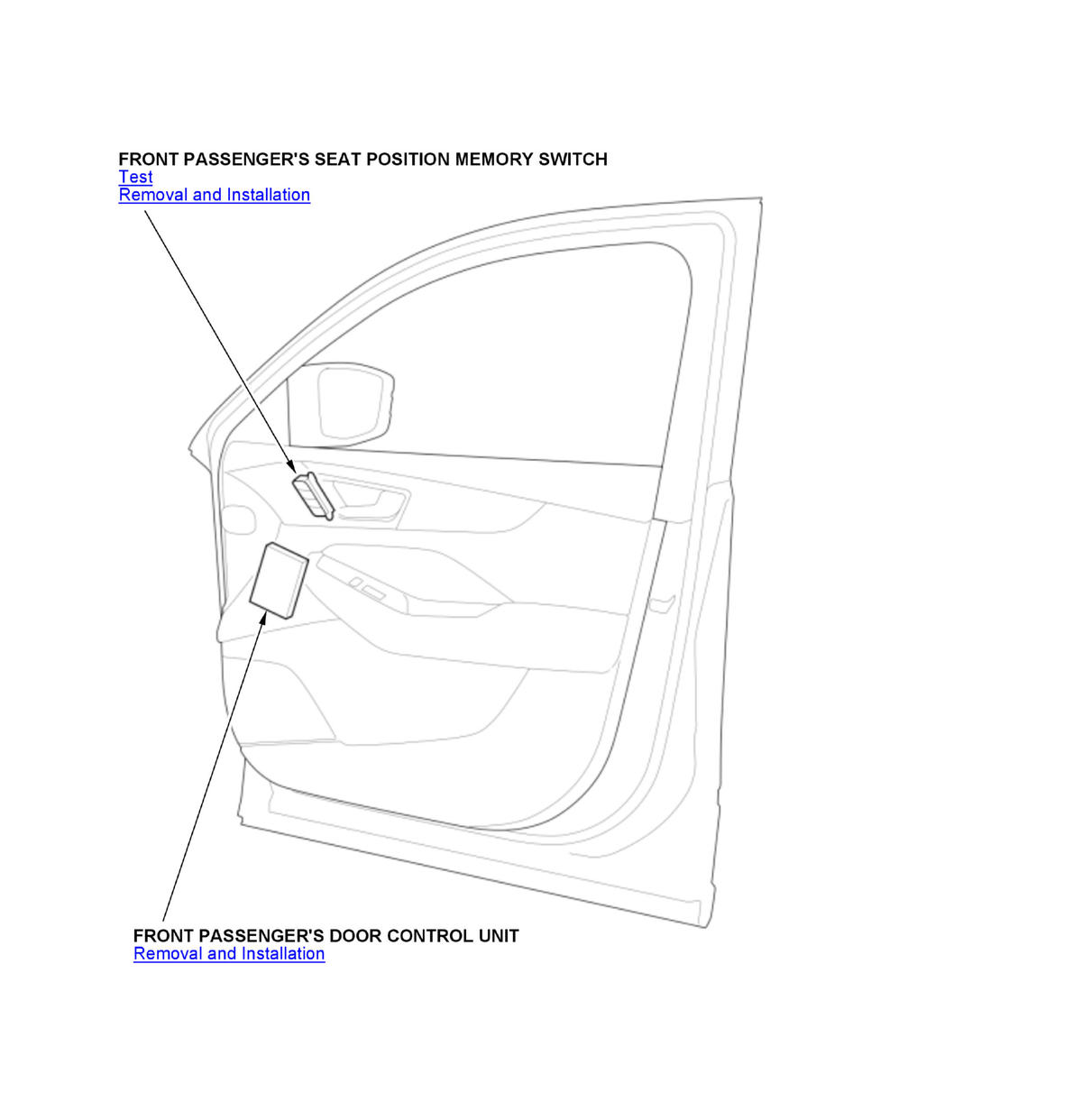

GHH524500

Courtesy of HONDA, U.S.A., INC.

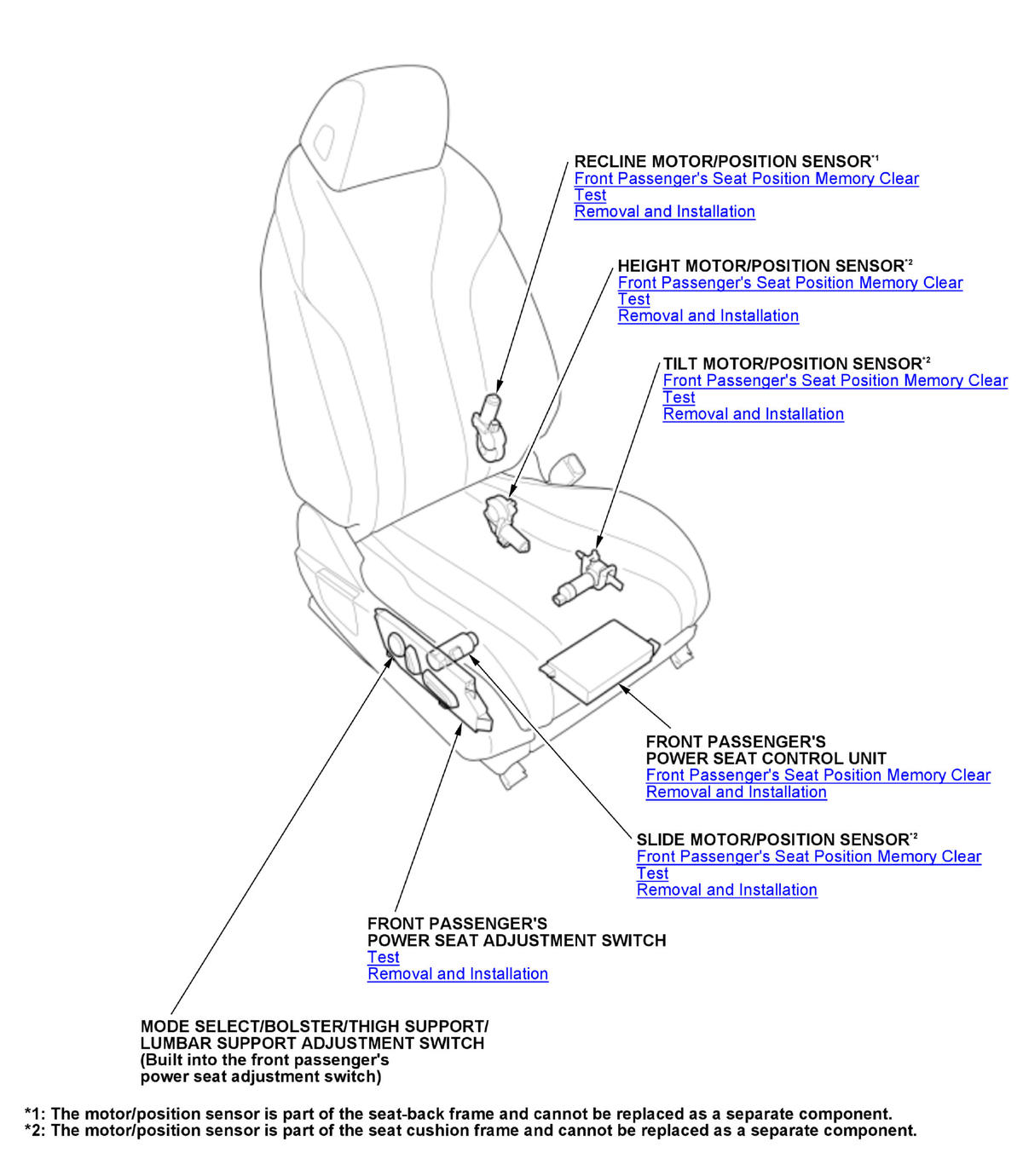

GHH524501

Courtesy of HONDA, U.S.A., INC.

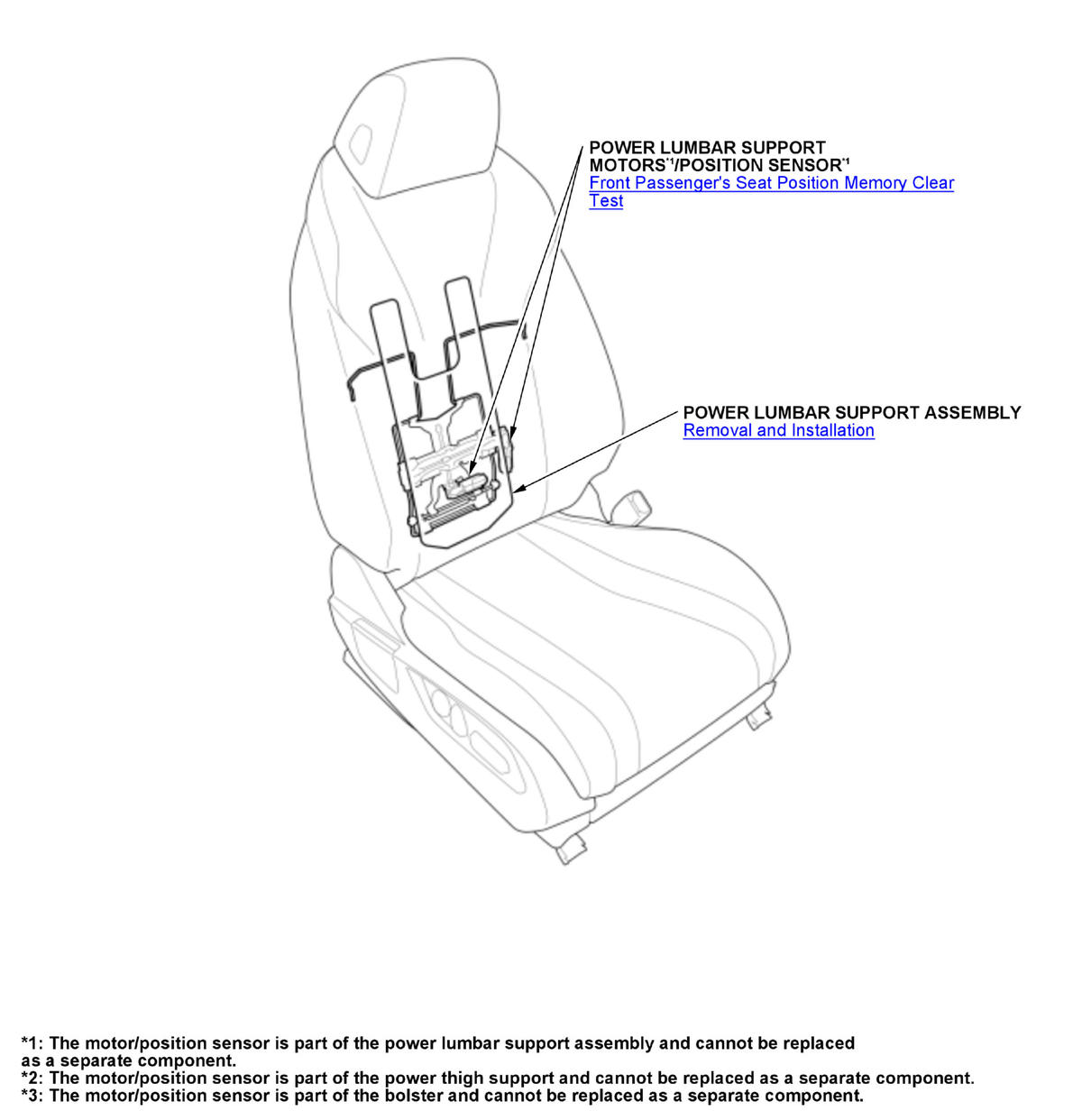

GHH524502

Courtesy of HONDA, U.S.A., INC.

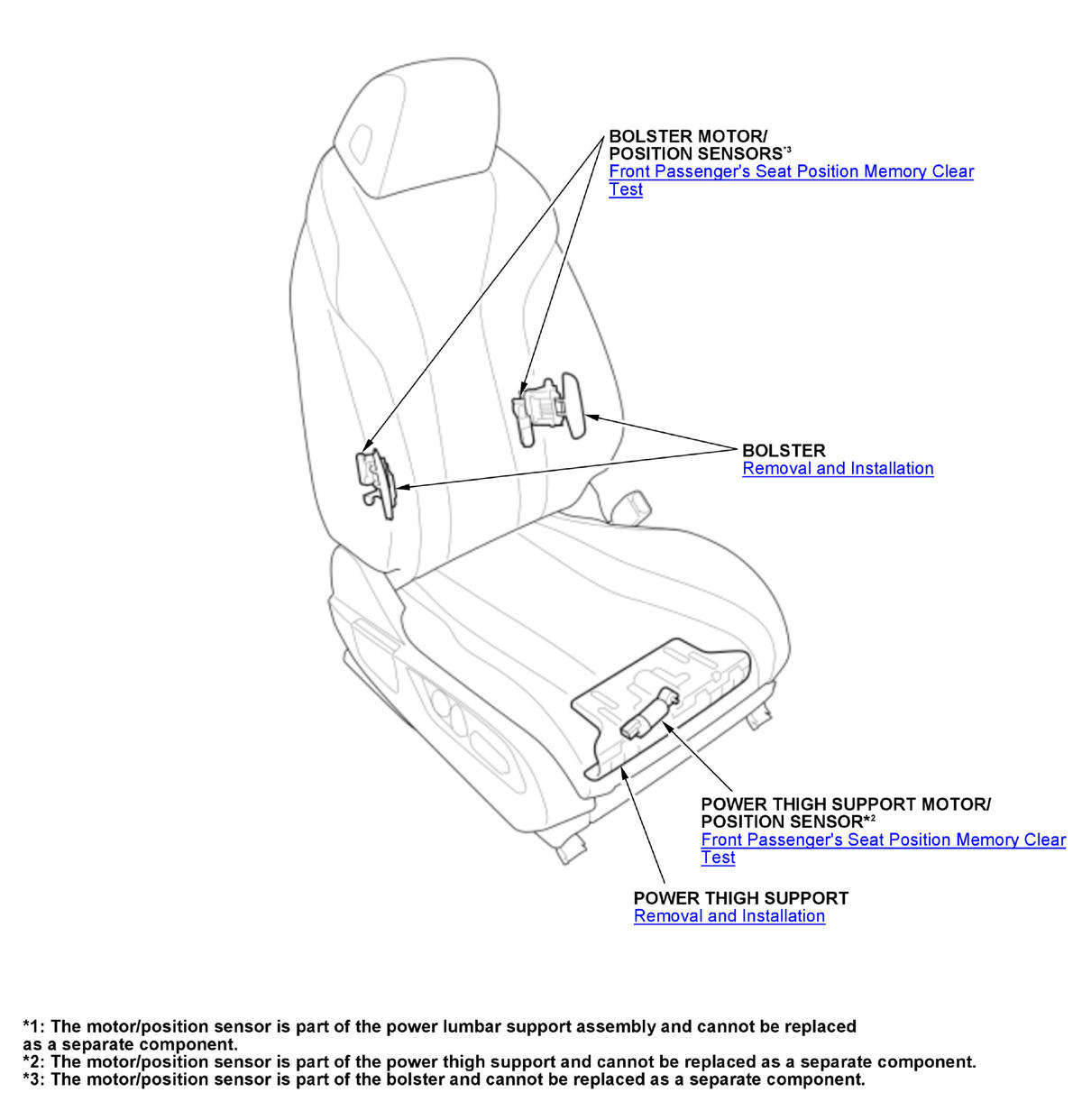

GHH524503

Courtesy of HONDA, U.S.A., INC.

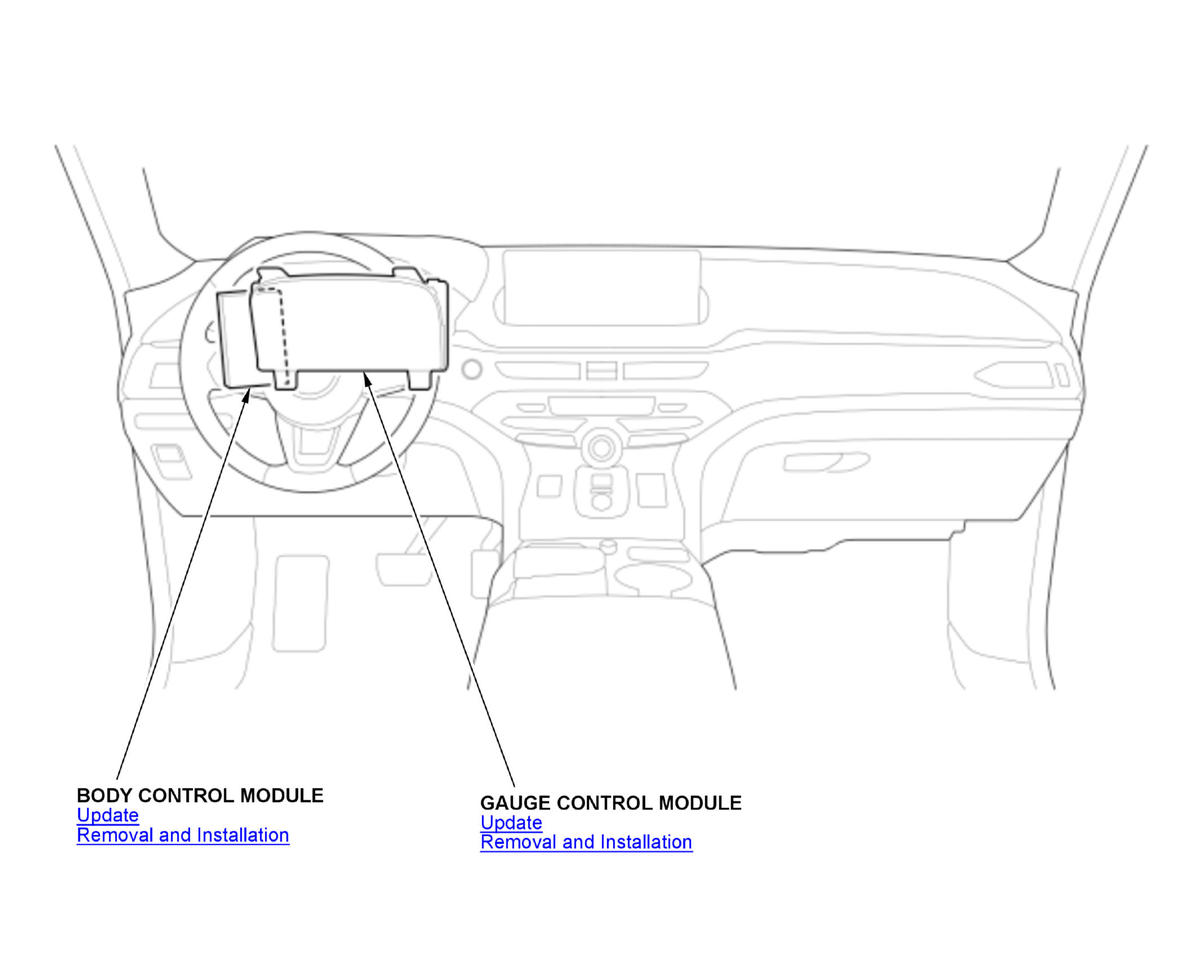

GHH524504

Courtesy of HONDA, U.S.A., INC.
