Exterior Lights Component Location Index (3.0L Engine)

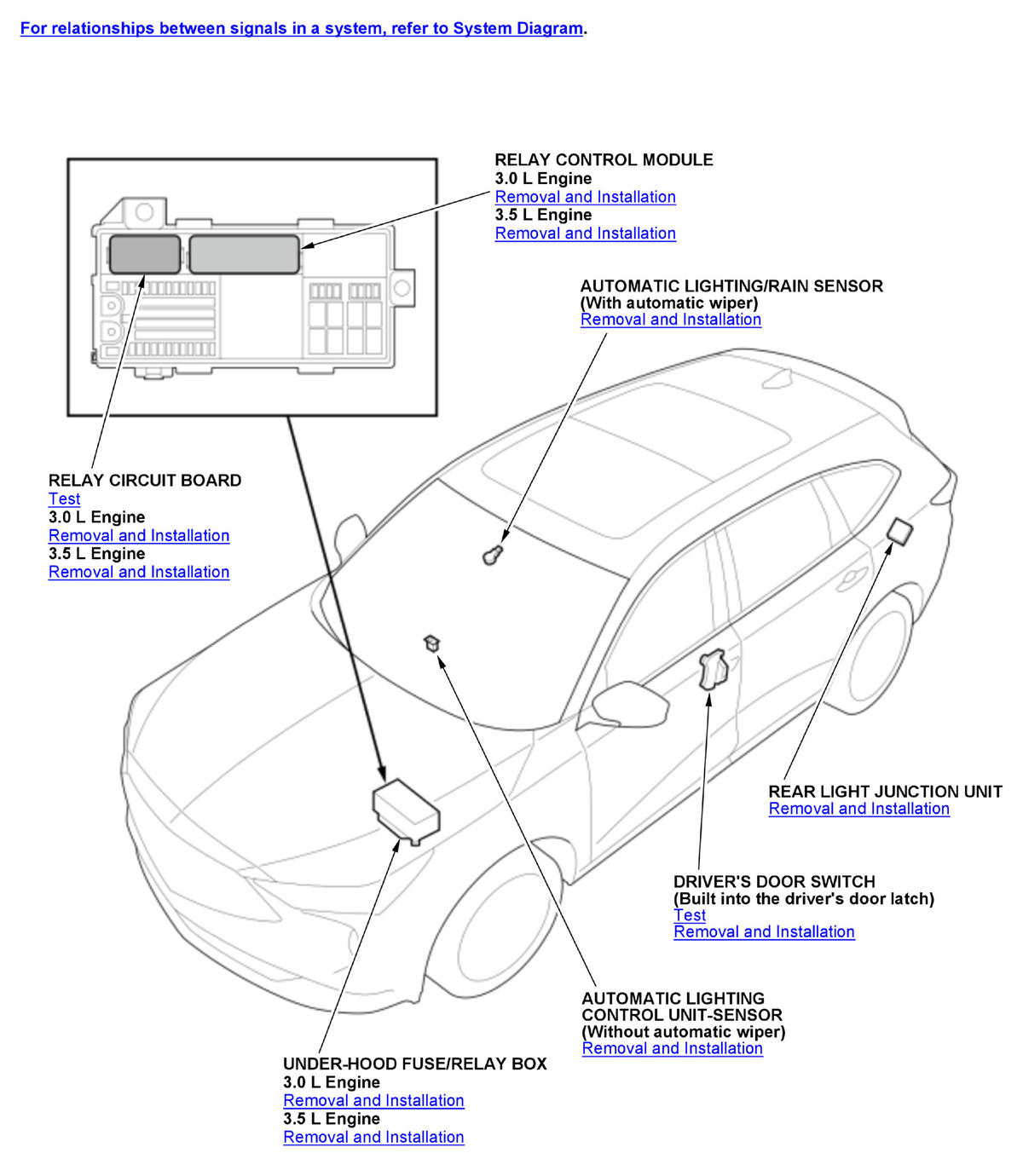

GHH519054Courtesy of HONDA, U.S.A., INC.

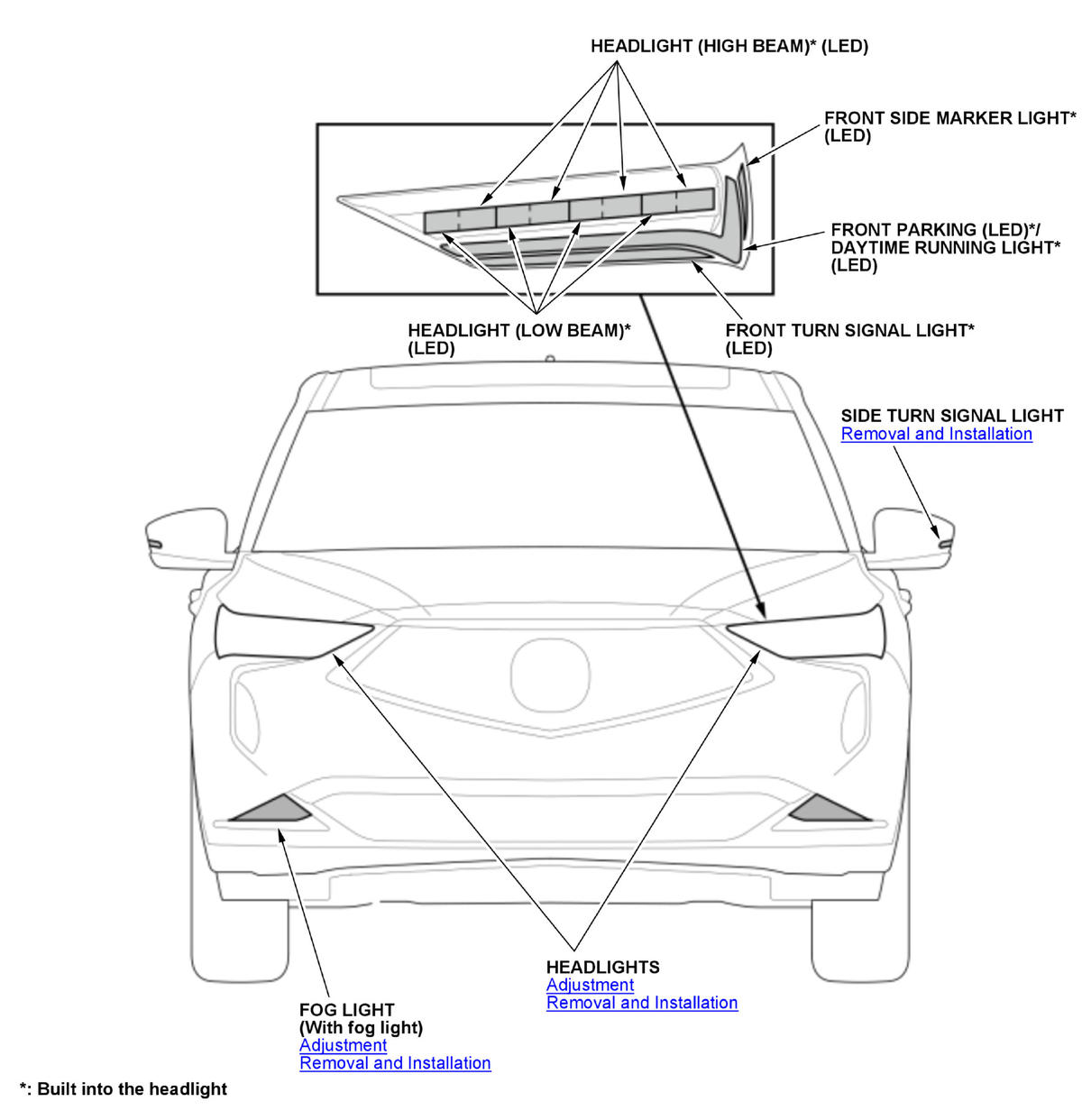

GHH519055Courtesy of HONDA, U.S.A., INC.

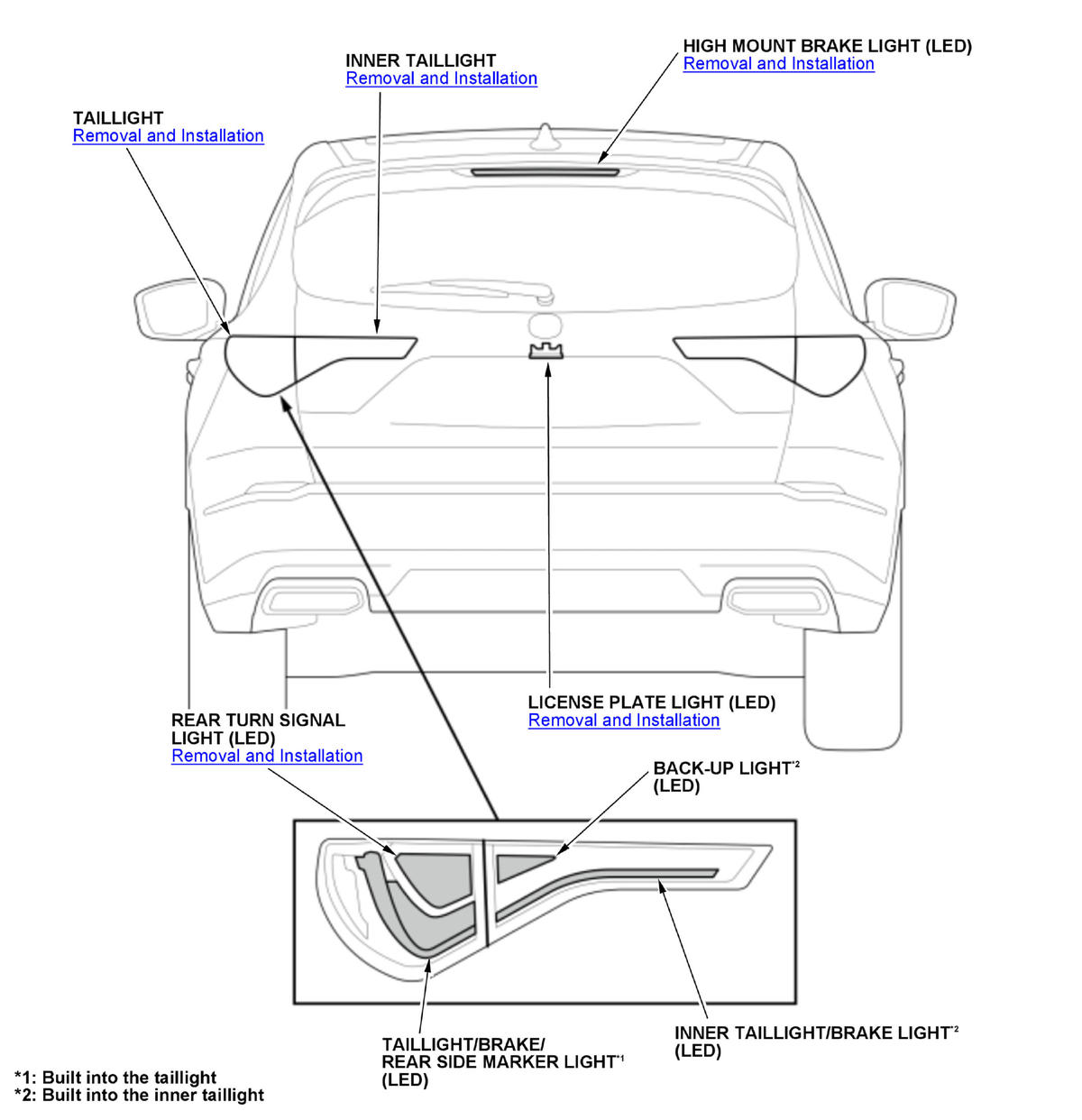

GHH519056Courtesy of HONDA, U.S.A., INC.

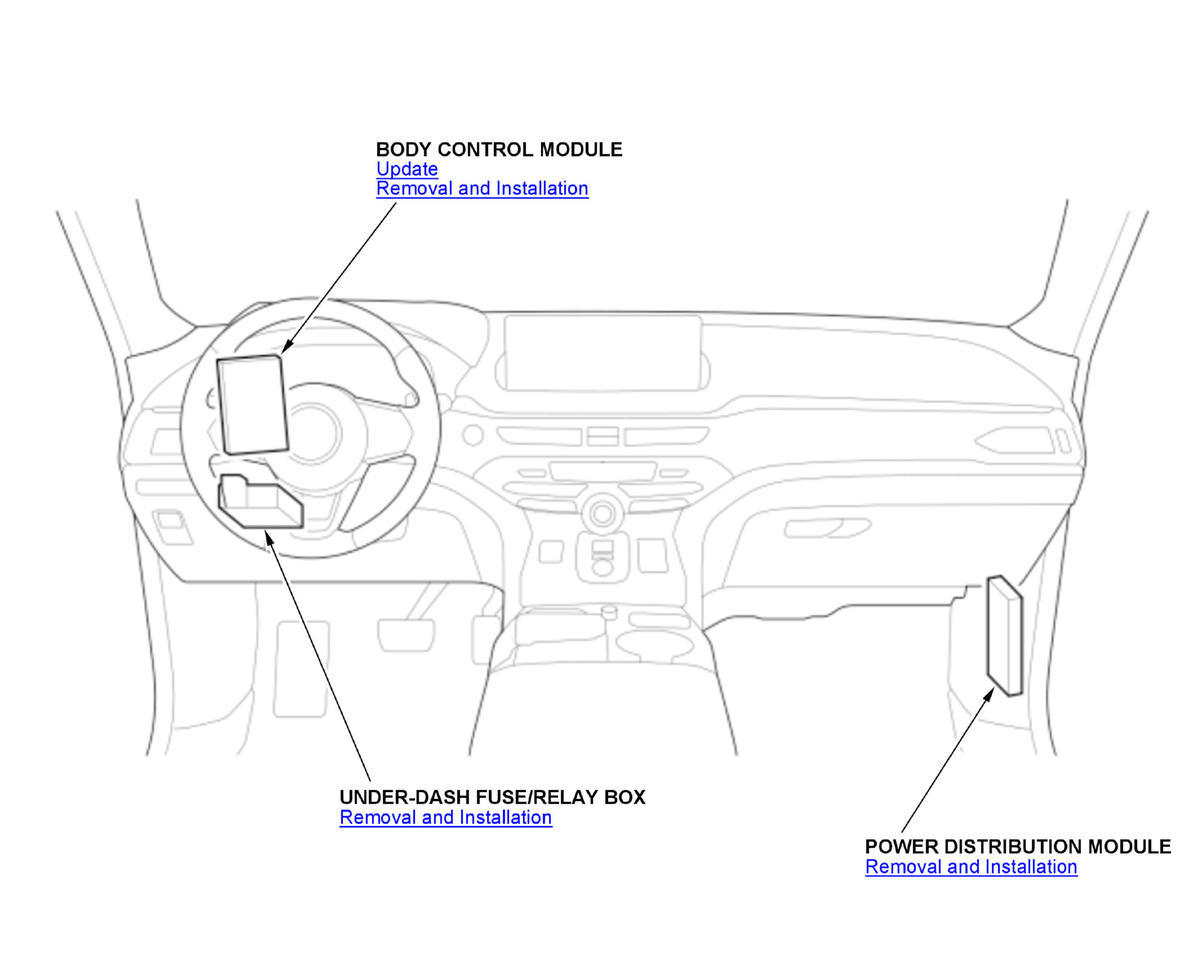

GHH519057Courtesy of HONDA, U.S.A., INC.

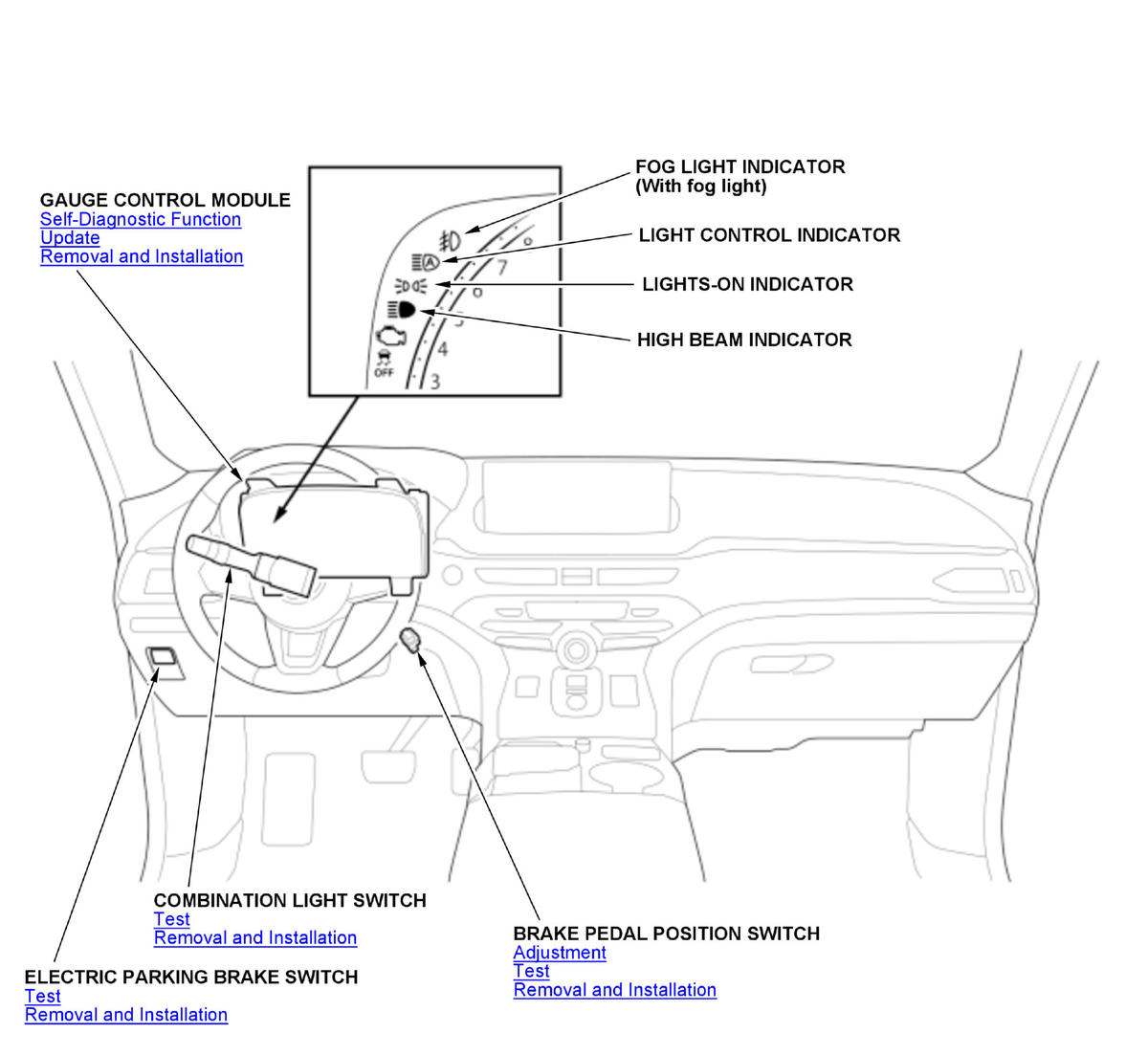

GHH519058Courtesy of HONDA, U.S.A., INC.
