Resetting the Parking and Back-Up Sensor Control Unit (With Low Speed Brake Control) (2025): Procedure

How to use this service information .

Reset the parking and back-up sensor unit after doing any of the following actions:

• When you replace the parking and back-up sensor.
• When you change the parking and back-up sensor mounting location from the original location.

1. Parking and Back-Up Sensor Control Unit - Reset

   Preconditions

   • Parking and back-up sensor control unit temperature less than 122 deg.F (50 deg.C) and greater than 32 deg.F (0 deg.C).
     NOTE:

     This procedure cannot be started if the temperature is above 122 deg.F (50 deg.C). Move the vehicle indoors if necessary and allow it to cool down.

   • Wait at least 10 minutes since the previous operation before starting the reset procedure.

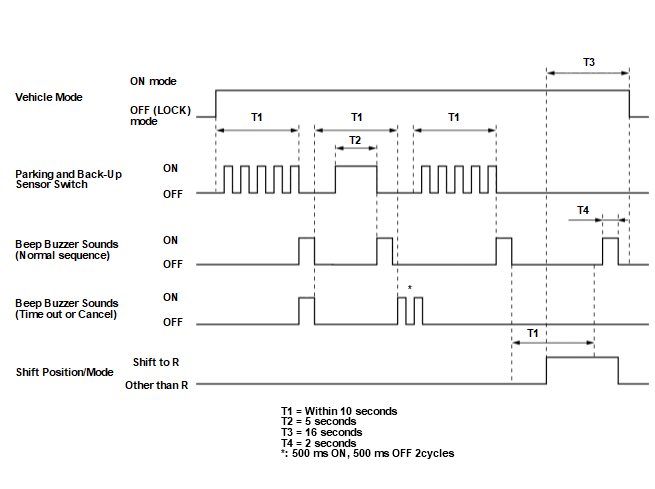

   Procedure

   1. Turn the vehicle to the ON mode, then press the parking and back-up sensor switch 5 times within 10 seconds.

   2. Press and hold the parking and back-up sensor switch for 5 seconds within 10 seconds after the beep.

   3. Press the parking and back-up sensor switch 5 times within 10 seconds after the beep.

   4. Shift the transmission to the R position/mode within 10 seconds after the beep.

   5. Shift to the P or N position/mode after a 2 second long beep in the R position/mode.

   NOTICE:  Do not turn the vehicle to the OFF(LOCK) mode for 16 seconds after shifting to the R position/mode.

   NOTE:

   If you hear two short beeps (500ms), do the resetting procedure again from the beginning.

   Courtesy of HONDA, U.S.A., INC.

   After Registration

   • Confirm that the parking and back-up sensor system operates properly.
