Inspection Outline

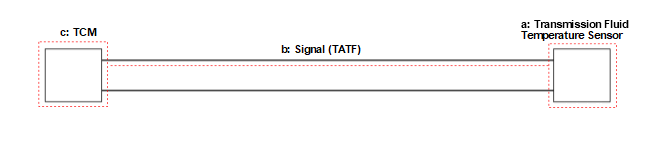

- The components to be tested are indicated by a dotted line.
| Inspection Items | Work Items | |
|---|---|---|
| a | Transmission Fluid Temperature Sensor | Transmission Fluid Temperature Sensor Inspection |
| b | External Circuit | TATF Shorted Wire Inspection |
| c | TCM | TCM Inspection |
