Inspection Outline

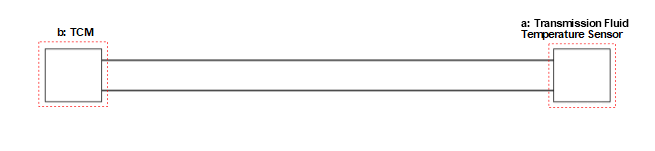

• The components to be tested are indicated by a dotted line.

Courtesy of HONDA, U.S.A., INC.

NOTICE:

For more efficient troubleshooting, you may be able to eliminate some inspection items as potential failures based on the conditions of the failure and vehicle.

• Confirm the HDS [CVTF Temperature].
• • -

    14 deg.F (-10 deg.C) or below:

  • -

    14 deg.F (-10 deg.C) or higher:

Inspection Items		Work Items
a	Transmission Fluid Temperature Sensor	Transmission Fluid Temperature Sensor Inspection (1)	o
		Transmission Fluid Temperature Sensor Inspection (2)		o
b	TCM	TCM Inspection	o	o
