Repair Procedure

How to use this service information .

WARNING:

SRS components are located in this area. Before doing repairs or service:
- Review the SRS component locations .
- Review the precautions and procedures .

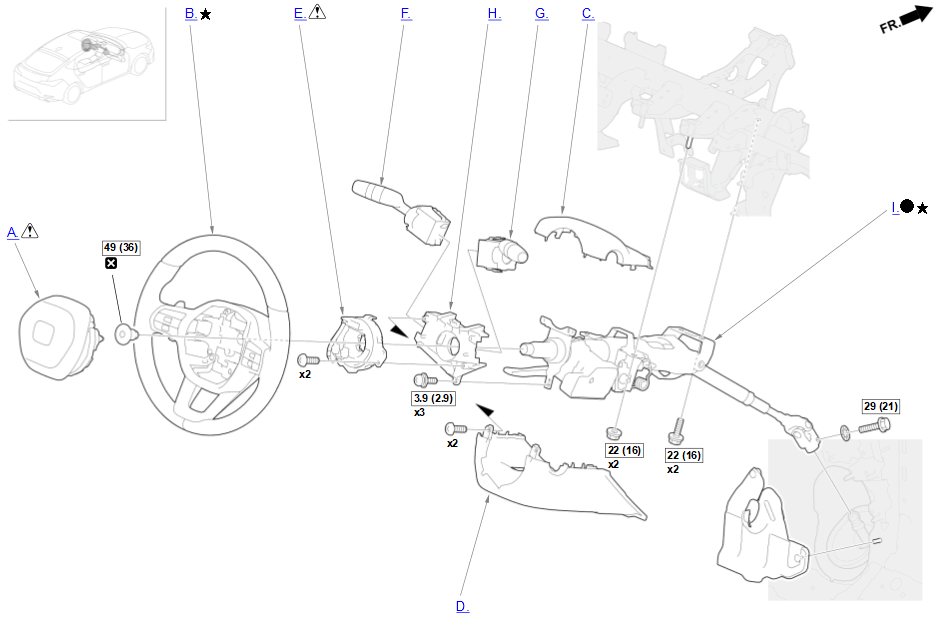

Courtesy of HONDA, U.S.A., INC.

: Torque, N.m (lbf.ft)

: Replace

: Warning/Caution

: Inspection/Adjustment

*: Learning

: SPL Tool

: Required Removal

With Electric Steering Lock

Courtesy of HONDA, U.S.A., INC.

: Torque, N.m (lbf.ft)

: Replace

: Warning/Caution

: Inspection/Adjustment

*: Learning

: SPL Tool

: Required Removal

A.-
WARNING:
- Review the precautions and procedures before doing repairs or service .
- Wait at least 3 minutes, after disconnecting the 12 volt battery terminal.
NOTICE:
- If you are replacing the driver's airbag after a deployment, refer to Component Replacement/Inspection After Deployment - Refer to: Airbag and Tensioner Disposal or SRS Component Replacement/Inspection After Deployment for a complete list of other parts that must also be replaced.
- If the driver's airbag deployed, the cable reel cannot be reused because of thermal damage.
Preconditions
- 12 Volt Battery Negative Terminal Disconnected
Sub-Procedure

■ Removal

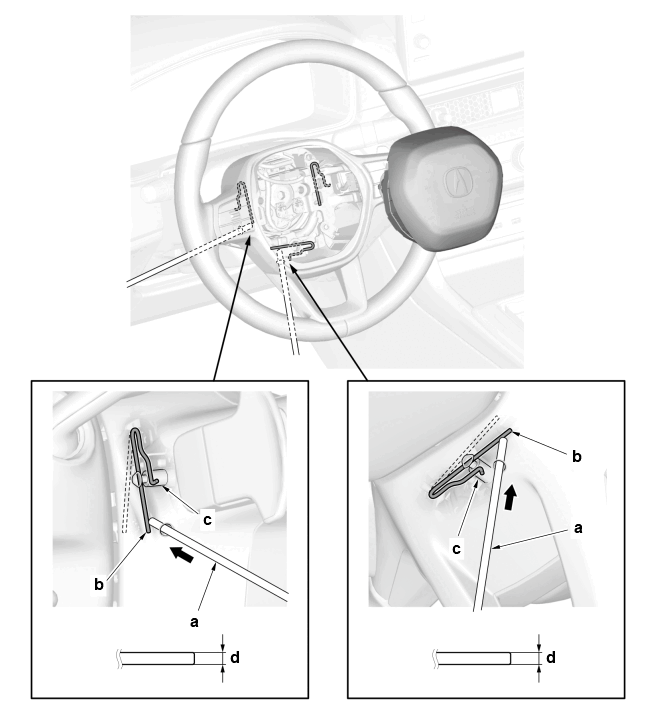

- Insert a punch (a) through the hole of the steering body cover and push the spring (b) to release the front airbag pin (c) while pulling out the airbag. Repeat for the other side. (Figure 1)
Punch Specifications (Figure 1)

Standard Value

d 5.5 mm (0.217 in)

Figure 1

Courtesy of HONDA, U.S.A., INC.

■ Installation

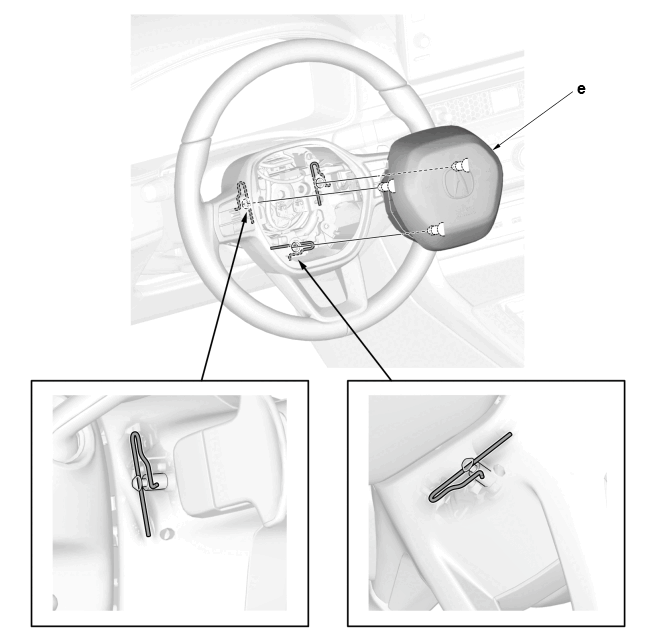

1. Install the driver's airbag (e) by pushing it in until you hear a click. (Figure 2)

NOTICE: Confirm that the front airbag pins are securely mounted to the springs.

Figure 2

Courtesy of HONDA, U.S.A., INC.

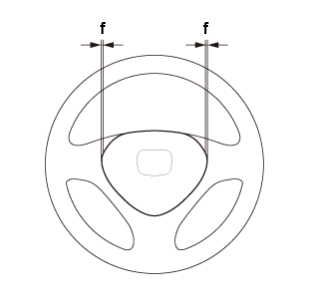

2. Make sure the clearance (f) between the steering wheel and horn pad is the specified value. (Figure 3)

Specifications (Figure 3)

Standard Value

f 3.0 +/- 0.5 mm (0.118 +/- 0.020 in)

Figure 3

Courtesy of HONDA, U.S.A., INC.

After Installation

1. 12 Volt Battery Negative Terminal Reconnect

2. Make sure the horn works properly.

3. Turn the vehicle to the ON mode, and check that the SRS indicator comes on for about 6 seconds and then goes off.

B.-

Preconditions

Set the front wheels in the straight ahead position.

Sub-Procedure

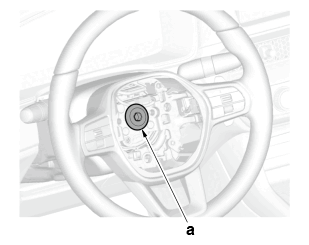

Figure 1

Courtesy of HONDA, U.S.A., INC.

■ Removal

1. Loosen the bolt (a) three turns. (Figure 1)

Figure 2

Courtesy of HONDA, U.S.A., INC.

2. Refer to figure 2.

Tool Details (Figure 2)

Name
b	Steering Wheel Puller (Commercially Available)

NOTICE:

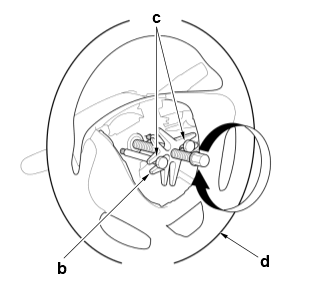

If you thread the puller bolts (c) into the wheel hub more than five threads, the bolts will hit the cable reel and damage it. To prevent this, install a pair of jam nuts five threads up on each puller bolt. (Figure 2)

3. Remove the steering wheel (d). (Figure 2)

NOTE:

Do not tap on the steering wheel or the steering column shaft when removing the steering wheel.
Remove the old sealant from the threads in the column shaft.

Figure 3

Courtesy of HONDA, U.S.A., INC.

■ Installation

NOTE:

A new cable reel is locked by a yellow tab for center adjustment. When installing the new cable reel there is no need to rotate the cable. After the tab is removed, discard it after installing the cable reel.

1. Make sure the front wheels are pointing straight ahead.

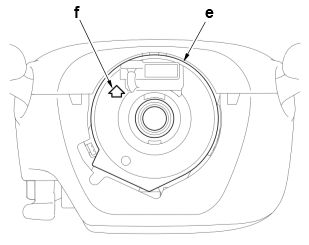

2. Rotate the cable reel (e) clockwise until it stops. (Figure 3)

3. Rotate the cable reel counterclockwise until the arrow mark (f) on the cable reel points straight up. (Figure 3)

4. Rotate the cable reel counterclockwise two full turns. The arrow mark on the cable reel should point straight up.

Figure 4

Courtesy of HONDA, U.S.A., INC.

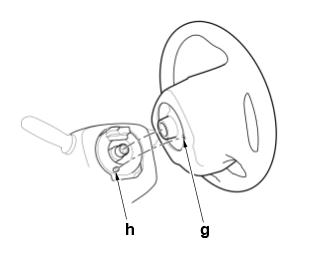

5. Position the steering wheel hub (g) so that it engages the pin (h) of the cable reel. (Figure 4)

NOTICE: Do not tap on the steering wheel or the steering column shaft when installing the steering wheel.

Figure 5

Courtesy of HONDA, U.S.A., INC.

6. Install a new bolt (i), and tighten it to the specified torque. (Figure 5)

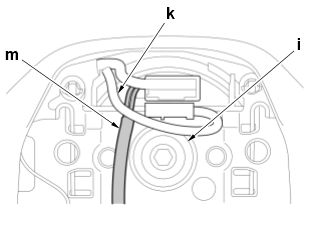

NOTICE: Make sure that the cable reel subharness (k) is routed above the SRS harness (m). (Figure 5)

NOTE:

Install the bolt and tighten it within 5 minutes to the specified tightening torque.

After Installation

1. Steering Wheel Spoke Angle Check.

Check the steering wheel spoke angle.
With the front wheels straight ahead, make sure the steering wheel is centered and the turning revolutions from center to full lock (left and right) are equal. If not, check the installation of the steering wheel and the engagement of the joint/pinion shaft splines.

2. VSA Sensor Neutral Position Memorization - Refer to: VSA Modulator-Control Unit Update or VSA Sensor Neutral Position Memorization

C.-
Preconditions
- Adjust the steering column to the full tilt down position, and to the full telescopic out position.
Sub-Procedure

■ Removal

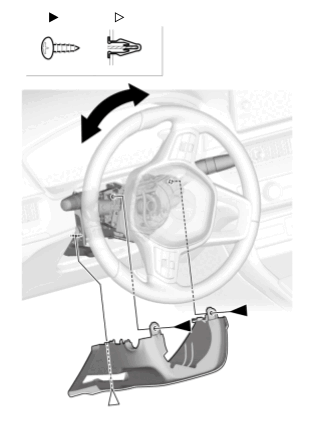

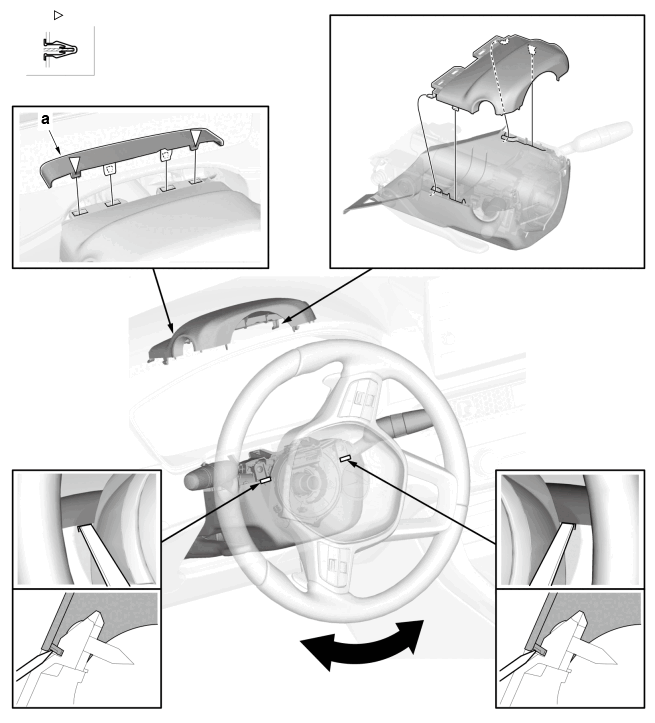

- Release the clips, then lift up the dashboard meter visor blind cover (a).
Courtesy of HONDA, U.S.A., INC.
D.-

Courtesy of HONDA, U.S.A., INC.
E.-
WARNING:
- Review the precautions and procedures before doing repairs or service .
- Wait at least 3 minutes, after disconnecting the 12 volt battery terminal.
NOTICE:
- If you are replacing the driver's airbag after a deployment, refer to Component Replacement/Inspection After Deployment - Refer to: Airbag and Tensioner Disposal or SRS Component Replacement/Inspection After Deployment for a complete list of other parts that must also be replaced.
- If the driver's airbag deployed, the cable reel cannot be reused because of thermal damage.
Preconditions
- Front wheels straight ahead positioned.
- 12 Volt Battery Negative Terminal Disconnected
Sub-Procedure

Courtesy of HONDA, U.S.A., INC.

■ Removal
- Refer to the figure.
■ Installation

NOTICE:

Make sure the front wheels are in the straight ahead position.

After Installation

1. 12 Volt Battery Negative Terminal Reconnect

2. Turn the vehicle to the ON mode, and check that the SRS indicator comes on for about 6 seconds and then goes off.
F.-
Sub-Procedure

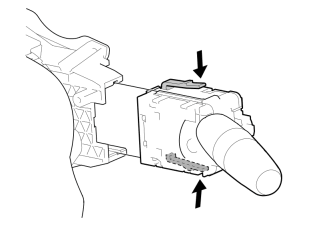

Courtesy of HONDA, U.S.A., INC.

■ Removal
- Refer to the figure.
G.-
Sub-Procedure

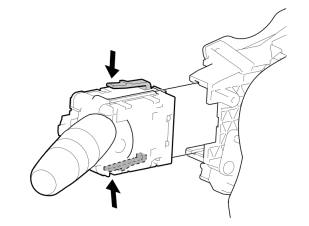

Courtesy of HONDA, U.S.A., INC.

■ Removal
- Refer to the figure.

H.-

Sub-Procedure

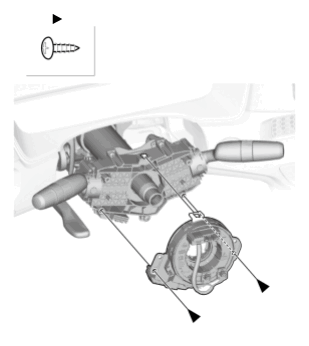

Courtesy of HONDA, U.S.A., INC.

■ Installation

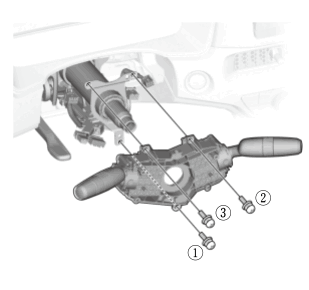

Tightening Procedure

Object	Specification
Screws	-> ->

I.-

NOTICE:

Do not release the lock lever until the steering column/EPS control unit is installed. If the lock lever is released before installation, adjust the steering column after installation.
Be careful not to damage the brake pedal position switch.

Preconditions

Set the steering column to the down tilt position, and to the long telescopic position.

Key Information

Do the following before starting your work.

Remove:

Driver's Heater Duct B

Sub-Procedure

Figure 1

Courtesy of HONDA, U.S.A., INC.

■ Removal

NOTICE:

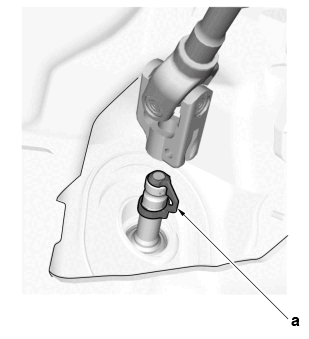

If the center guide (a) is in place and has not moved, leave it in place. (Figure 1)
If the center guide has come off, discard it.

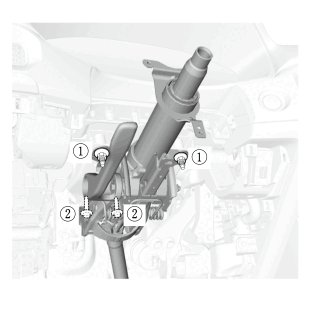

Figure 2

Courtesy of HONDA, U.S.A., INC.

■ Installation

1. Refer to figure 2.

Tightening Procedure (Figure 2)

Step	Operation	Object	Specification
1	Temporarily Tighten	Bolts and Nuts	-
2	Tighten	Bolts and Nuts	->

Figure 3

Courtesy of HONDA, U.S.A., INC.

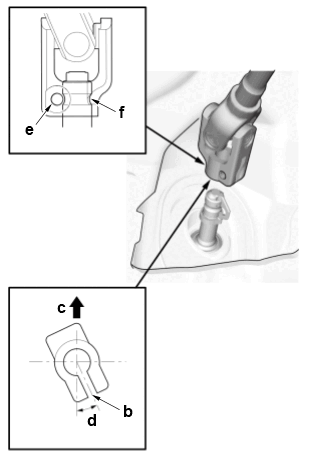

2. Insert the pinion shaft to the steering joint. (Figure 3)

Pinion shaft with center guide: Install the steering joint by aligning the center guide.
Pinion shaft without center guide: Position the steering column by aligning the gap (b) within the angle. (Figure 3)

Vehicle Directions (Figure 3)

Position	Direction
c	Front

Specifications (Figure 3)

Standard Value
d	25 15 deg.

3. Align the bolt hole (e) on the steering joint with the groove (f) around the pinion shaft.

After Installation

1. Steering Check.

Check the tilt mechanism and the telescopic mechanism for movement and damage.
With the front wheels straight ahead, make sure the steering wheel is centered and the turning revolutions from center to full lock (left and right) are equal. If not, check the installation of the steering wheel and the engagement of the joint/pinion shaft splines.

2. Wheel Alignment Check

3. VSA Sensor Neutral Position Memorization - Refer to: VSA Modulator-Control Unit Update or VSA Sensor Neutral Position Memorization

J.-
WARNING:
Wear goggles or safety glasses to prevent eye injury.

Sub-Procedure

Figure 1

Courtesy of HONDA, U.S.A., INC.

■ Removal

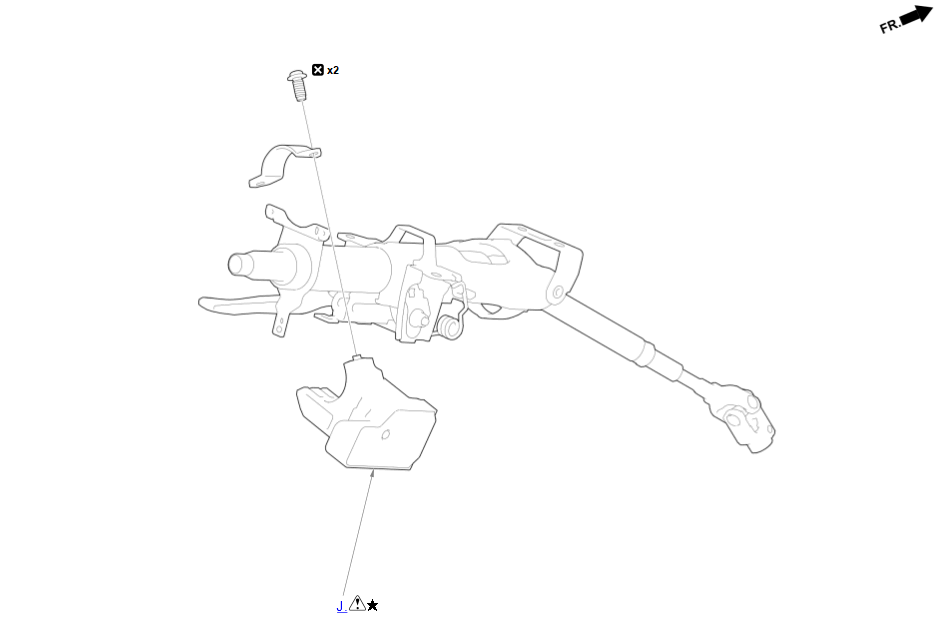

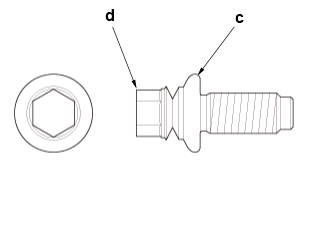

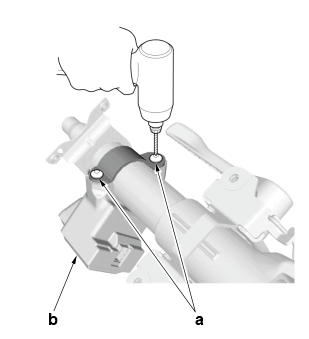

1. Center-punch both of the two shear bolts (a). (Figure 1)

2. Drill their heads off with a 5 mm (0.20 in) drill bit. Be careful not to damage the steering lock when removing the shear bolts.

NOTE:
The shear bolts have left-hand threads.

3. Remove the steering lock (b). (Figure 1)

Figure 2

Courtesy of HONDA, U.S.A., INC.

■ Installation
- Tighten the shear bolts (c) until the hex heads (d) twist off. (Figure 2)
  NOTE:
  The shear bolts have left-hand threads.
After Installation
- Keyless Access System Registration (When replacing the electric steering lock)

Standard Value
d	5.5 mm (0.217 in)

Standard Value
f	3.0 +/- 0.5 mm (0.118 +/- 0.020 in)
