Steering Wheel Rotational Play Check: Check

How to use this service information .

1. Steering Wheel Rotational Play - Check

   Preconditions

   • Front Wheels Positioned Straight Ahead

   Courtesy of HONDA, U.S.A., INC.

   Procedure/Specifications

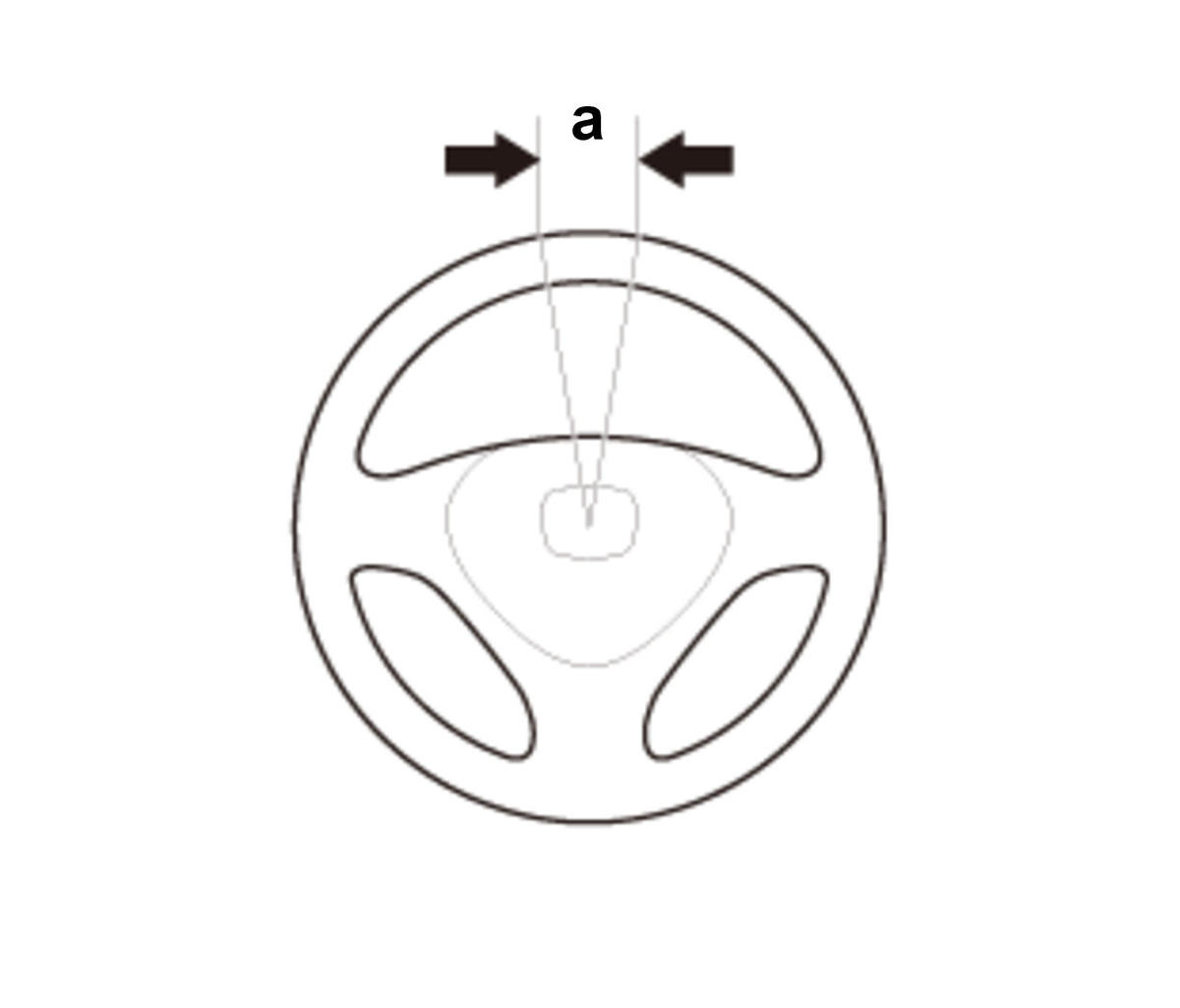

   • Measure how far you can turn the steering wheel left and right without moving the front wheels.

   Specifications

   Standard Value
   a	0-10 mm (0-0.39 in)

   Result

   • If the measurement is not within specifications, inspect the steering linkage and the steering gearbox .
