Repair Procedure

How to use this service information .

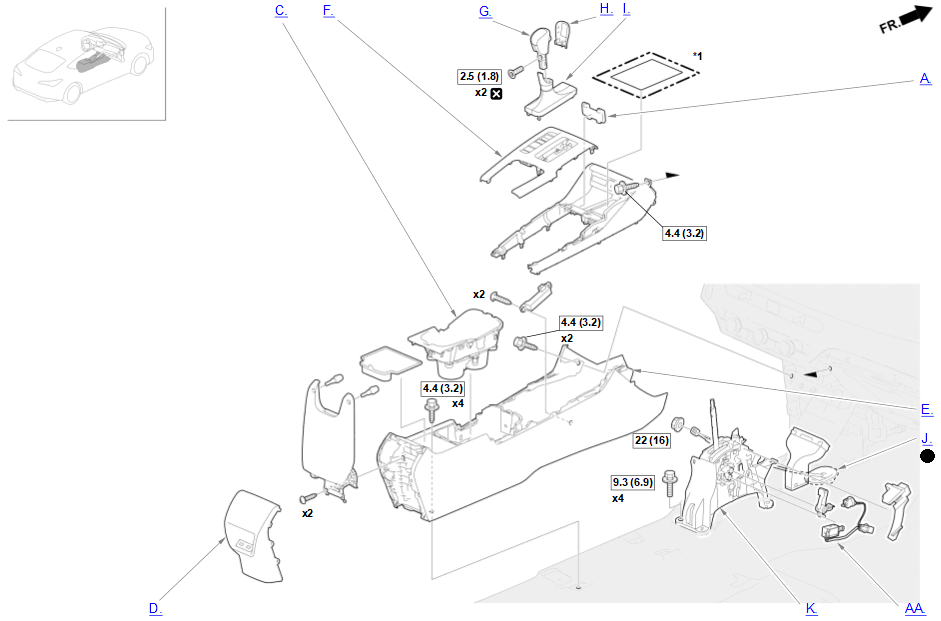

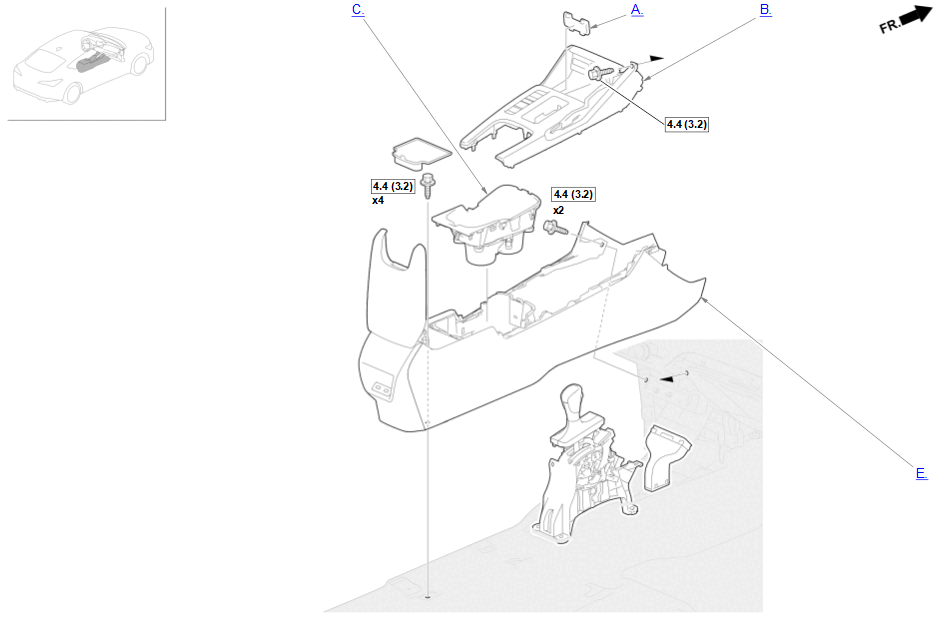

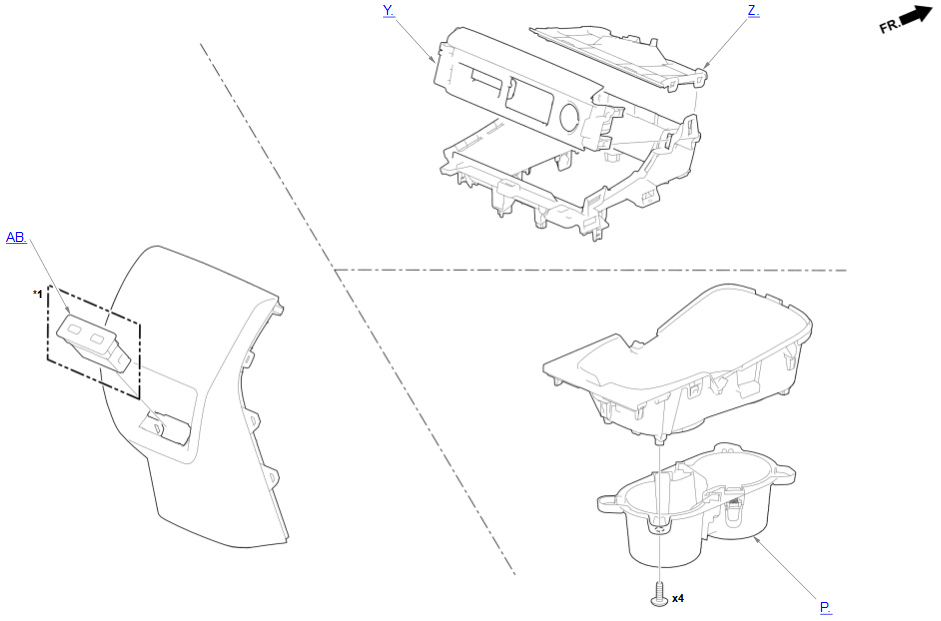

Center Console Assembly Removal

Courtesy of HONDA, U.S.A., INC.

: Torque, N.m (lbf.ft)

: Replace

: Warning/Caution

: Inspection/Adjustment

*: Learning

: SPL Tool

: Required Removal

Courtesy of HONDA, U.S.A., INC.

: Torque, N.m (lbf.ft)

: Replace

: Warning/Caution

: Inspection/Adjustment

*: Learning

: SPL Tool

: Required Removal

*1: Without wireless charger

Courtesy of HONDA, U.S.A., INC.

: Torque, N.m (lbf.ft)

: Replace

: Warning/Caution

: Inspection/Adjustment

*: Learning

: SPL Tool

: Required Removal

Courtesy of HONDA, U.S.A., INC.

: Torque, N.m (lbf.ft)

: Replace

: Warning/Caution

: Inspection/Adjustment

*: Learning

: SPL Tool

: Required Removal

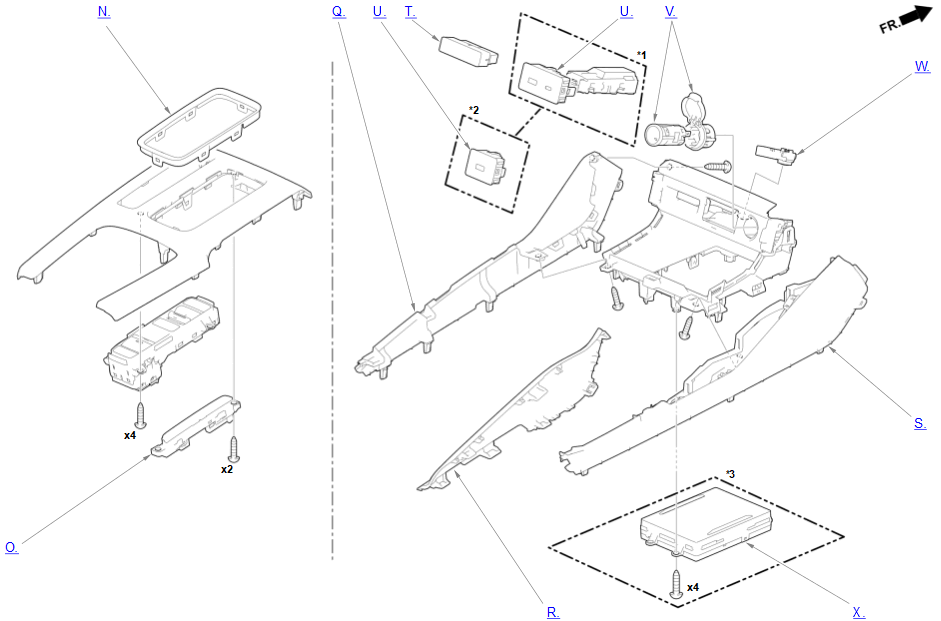

*1: Display audio type (9-inch screen)

*2: Color audio type (7-inch screen)

*3: With wireless charger

Courtesy of HONDA, U.S.A., INC.

: Torque, N.m (lbf.ft)

: Replace

: Warning/Caution

: Inspection/Adjustment

*: Learning

: SPL Tool

: Required Removal

*1: Display audio type (9-inch screen)

1. A.-

   Courtesy of HONDA, U.S.A., INC.

2. B.-

   Key Information

   Do the following before starting your work.

   Remove:

   • Passenger's Pad Assembly

   Sub-Procedure

   ■ Removal

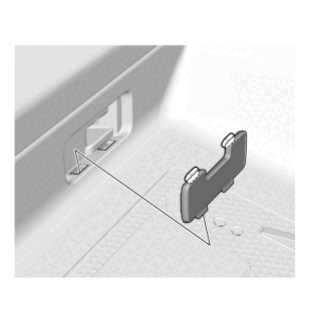

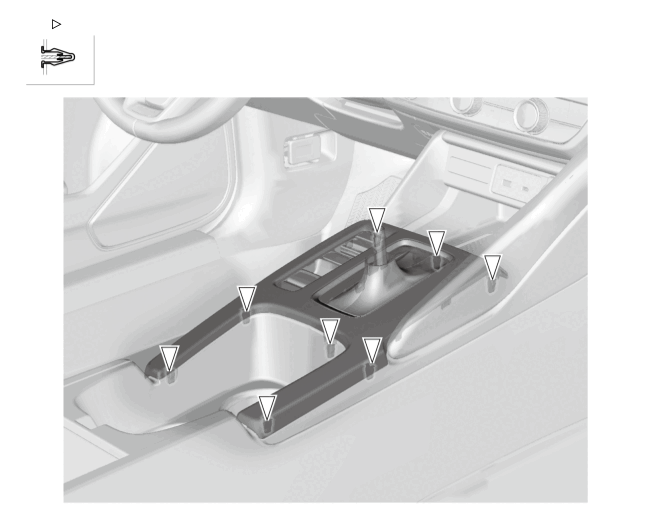

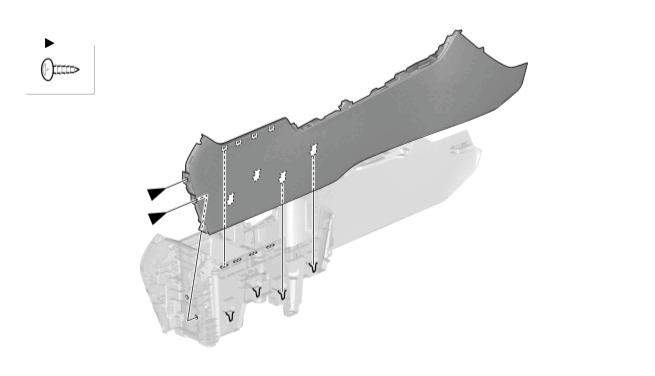

   • Refer to the figure.

   Courtesy of HONDA, U.S.A., INC.

3. C.-

   Courtesy of HONDA, U.S.A., INC.

4. D.-

   Courtesy of HONDA, U.S.A., INC.

5. E.-

   Sub-Procedure

   ■ Removal

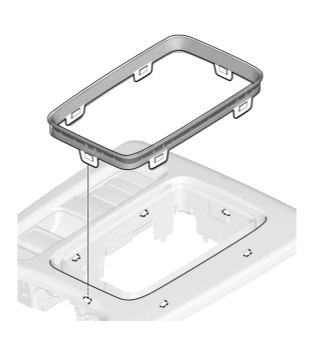

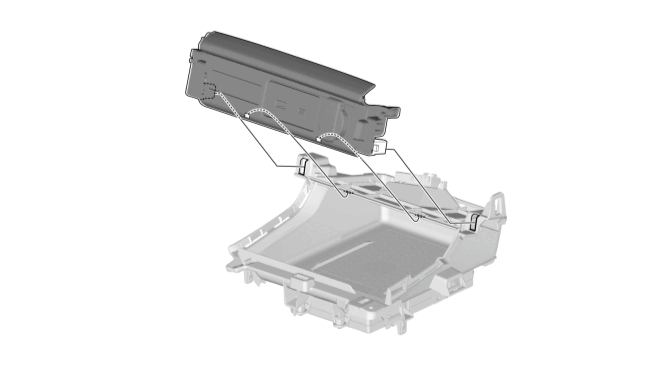

   • Refer to the figure.

   Courtesy of HONDA, U.S.A., INC.

6. F.-

   Courtesy of HONDA, U.S.A., INC.

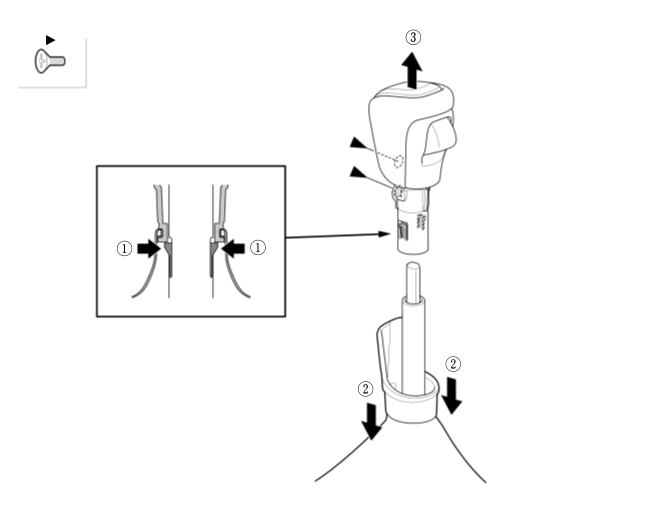

7. G.-

   Sub-Procedure

   ■ Removal

   NOTICE:

   Do not wipe off the special grease.

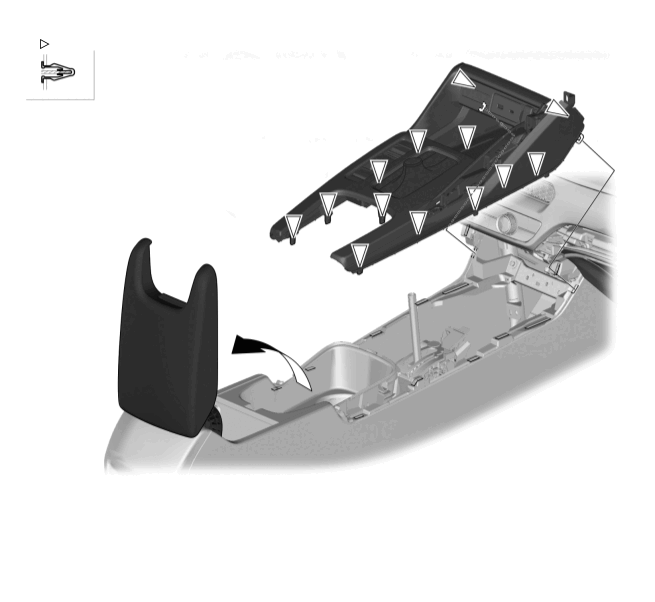

   • Refer to the figure.

   Courtesy of HONDA, U.S.A., INC.

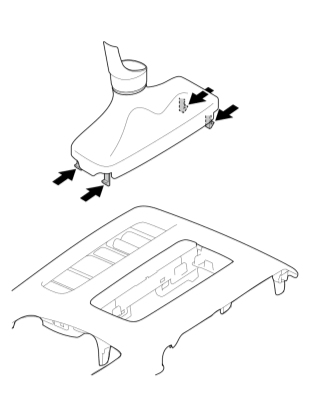

8. H.-

   Sub-Procedure

   ■ Removal

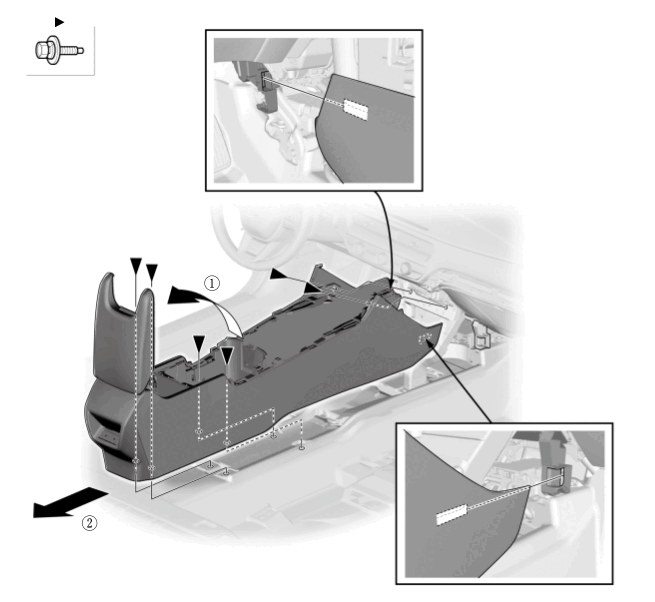

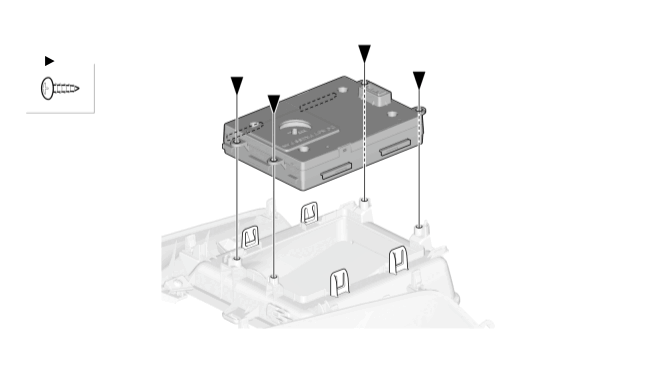

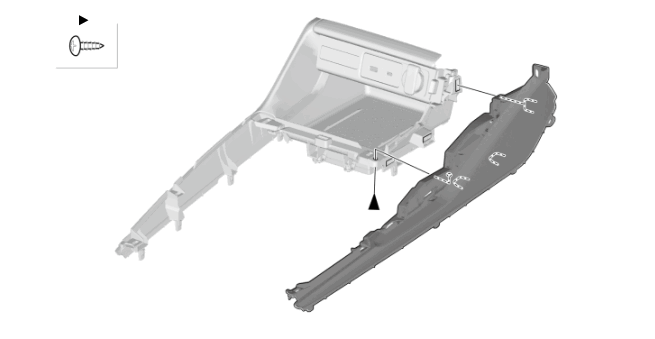

   • Refer to the figure.

   Courtesy of HONDA, U.S.A., INC.

9. I.-

   Sub-Procedure

   Courtesy of HONDA, U.S.A., INC.

   ■ Removal

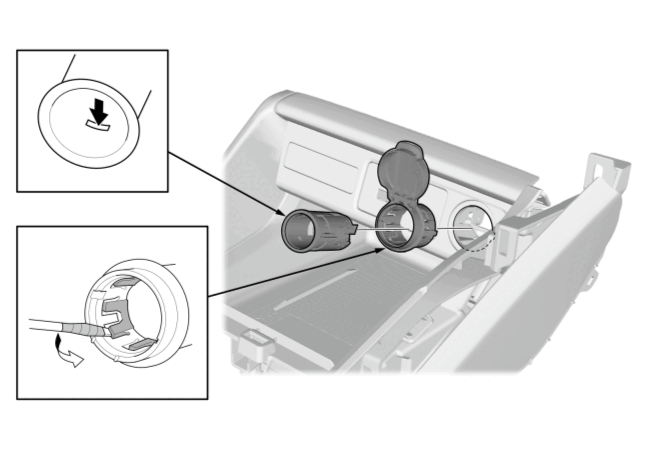

   • Refer to the figure.
10. J.-

    Preconditions

    • Transmission R position/mode

    Sub-Procedure

    NOTICE:

    • Do not bend the shift cable excessively.

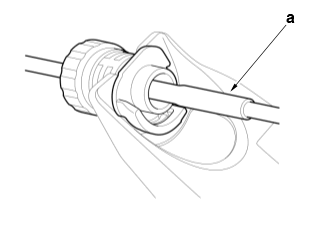

    • Do not remove the shift cable by pulling the shift cable guide (a). (Figure 1)

    Figure 1

    Courtesy of HONDA, U.S.A., INC.

    ■ Removal

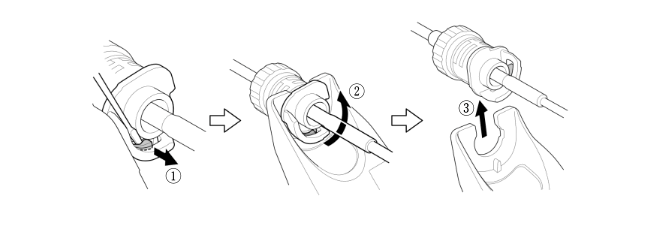

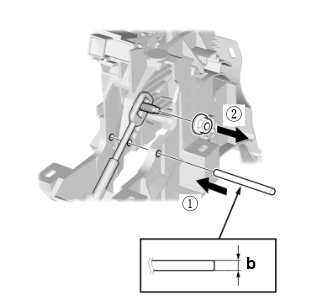

    1. Refer to figure 2.

    Pin Specifications (Figure 2)

    Specification
    b	6.0 mm (0.24 in)

    Figure 2

    Courtesy of HONDA, U.S.A., INC.

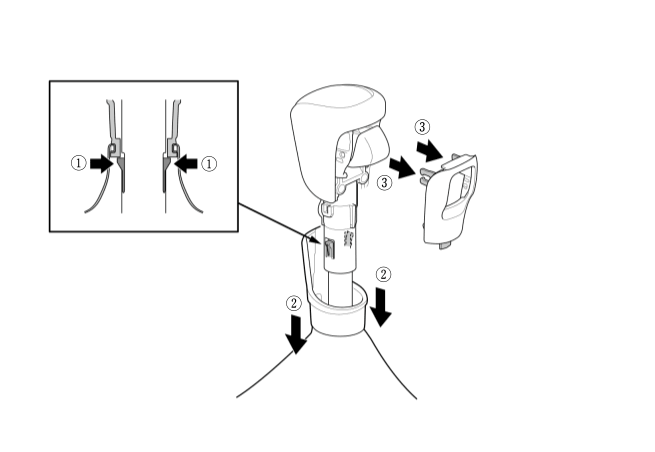

    2. Refer to figure 3.

    Figure 3

    Courtesy of HONDA, U.S.A., INC.

    ■ Installation

    1. Adjust shift cable .

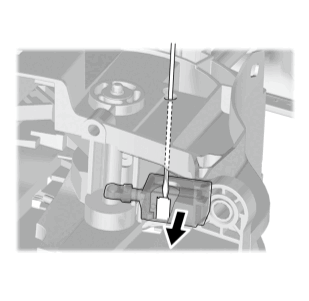

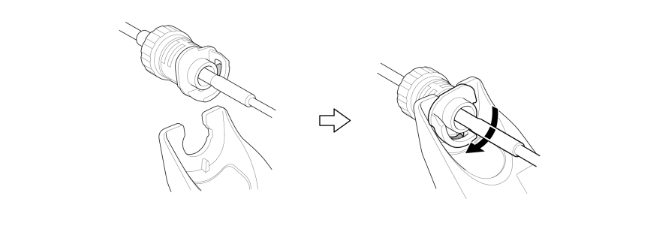

    2. Refer to figure 4.

    Figure 4

    Courtesy of HONDA, U.S.A., INC.

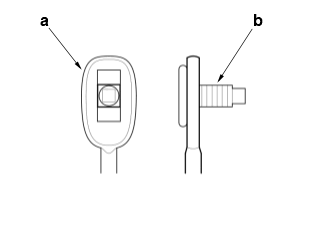

    3. Make sure that the shift cable end (a) is properly installed on the mounting stud (b). (Figure 5)

    Figure 5

    Courtesy of HONDA, U.S.A., INC.

    After Installation

    • Shift cable after install check.
    • • Turn the vehicle to the ON mode.
      • Move the shift lever to each position/mode, and check that the shift position indicator follows the shift lever operation.
      • Shift the transmission to P position/mode, and check that the shift lock works properly.
      • Push the shift lock release, and check that the shift lever releases. Also check that the shift lever locks when it is shifted back to P position/mode.
      • Start the engine.
        NOTE:

        Check that the engine starts in P or N position/mode, and does not start in any other positions/modes.

      • Make sure the vehicle is turned to the OFF (LOCK) mode with the shift lever in P position/mode. If it is not, adjust the shift cable again.

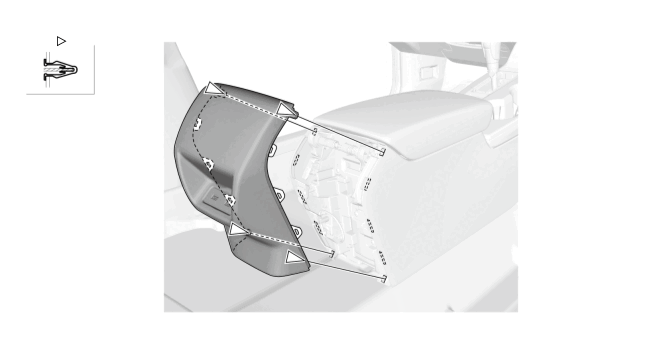

11. K.-

    Sub-Procedure

    ■ Removal

    NOTICE:

    Do not wipe off the special grease.

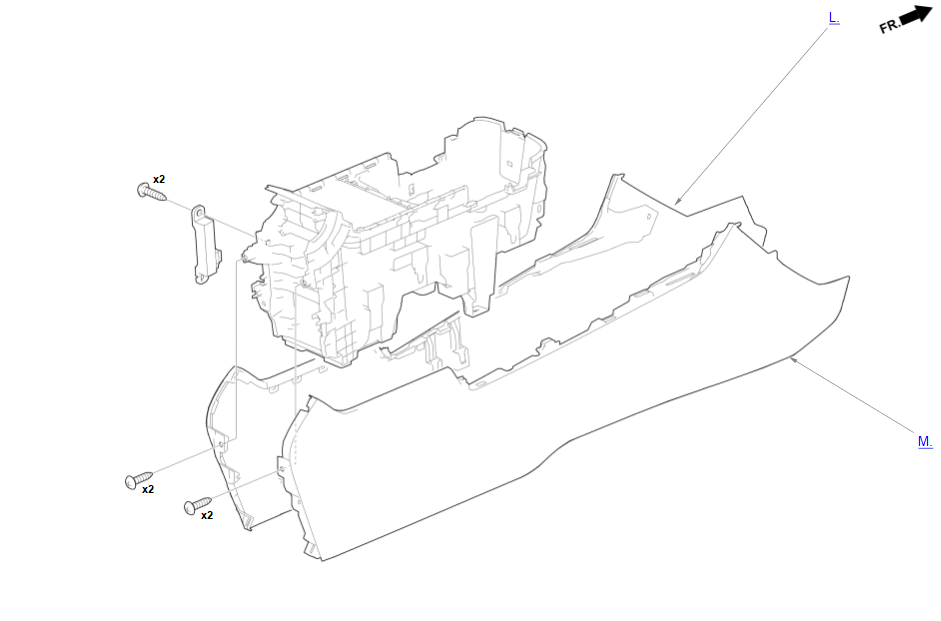

12. L.-

    Courtesy of HONDA, U.S.A., INC.

13. M.-

    Courtesy of HONDA, U.S.A., INC.

14. N.-

    Courtesy of HONDA, U.S.A., INC.

15. O.-

    Courtesy of HONDA, U.S.A., INC.

16. P.-

    Courtesy of HONDA, U.S.A., INC.

17. Q.-

    Courtesy of HONDA, U.S.A., INC.

18. R.-

    Courtesy of HONDA, U.S.A., INC.

19. S.-

    Courtesy of HONDA, U.S.A., INC.

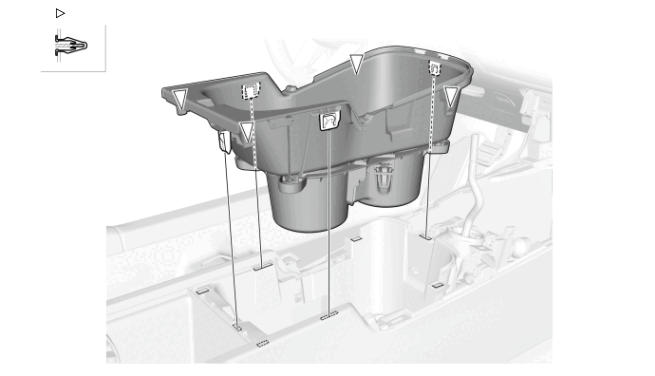

20. T.-

    Sub-Procedure

    Courtesy of HONDA, U.S.A., INC.

    ■ Removal

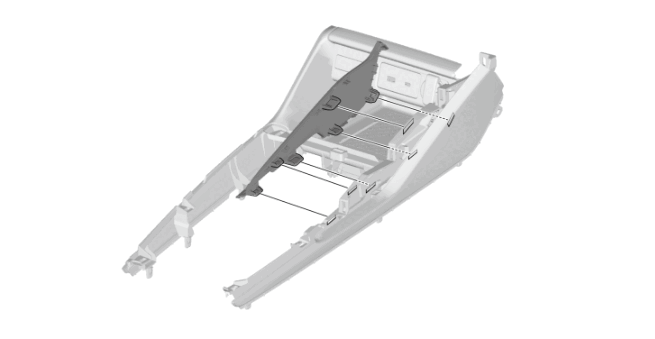

    • Refer to the figure.

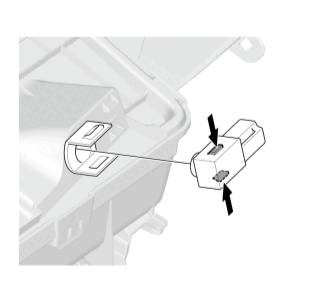

21. U.-

    Sub-Procedure

    Courtesy of HONDA, U.S.A., INC.

    ■ Removal

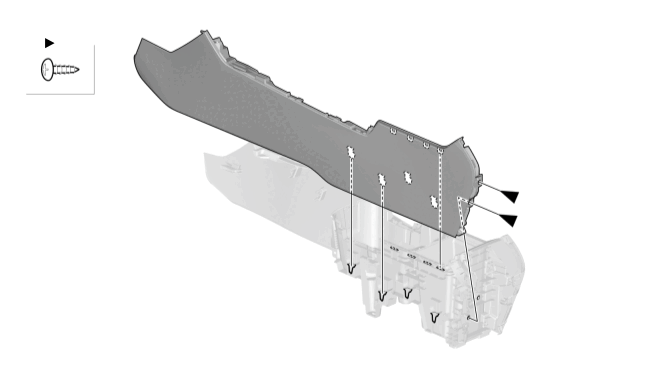

    • Refer to the figure.

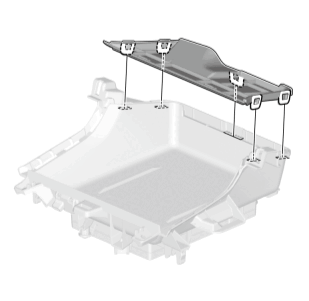

22. V.-

    Sub-Procedure

    ■ Removal

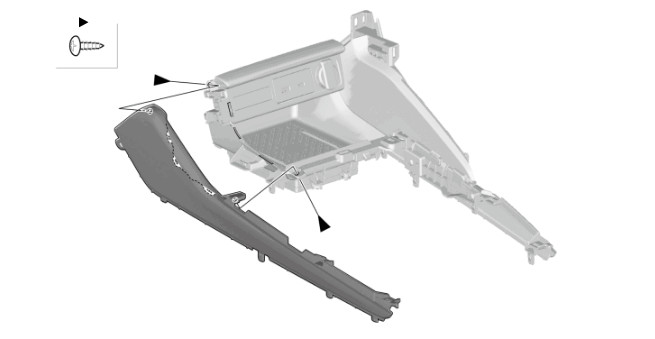

    • Refer to the figure.

    Courtesy of HONDA, U.S.A., INC.

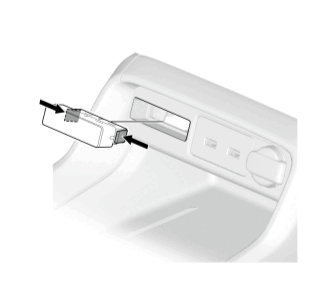

23. W.-

    Sub-Procedure

    Courtesy of HONDA, U.S.A., INC.

    ■ Removal

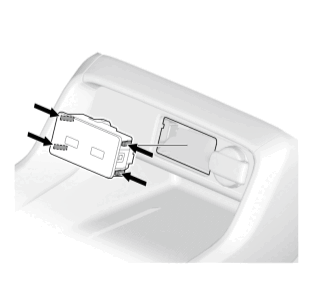

    • Refer to the figure.

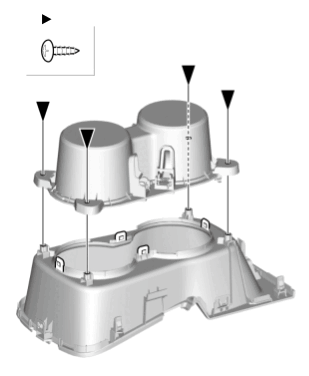

24. X.-

    Courtesy of HONDA, U.S.A., INC.

25. Y.-

    Courtesy of HONDA, U.S.A., INC.

26. Z.-

    Courtesy of HONDA, U.S.A., INC.

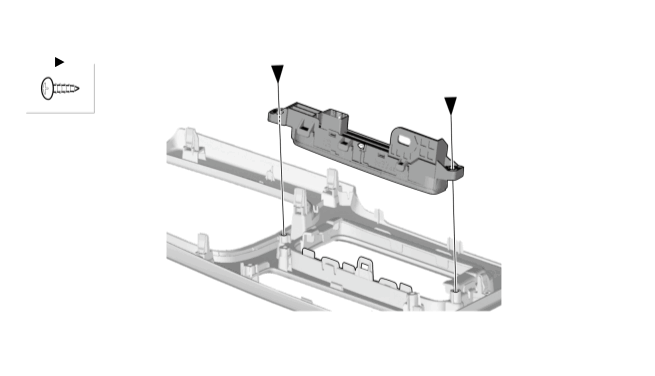

27. AA.-

    Sub-Procedure

    Courtesy of HONDA, U.S.A., INC.

    ■ Removal

    NOTICE:

    Do not wipe off the special grease.

    • Refer to the figure.

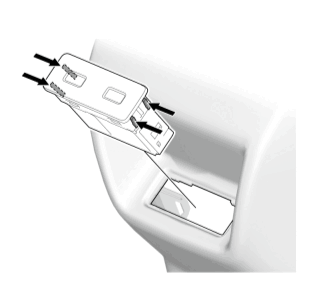

28. AB.-

    Sub-Procedure

    Courtesy of HONDA, U.S.A., INC.

    ■ Removal

    • Refer to the figure.
