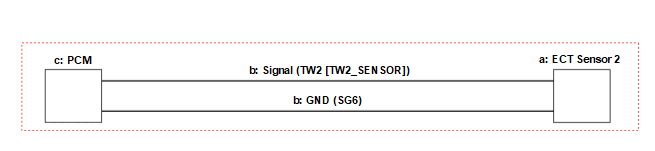

Inspection Outline

• The components to be tested are indicated by a dotted line.

Courtesy of HONDA, U.S.A., INC.

NOTICE:

For more efficient troubleshooting, you may be able to eliminate some inspection items as potential failures based on the conditions of the failure and vehicle.

• Confirm the HDS [ECT Sensor 2 Voltage].
• • -

    Less than 0.14 V:

  • -

    More than 4.99 V :

Inspection Items		Work Items
a	ECT Sensor 2	ECT Sensor 2 Inspection (1)	o
		ECT Sensor 2 Inspection (2)		o
b	External Circuit	TW2 [TW2_SENSOR], SG6 Circuit Inspection	o	o
c	PCM	PCM Inspection	o	o
