FTP Sensor Functional Inspection

Test Procedure

• Preparation
• • -

    FTP sensor: removed

• Procedure
• • Connect the connector (3P) to the FTP sensor.
  • Turn the vehicle to the ON mode.

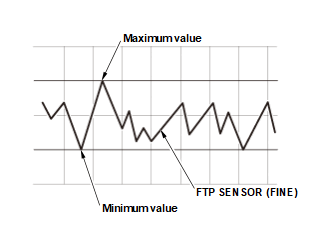

  • Confirm the HDS [FTP Sensor (Fine)].

Courtesy of HONDA, U.S.A., INC.

• Normal Conditions
• • -

    HDS [FTP Sensor (Fine)] does not vary 0.067 kPa (0.02 inHg, 0.5 mmHg) or more  within 3 seconds.

Results

• If it is abnormal, there is a problem with the FTP sensor.
