Inspection Outline

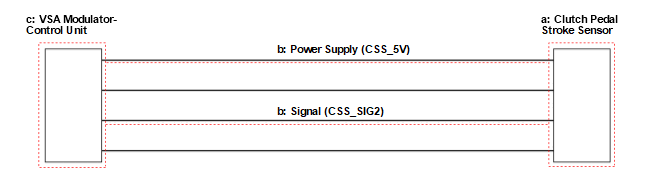

- The components to be tested are indicated by a dotted line.
| Inspection Items | Work Items | |
|---|---|---|
| a | Clutch Pedal Stroke Sensor | Clutch Pedal Stroke Sensor Inspection |
| b | External Circuit | CSS_SIG2, CSS_5V Shorted Wire Inspection |
| c | VSA Modulator-Control Unit | VSA Modulator-Control Unit Inspection |
