Inspection Outline

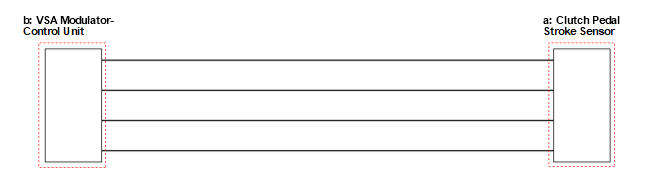

- The components to be tested are indicated by a dotted line.
- The illustration does not show all of the areas to be inspected.
- Troubleshoot any DTCs listed or indicated systems below first.
-
- -
Clutch Pedal Stroke Sensor [PGM-FI]: DTC P08B6 - Refer to: DTC P08B6 (2.0L Engine) (2024 2025) or DTC P08B6 (1.5L Engine) , P08B7 - Refer to: DTC P08B7 (1.5L Engine) or DTC P08B7 (2.0L Engine) (2024 2025)
- -
Clutch Pedal Stroke Sensor [VSA]: Go to the indicated DTC's troubleshooting .
- -
| Inspection Items | Work Items | |
|---|---|---|
| - | Clutch Pedal | Clutch Pedal Visual Inspection |
| a | Clutch Pedal Stroke Sensor | Clutch Pedal Stroke Sensor Inspection |
| b | VSA Modulator-Control Unit | VSA Modulator-Control Unit Inspection |
