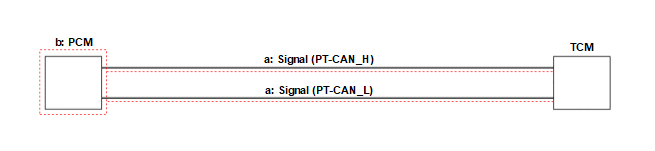

Inspection Outline
- The components to be tested are indicated by a dotted line.
- The illustration does not show all of the areas to be inspected.
| Inspection Items | Work Items | |
|---|---|---|
| - | CVT System | CVT System Communication Inspection |
| a | External Circuit | PT-CAN_H, PT-CAN_L Open Wire Inspection |
| b | PCM | PCM Inspection |
