Inspection Outline

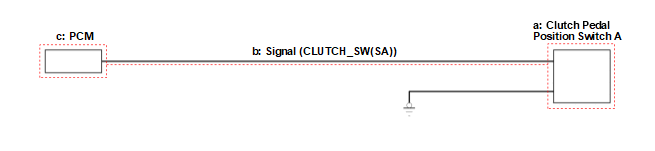

- The components to be tested are indicated by a dotted line.
| Inspection Items | Work Items | |
|---|---|---|
| a | Clutch Pedal Position Switch A | Clutch Pedal Position Switch A Visual Inspection |
| Do the Clutch Pedal Position Switch A Inspection | ||
| b | External Circuit | CLUTCH_SW (SA) Shorted Wire Inspection |
| c | PCM | PCM Inspection |
