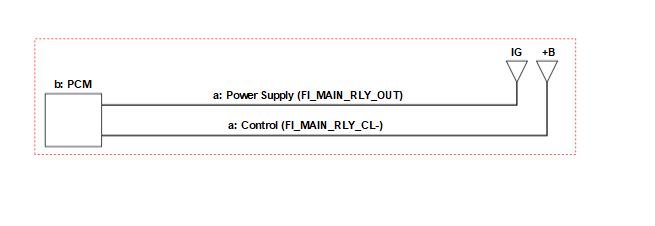

Inspection Outline
- The components to be tested are indicated by a dotted line.
- The illustration does not show all of the areas to be inspected.
| Inspection Items | Work Items | |
|---|---|---|
| - | PGM-FI Main Relay 1 | Do the PGM-FI Main Relay 1 Test |
| a | External Circuit | FI_MAIN_RLY_OUT, FI_MAIN_RLY_CL- Shorted Wire Inspection |
| b | PCM | PCM Inspection |
