DTC Advanced Diagnostics: P0831 (1.5L Engine)
DTC P0831: Clutch Pedal Position Switch A Circuit High Voltage
General Description

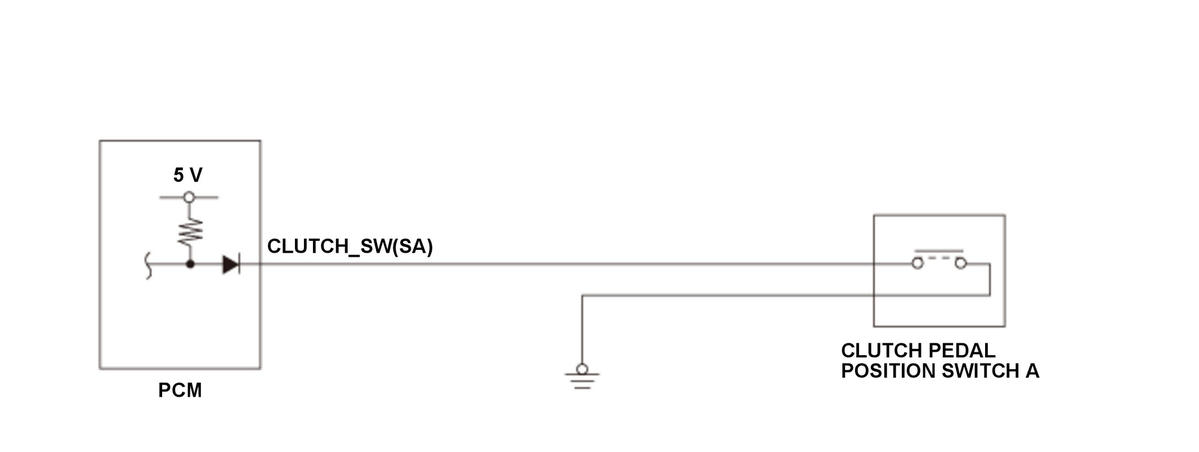

The powertrain control module (PCM) monitors the clutch pedal position switch A signal to switch the starting system from auto control mode to manual mode when it malfunctions. When the PCM cannot detect an OFF signal from clutch pedal position switch A while the clutch pedal is released, the detection continues after the vehicle is turned to the OFF (LOCK) mode. If the malfunction continues for a set time after the vehicle is turned to the OFF (LOCK) mode, the PCM detects a malfunction and stores a DTC.
Monitor Execution, Sequence, Duration, DTC Type
| Execution | Once per driving cycle |
| Sequence | None |
| Duration | 5 minutes or more |
| DTC Type | One drive cycle, MIL off |
Enable Conditions
| Condition | Minimum | Maximum |
|---|---|---|
| Engine speed [Engine Speed] | 1, 000 rpm | - |
| Vehicle speed [Vehicle Speed] | 19 mph (30 km/h) | - |
| Other | Malfunction judgment executes after the vehicle is turned to the OFF (LOCK) mode if PCM cannot detect OFF signal from clutch pedal position switch A while clutch pedal is released under above conditions | |
[ ]: HDS Parameter
Malfunction Threshold
The PCM cannot detect an OFF signal from clutch pedal position switch A for at least 5 minutes after the vehicle is turned to the OFF (LOCK) mode.
Possible Cause
The causes shown may not be a complete list of all potential problems, and it is possible that there may be other causes.
- Clutch pedal position switch A ON failure
- Clutch pedal position switch A CLUTCH_SW(SA) line short to ground
Diagnosis Details
Conditions for setting the DTC
When a malfunction is detected, a Pending DTC, a Confirmed DTC, the freeze data, and the on-board snapshot are stored in the PCM memory. The MIL does not come on.
Conditions for clearing the DTC
The Pending DTC, the Confirmed DTC, the freeze data, and the on-board snapshot can be cleared with the scan tool clear command.
