DTC Advanced Diagnostics: P0651 (1.5L Engine, PGM-FI System)
DTC P0651: Sensor Reference Voltage B Malfunction
General Description

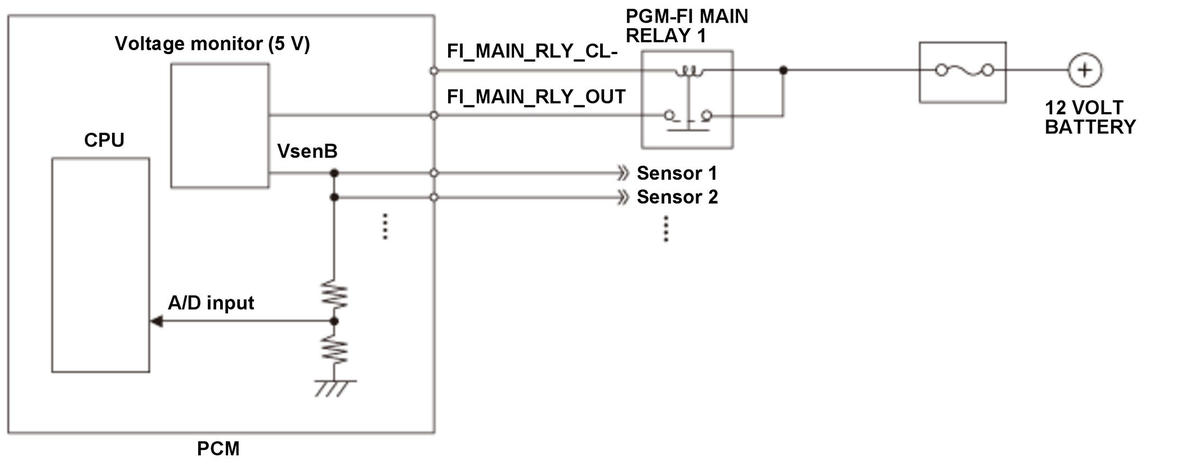

The powertrain control module (PCM) is equipped with a voltage monitor (5 V power source) to supply a stable 5 V to each sensor as reference voltage. The correct voltage for the sensors are loaded in the CPU of the PCM (A/D input) and when the sensor power voltage is a set value (high or low) for a certain time, the PCM detects a malfunction and stores a DTC.
Monitor Execution, Sequence, Duration, DTC Type
| Execution | Continuous |
| Sequence | None |
| Duration | 2.0 seconds or more |
| DTC Type | One drive cycle, MIL on |
Enable Conditions
| Condition | |
|---|---|
| Vehicle | ON mode |
Malfunction Threshold
The sensor power voltage is 6.00 V or more, or 3.99 V or less, for at least 2.0 seconds.
Possible Cause
The causes shown may not be a complete list of all potential problems, and it is possible that there may be other causes.
- A/C pressure sensor VCC6 line short to power
- Accelerator pedal position (APP) sensor VCC5 line short to power
- Turbocharger VCC2 line short to power
- Turbocharger boost sensor VCC2 line short to power
- Camshaft position (CMP) sensor A VCC2 line short to power
- Mass airflow (MAF) sensor/intake air temperature (IAT) sensor 1 VCC2 line short to power
- Rocker arm oil pressure sensor VCC2 line short to power
- Engine oil pressure sensor VCC2 line short to power
- Fuel tank pressure (FTP) sensor VCC6 line short to power* 1
- A/C pressure sensor VCC6 line short to ground
- APP sensor VCC5 line short to ground
- Turbocharger VCC2 line short to ground
- Turbocharger boost sensor VCC2 line short to ground
- CMP sensor A VCC2 line short to ground
- MAF sensor/IAT sensor 1 VCC2 line short to ground
- Rocker arm oil pressure sensor VCC2 line short to ground
- Engine oil pressure sensor VCC2 line short to ground
- FTP sensor VCC6 line short to ground* 1
- PCM internal circuit failure
*1: USA/Canada models
Diagnosis Details
Conditions for setting the DTC
When a malfunction is detected, the MIL comes on and a Pending DTC, a Confirmed DTC, the freeze data, and the on-board snapshot are stored in the PCM memory.
Conditions for clearing the DTC
The MIL is cleared if the malfunction does not return in three consecutive trips in which the diagnostic runs. The MIL, the Pending DTC, the Confirmed DTC, the freeze data, and the on-board snapshot can be cleared with the scan tool clear command.
