DTC Advanced Diagnostics: P0522, P0523 (1.5L Engine)
DTC P0522: Engine Oil Pressure Sensor Circuit Low Voltage DTC P0523: Engine Oil Pressure Sensor Circuit High Voltage

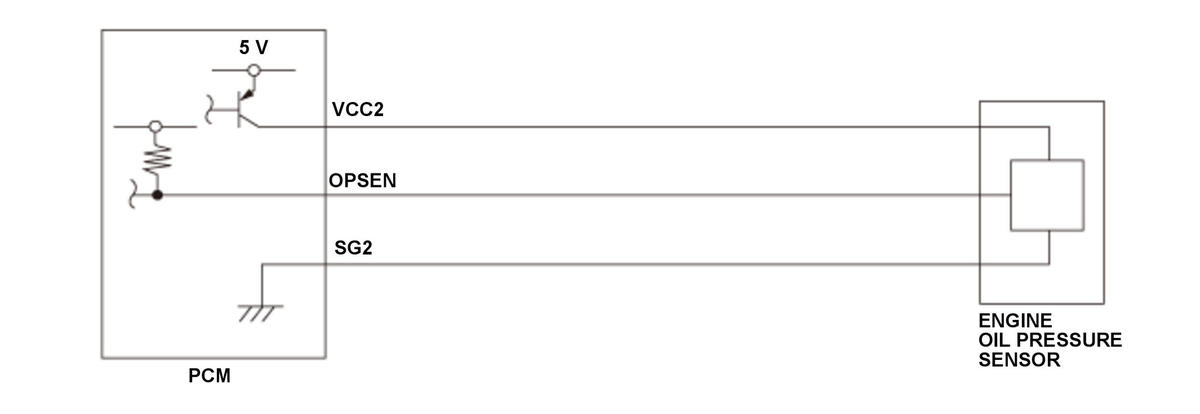

General Description
The engine oil pressure sensor detects engine oil pressure in the system. When the voltage from the engine oil pressure sensor is a set value for a specified time, the powertrain control module (PCM) detects a malfunction and stores a DTC.
Monitor Execution, Sequence, Duration, DTC Type
| Execution | Continuous |
| Sequence | None |
| Duration | 2.0 seconds or more |
| DTC Type | Two drive cycles, MIL off |
Enable Conditions
DTC: P0522
| Condition | Minimum | Maximum |
|---|---|---|
| Barometric pressure [Baro Sensor] | 70 kPa (520 mmHg, 20.5 inHg) | - |
DTC: P0523
| Condition | Minimum | Maximum |
|---|---|---|
| Engine coolant temperature [ECT Sensor 1] | 104 deg.F (40 deg.C) | - |
| Engine speed [Engine Speed] | - | 6, 000 rpm |
[ ]: HDS Parameter
Malfunction Threshold
DTC: P0522
The engine oil pressure sensor output voltage [Rocker Arm Oil Pressure (EOP) Sensor Voltage] is 0.18 V or less for at least 2 seconds.
DTC: P0523
The engine oil pressure sensor output voltage [Rocker Arm Oil Pressure (EOP) Sensor Voltage] is 4.79 V or more for at least 2.0 seconds.
Possible Cause
The causes shown may not be a complete list of all potential problems, and it is possible that there may be other causes.
DTC: P0522
- Engine oil pressure sensor VCC2 line open
- Engine oil pressure sensor OPSEN line short to ground
DTC: P0523
- Engine oil pressure sensor OPSEN line open
- Engine oil pressure sensor SG2 line open
Common
- Engine oil pressure sensor failure
- PCM internal circuit failure
Diagnosis Details
Conditions for setting the DTC
When a malfunction is detected during the first drive cycle, a Pending DTC is stored in the PCM memory. If the malfunction returns in the next (second) drive cycle, a Confirmed DTC, the freeze data, and the on-board snapshot are stored. The MIL does not come on.
Conditions for clearing the DTC
The Pending DTC, the Confirmed DTC, the freeze data, and the on-board snapshot can be cleared with the scan tool clear command.
