DTC Advanced Diagnostics: P050D (1.5L Engine) (2025)
DTC P050D : Cold Start Idle Speed Problem
General Description

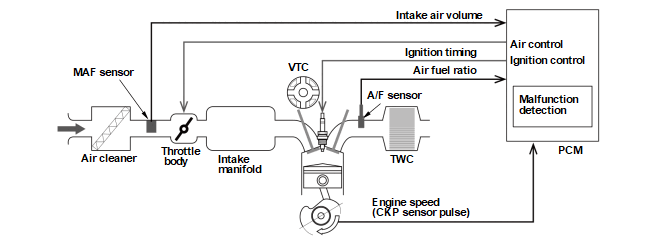

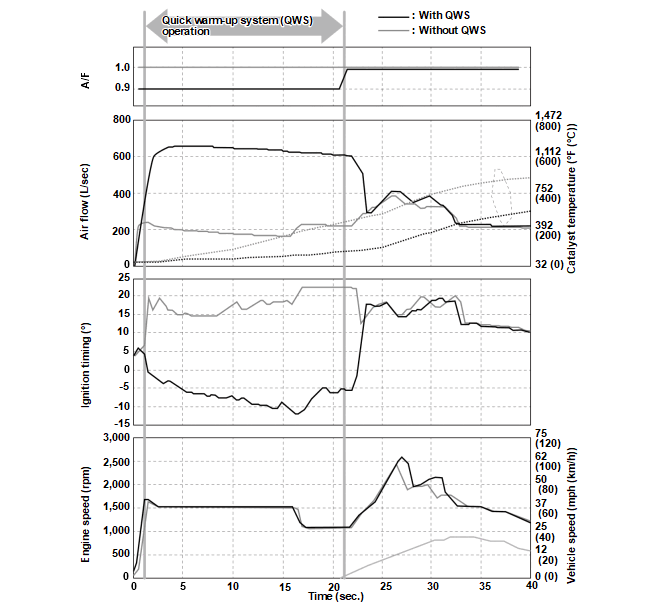

The quick warm-up system increases air flow and retards ignition timing to accelerate the warm-up of the catalyst on cold engine start. If the actual engine speed is insufficient or excessive compared to the target engine speed, the powertrain control module (PCM) detects a malfunction and stores a DTC.
Monitor Execution, Sequence, Duration, DTC Type
| Execution | Continuous |
| Sequence | None |
| Duration | 10 seconds or more |
| DTC Type | Two drive cycles, MIL on |
Enable Conditions
| Condition | Minimum | Maximum |
|---|---|---|
| Duration of quick warm-up system operation after engine start-up* 1 | - | 55 seconds |
| Duration of quick warm-up system operation after engine start-up* 2 | - | 40 seconds |
| Engine coolant temperature [ECT Sensor 1] | - | 95 deg.F (35 deg.C) |
| Throttle valve | Fully closed | |
| Accelerator pedal position | Released | |
| Other | Vehicle stopped | |
*1: CVT
*2: M/T
[ ]: HDS Parameter
Malfunction Threshold

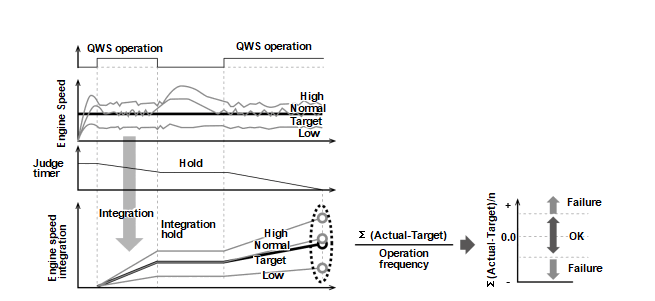

The average of difference between the actual engine speed and the target engine speed is 700 rpm or more, or -650 rpm or less.
Possible Cause
The causes shown may not be a complete list of all potential problems, and it is possible that there may be other causes.
- Intake air duct breakage
- Intake air duct misinstalled
- Air cleaner breakage
- Air cleaner damage
- Air cleaner clogged
- Throttle body clogged
- Intake air system clogged
- Mass airflow (MAF) sensor failure
- Intake air temperature (IAT) sensor 1 failure
- Engine coolant temperature (ECT) sensor 1 failure
- Air fuel ratio too rich
- Air fuel ratio too lean
- Ignition system failure
Confirmation Procedure
Operating Condition
- Leave the vehicle until the engine coolant temperature [ECT Sensor 1] lowers to 95 deg.F (35 deg.C) or less.
- Start the engine, and let it idle for at least 10 seconds.
Diagnosis Details
Conditions for setting the DTC
When a malfunction is detected during the first drive cycle, a Pending DTC is stored in the PCM memory. If the malfunction returns in the next (second) drive cycle, the MIL comes on and a Confirmed DTC, the freeze data, and the on-board snapshot are stored.
Conditions for clearing the DTC
The MIL is cleared if the malfunction does not return in three consecutive trips in which the diagnostic runs. The MIL, the Pending DTC, the Confirmed DTC, the freeze data, and the on-board snapshot can be cleared with the scan tool clear command or by disconnecting the 12 volt battery.
